Description

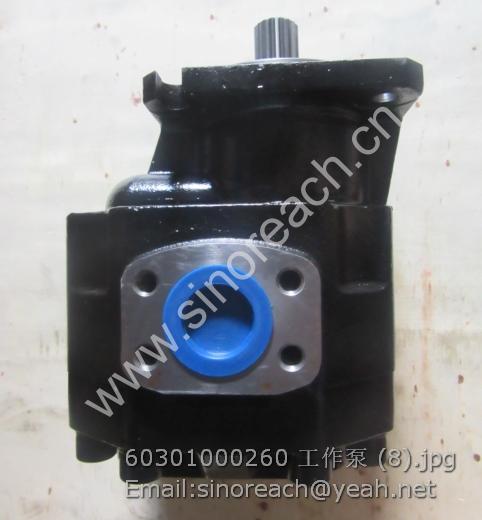

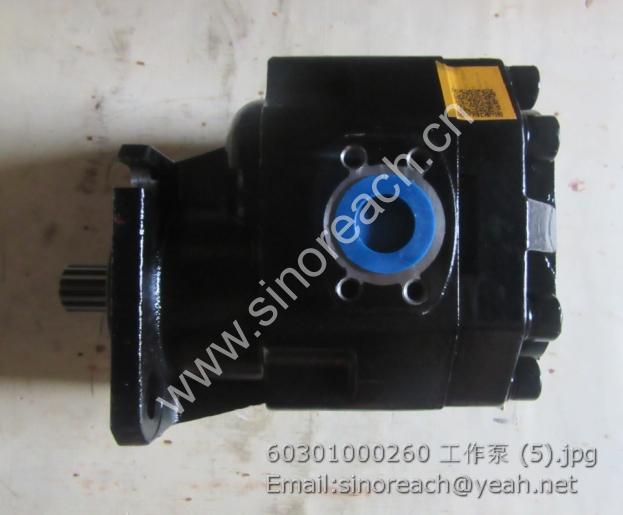

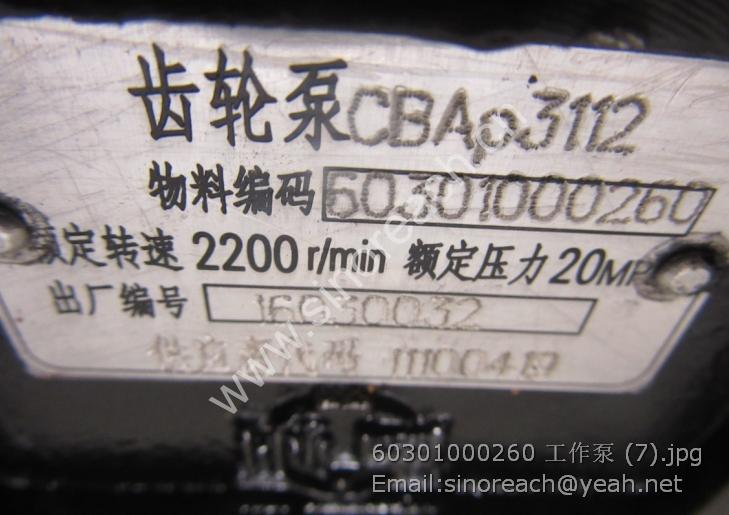

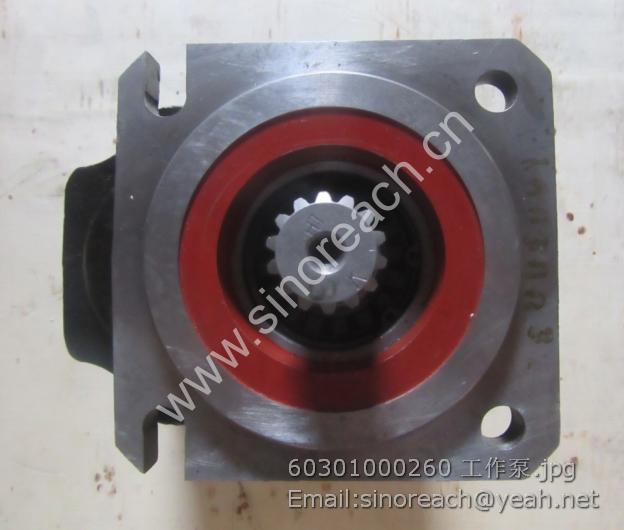

GEAR PUMP CBAK3112 60301000260 LG833B.06VI.01.01 For lonking CDM833N CDM835EV
| 1 | LG855.01704-704A | 扶手总成 | Arm rail assembly | 1 | |
| 2 | GB/T93 | 垫圈 16 | Washer 16 | 11 | |
| 3 | GB/T97.1 | 垫圈 16 | Washer 16 | 11 | |
| 4 | GB/T5783 | 螺栓 M16×20 | Bolt M16×20 | 8 | |
| 5 | LG855.07501-501A | 机油箱体 | Hydraulic oil tank body | 1 | LG855.13.09 |
| 6 | LG50G.07524-525B | 侧面扶手 | Side arm rail | 2 | |
| 7 | YB-M42×1.5 | 圆形油标 | Dip stick | 2 | |
| 8 | 507529C | 销轴 | Pin | 2 | |
| 9 | GB/T91 | 开口销Ф4×40 | Cotter pin Ф4×40 | 2 | |
| 10 | GB/T5783 | 螺栓 M10×25 | Bolt M10×25 | 6 | |
| 11 | 507526C-Ⅱ | 堵头 | Plug | 1 | |
| 12 | 507527-527-Ⅱ | 放油盖 | Drain cover | 1 | |
| 13 | 407505B | 垫片 | Washer | 1 | |
| 14 | LG50G.07528A | 磁铁Ф80×40 | Magnet Ф80×40 | 1 | |
| 15 | 507523C | 垫片 | Washer | 2 | |
| 16 | 507512-513C | 吸油口 | Suction port | 1 | |
| 17 | GB/T93 | 垫圈 10 | Washer 10 | 18 | |
| 18 | GB/T5783 | 螺栓 M10×25 | Bolt M10×25 | 18 | |
| 19 | GB/T5783 | 螺栓 M16×40 | Bolt M16×40 | 3 | |
| 20 | 507521-523C | 回油法兰 | Oil return flange | 1 | |
| 21 | LG50F-1000×120-H | 回油滤清器 | Oil return filter | 1 | |
| 22 | GB/T5783 | 螺栓 M8×20 | Bolt M8×20 | 4 | |
| 23 | QL-10C | 空气滤清器 | Air cleaner | 1 | |
| 24 | 507525-528C | 垫片 | Washer | 2 | |
| 25 | 507524C | 法兰盖 | Flange cover | 2 |
| 26 | GB/T5783 | 螺栓M8×20 | Bolt M8×20 | ||
| 27 | GB/T95 | 垫圈 8 | Washer 8 | 4 | |
| 28 | GB/T93 | 垫圈 8 | Washer 8 | 4 | |
| 29 | LG50F-1000×120-J | 吸油滤清器 | Oil suction filter | 1 |
| 1 | GB/T91 | 开口销 | Cotter pin | 1 | |
| 2 | O型圈 | O-ring | 1 | ||
| 3 | 活塞 | Piston | 1 | ||
| 4 | D180×20×2.5 | 支承环 | Supporting ring | 2 | |
| 5 | HJD180 | 格来圈 | Glyd Ring | 1 | |
| 6 | 槽形螺母 | Castle nut | 1 | ||
| 7 | 缸体 | Cylinder body | 1 | ||
| 8 | GB/T893.1 | 弹性挡圈Ф75 | Elastic collarФ75 | 2 | |
| 9 | GB/T9163 | 关节轴承GE70ES | Joint bearing GE70ES | 1 | |
| 10 | GB/T1235-76 | O型圈 Ф180×5.7 | O-RINGФ180×5.7 | 1 | |
| 11 | 导向套 | Guide sleeve | 1 | ||
| 12 | GB/T93 | 垫圈 16 | Washer 16 | 12 | |
| 13 | GB/T5783 | 螺栓 M16×50 | Bolt M16×50 | 12 | |
| 14 | HJY100 | 支承环 | Supporting ring | 2 | |
| 15 | HJZ100 | 组合密封圈 | Step seal | 1 | |
| 16 | Y型密封圈 | Y-ring | 1 | ||
| 17 | 防尘圈 | Dust ring | 1 | ||
| 18 | 活塞杆 | Piston rod | 1 | ||
| 19 | GB/T91 | 螺钉 M8×35 | Screw M8×35 | 1 | |
| 20 | 双耳环 | Eyes | 1 |
