Description

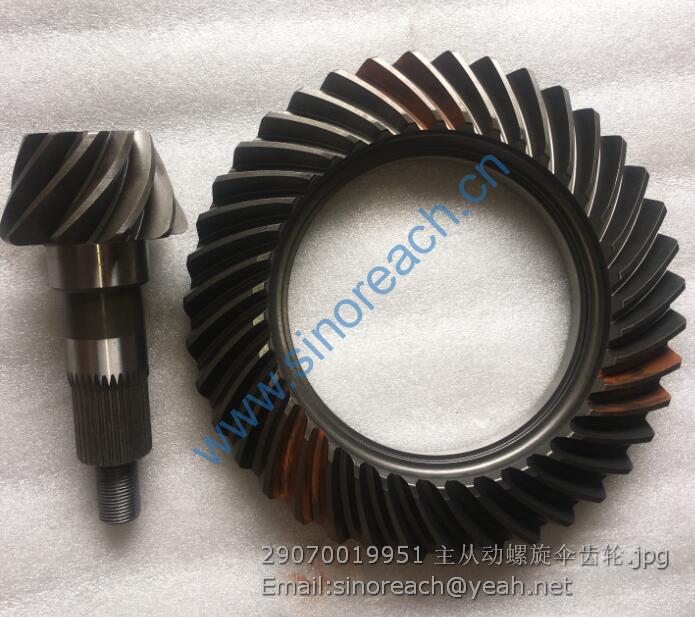

Front Alxe Bevel Gear Assy,Driving Gear,Driven Gear
29070019951
29070020061
29070020071

1 7200001775 档位选择器0501209951 STEP SELECTOR 0501209951 Y 1
2 7200001776 连接电缆组件6029204859 CABLE ASSEMBLY 6029204859 Y 1
3 4110000042010 插座6029 199 005 PLUG 6029 199 005 Y 1
4 7200000559 滤清器0750131053 FILTER 0750131053 Y 2
5 7200001779 接头螺帽0737843077 JOINT NUT 0737843077 Y 2
6 4110000042003 O形圈0634303283 O-RING 0634303283 Y 2
7 4110000042106 控制器6009 054 631 CONTROL UNIT 6009 054 631 Y 1
8 7200001929 六角螺母0637011539 NUT 0637011539 Y 8
9 4110000042115 锁紧螺母M14*1.5 0637 011 540 LOCKING NUT M14*1.5 0637 011 540 Y 8 1 4013000078 螺母GB6173-M10*1EpZn-05 NUT GB6173-M10*1EpZn-05 N 1
2 29070000051 透气管 BREATHER PIPE Y 1
3 4120000080 螺塞Q/ZB286-ZG3/4″-Q235A PLUG Q/ZB286-ZG3/4″-Q235A Y 2
4 29070000111 螺栓 BOLT Y 8
5 4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn N 36
6 29070000101 螺栓 BOLT Y 16
7 29070000071 制动盘 BRAKE PLATE Y 2
8 29070010911 轮边减速器 FINAL DRIVE ASSEMBLY（FRONT AXLE） N 1
9 4190000237 轮辋LG19.50/2.5-25 RIM Y 2
10 4110000006 轮胎GB2980-23.5-25 TIRE ASSEMBLY Y 2
11 4011000130 螺栓GB5786-M20*1.5*50EpZn-8.8 BOLT GB5786-M20*1.5*50EpZn-8.8 N 20
12 4120001739 制动钳 DISK BRAKE Y 1
13 4120001740 放气嘴 VENT NOZZLE Y 8
14 4013000064 螺母GB889.2-M30*2EpZn-8 LOCKING NUT GB889.2-M30*2-8 N 8
15 4044000111 标牌 LGB402-D/A501A FRONT AXLE BRAND Y 1
16 4019000012 铆钉GB827-3*5-BL2 RIVET GB827-3*5-BL2 N 4
17 29070000061 前主传动 FRONT AXLE MAIN DRIVE Y 1
18 29070000041 前桥壳总成 FRONT AXLE HOUSING Y 1

19 29070010901 A501A前驱动桥总成 A501A FRONT AXLE ASSEMBLY Y 1
