Description

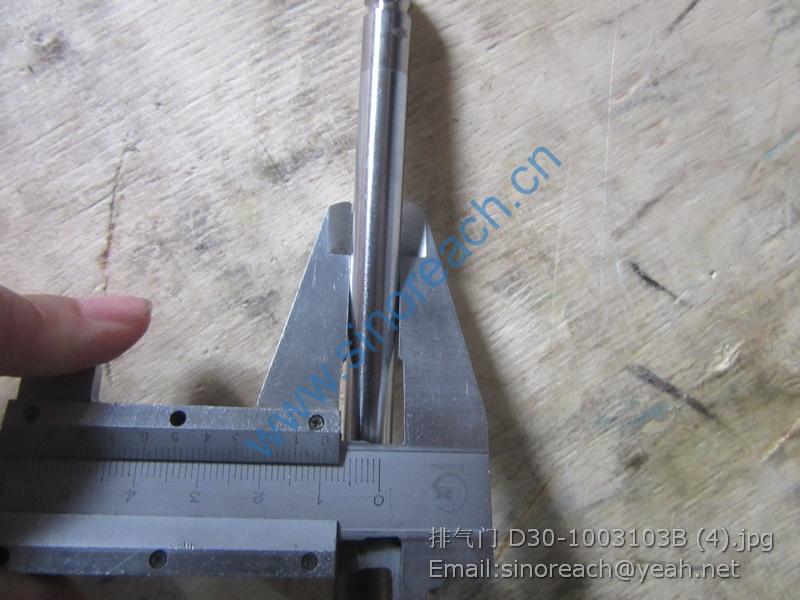

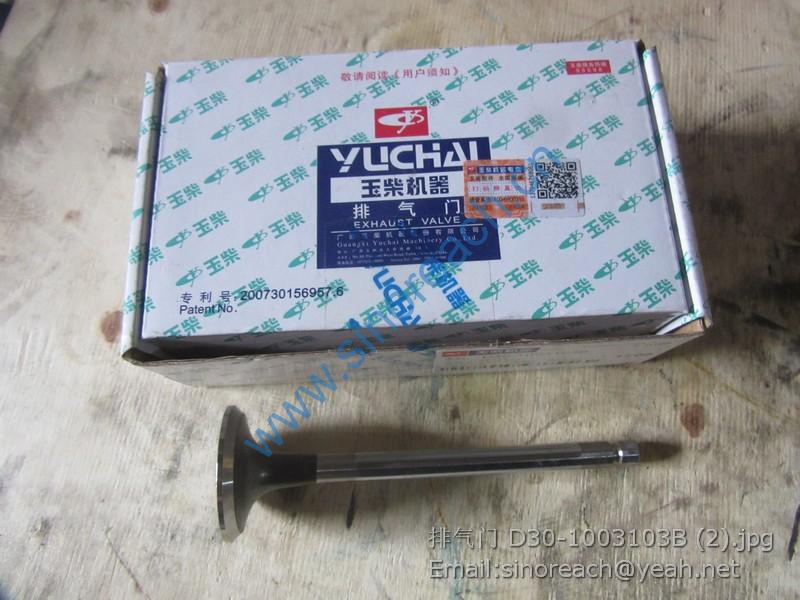

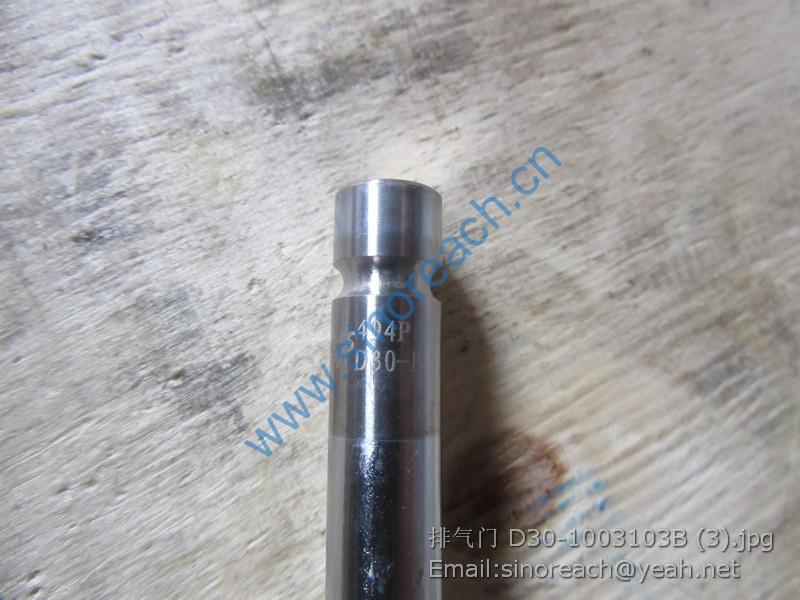

EXHAUST VALVE 4110000561210 4110000560144 D30-1003103B SDLG

1 4110000518002 螺母01580-00806 M8 Nut Y 24
2 4110000084130 垫圈8 01602-20825 Washer Y 46
3 4110000011112 罩轮YB315Z5-02A Cover Y 1
4 4021000018 滚动轴承GB276-6210 Ball bearing Y 1
5 4110000011111 涡轮组YJSW315-6C-10000 Turbine Y 1
6 4110000518004 挡圈04064-08530 85 Retaining ring Y 1
7 4110000011095 导轮YJSW315-6C-00001 Stator Y 1
8 4110002525001 螺栓01010-80835 M8*35 Screw Y 38
9 4110000011094 压紧垫片YB315Z5-22A Washer Y 1
10 4021000076 滚动轴承GB276-6017 Ball bearing Y 2
11 4110000011092 泵轮YJSW315-6C-00002 Impeller Y 1
12 4110002525002 齿轮YB315Z5-11BL Gear Y 1
13 4110002525003 螺栓01010-80816 M8*16 Screw Y 8
14 4110000960004 螺栓01010-81230 Screw Y 6
15 4110000011088 垫板YB315Z5-06D Spacer Y 1
16 4110002521001 铭牌YJSW315-6C-BP Name plate N 1
17 4110000011089 胶垫YB315Z5-07D Gasket Y 1
18 4110000011083 密封环YB315Z5-12A Sealing ring Y 1
19 4110000011082 密封环YB315Z5-33 Sealing ring Y 1
20 4110002525005 导轮座YB315Z5-13D Seat Y 1
21 4110000004001 弹性垫圈01602-21030 Retaining ring Y 9
22 4011000663 螺栓GB21-M10*25EpZn-8.8 Bolt Y 9
23 4110000011100 阀盖YB315Z5-17A Bracket Y 1
24 4110000011101 弹簧YB315Z5-18A Spring Y 1
25 4110000160054 垫圈01602-21236 Gasket Y 6
26 4110000011116 圆垫板YB315Z5-04 Shim Y 1
27 4110000011103 阀杆YB315Z5-26A Valve rod Y 2
28 4110000011105 压板YB315Z5-19A Anchor plate Y 1
29 4110000011106 弹簧YB315Z5-20 Spring Y 1
30 4110002524001 壳体YB315Z5-08D-04 Housing Y 1
