Description

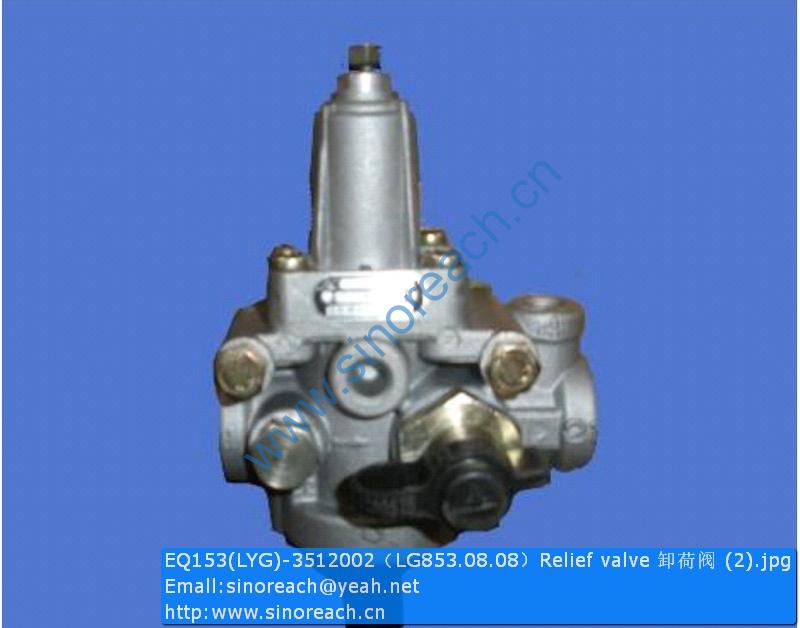

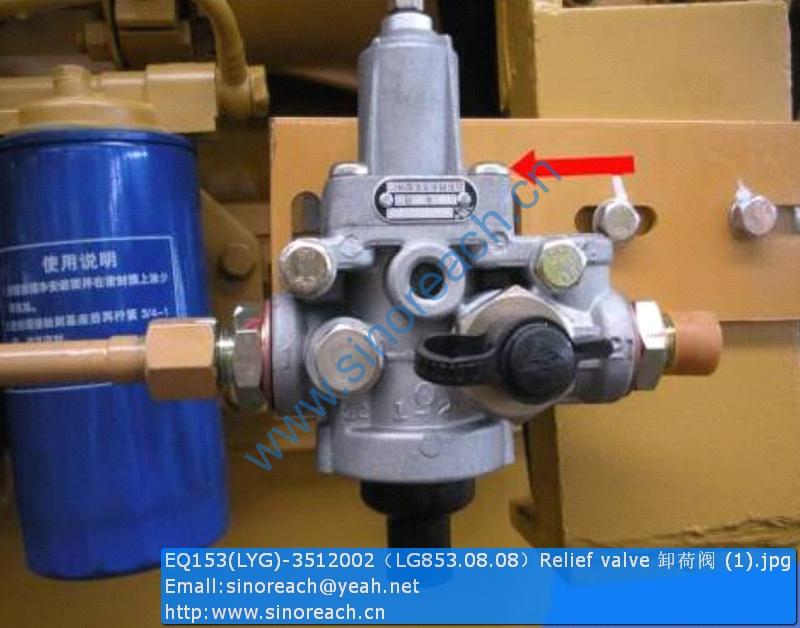

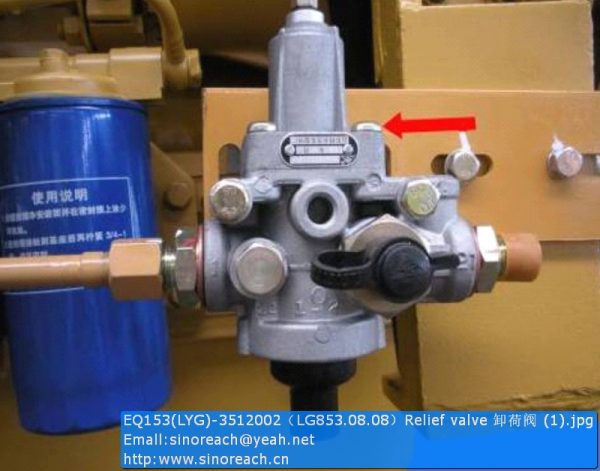

EQ153(LYG)-3512002 LG853.08.08 Relief valve CDM833 CDM835 CDM843 CDM853 CDM855 CDM855E parts

1 GB5783-86 螺栓M12×40 Bolt M12×40 6
2 GB93-87 垫圈12 Washer 12 16
3 WZ30-25.12.11 固定板销轴 Shaft End Retaining Plate 1
4 GB1152-89 油杯M10×1 Oil Cup M10×1 10
5 WZ30-25.12-22 停车连杆 Stopping Linkage 1
6 GB91-86 开口销5×36 Pin 5×36 2
7 WZ30-25.12.10 固定板销轴 Shaft End Retaining Plate 1
8 GB5783-86 螺栓M12×25 Bolt M12×25 8
9 WZ30-25.12.7 固定板销轴 Shaft End Retaining Plate 2
10 GB6171-86 螺母M20×2 Nut M20×2 16
11 GB93-87 垫圈20 Washer 20 8
12 WZ30-25.12.3 悬架 Suspension Frame 1
13 GB5785-86 螺栓M20×130 Bolt M20×130 8
14 WZ30-25.12.3-8 轴套 Shaft Sleeve 2
15 WZ30-25.12.5 固定板销轴 Shaft End Retaining Plate 2
16 GB5783-86 螺栓M6×16 Bolt M6×16 6
17 GB93-87 垫圈6 Washer 6 6
18 WZ30-25.12-4 压盖 Cover 2
19 WZ30-25.12-2 铜套 Shaft Sleeve 4
20 GB5782-86 螺栓M16×55 Bolt M16×55 4
21 WZ30-25.12.9 压盖 Cover 2
22 GB93-87 垫圈16 Washer 16 4
23 GB6170-86 螺母M16 Nut M16 4
24 GB5783-86 螺栓M10×30 Bolt M10×30 12
25 GB93-87 垫圈10 Washer 10 12
26 WZ30-25.12.12 固定板销轴 Shaft End Retaining Plate 2
27 WZ30-25.12-12 止推垫圈 Washer 4
28 WZ30-25.12-13 轴承 Bearing 2
29 WZ30-25.12.2 后机架 Rear Frame 1
30 WZ30-25.12-25 轴套 Shaft Sleeve 2
31 WZ30-25.12.6.2 撑脚 Bottom Seat 2
32 Gb91-86 开口销8×50 Pin 8×50 2
33 WZ30-25.12.6.3 固定板销轴 Shaft End Retaining Plate 2
34 GB95-85 垫圈12 Washer 12 6
35 WZ30-25.12.6-1 销轴 Shaft 2
36 WZ30-25.12.6.1 支腿 Supporting Frame 2
37 WZ30-25.12.6-2 轴套 Shaft Sleeve 2
38 WZ30-25.12.15 固定板销轴 Shaft End Retaining Plate 2
39 WZ30-25.12.16 固定板销轴 Shaft End Retaining Plate 2

1 GB1152-89 油杯 Oil Cup 4
2 GB6172-86 螺母M18 Mut M18 4
3 WZ30-25.12.4.2 接管 Connecting pipe 2
4 ZL30G.12.5-1 管夹 Pipe Clip 2
5 GB93-87 垫圈8 Washer 6 2
6 GB5783-86 螺栓M8×25 Bolt M8×25 2
7 JB982-77 组合垫圈10 Washer 10 8
8 ZL50G.12.8-1 接头 Connector 4
9 WZ30-25.12.4.1 接管 Connecting pipe 2
