Description

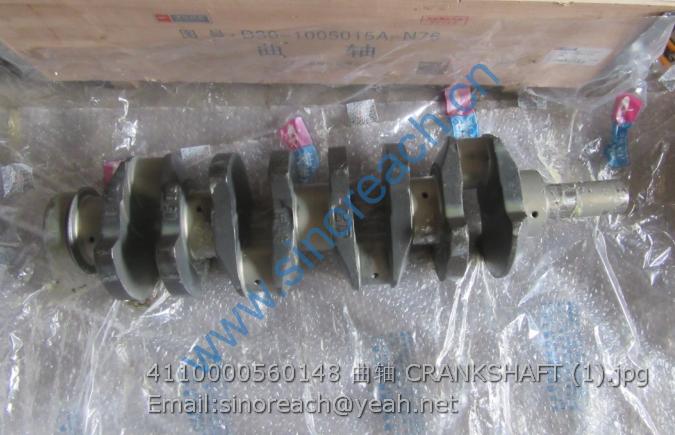

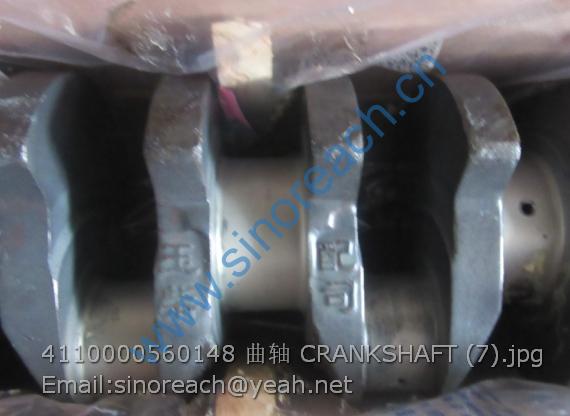

D30-1005015A-N76 yuchai CRANKSHAFT 4110000560148 D30-1005015A-911
1 4110000560029 曲轴皮带轮紧固螺栓430-1005052E
TIGHTENING BOLT OF CRANKSHAFT BELT PULLEY
430-1005052E
Y 1
2 4110000560043 曲轴头垫片 I 530-1005018B CRANKSHAFT END GASKET I 530-1005018B Y 1
3 4110000560151 皮带轮减震器总成D30-1005030A
BELT PULLEY VIBRATION DAMPER ASSEMBLY
D30-1005030A
Y 1
4 4110000560042 皮带轮隔套530-1005017 A BELT PULLEY SPACER SLEEVE 530-1005017 A Y 1
5 4110000560044 垫片530-1005024 WASHER 530-1005024 Y 1
6 4110000560338 O 形圈 2.65×43.7 YC208-B04370F O-RING 2.65×43.7 YC208-B04370F N 1
7 4110000560149 机油泵驱动齿轮D30-1005022 OIL PUMP DRIVING GEAR D30-1005022 Y 1
8 4110000560150 隔套D30-1005023 SPACER SLEEVE D30-1005023 Y 1
9 4110000560059 曲轴正时齿轮6105Q-1005021 CRANKSHAFT TIMING GEAR 6105Q-1005021 Y 1
10 4110000560222 键 C12×32 GB/T1096-C1232 KEY C12×32 GB/T1096-C1232 Y 1
11 4110000560327 键 12×45 Q5511245 KEY 12×45 Q5511245 N 1
12 4110000108012 上轴瓦（窄）D30-1005054-玉柴 BEARING SHELL D30-1005054 N 4
13 4110000108013 下轴瓦（窄）D30-1005055-玉柴 BEARING SHELL D30-1005055 N 4
14 4110000108014 上轴瓦（宽）D30-1005056A-玉柴 BEARING SHELL D30-1005056A N 1
15 4110000560060 曲轴止推片6105Q-1005058A CRANKSHAFT THRUST PLATE 6105Q-1005058A Y 4
16 4110000108015 下轴瓦（宽）D30-1005057-玉柴 BEARING SHELL D30-1005057 N 1
17 4110000560148 曲轴D30-1005015A CRANKSHAFT D30-1005015A Y 1
18 4110000560346 圆柱销YC24-B1226 PIN YC24-B1226 N 1
19 4110000560283 螺栓 M8×25 Q1840825TF2 BOLT M8×25 Q1840825TF2 N 4
20 4110000560108 附加皮带轮D0132-1005016 ADDITIONAL BELT PULLEY D0132-1005016 Y 1
1 4110000560280 螺栓 M12×38 Q150B1238TF2 BOLT M12×38 Q150B1238TF2 N 1
2 4110000560320 垫圈12 Q40312 WASHER Q40312 N 1
3 4110000560085 垫圈630-1006019 WASHER 630-1006019 Y 1
4 4110000560154 凸轮轴正时齿轮D30-1006021 CAMSHAFT TIMING GEAR D30-1006021 Y 1
5 4110000560221 键 C8×28 GB/T1096-C0828 KEY C8×28 GB/T1096-C0828 Y 1
6 4110000560152 凸轮轴D30-1006001 CAMSHAFT D30-1006001 Y 1
7 4110000560234 螺栓 M8×20 Q/YC1820820TF2 BOLT M8×20 Q/YC1820820TF2 N 1
8 4110000560305 停用-垫圈 8 Q40308 WASHER 8 Q40308 N 2
9 4110000560153 凸轮轴止推片D30-1006016 CAMSHAFT THRUST PLATE D30-1006016 Y 2
10 4110000561085 隔圈-凸轮轴正时齿轮6105Q-1006017 SPACER-CAMSHAFT TIMING GEAT 6105Q-1006017 Y 1
1 4110000560226 进气门摇臂衬套J3100-1007144 INTAKE VALVE ROCKER ARM SLEEVE J3100-1007144 N 8
2 4110000560225 进气门摇臂J3100-1007143 INTAKE VALVE ROCKER ARM J3100-1007143 N 4
3 4110000560083 气门调整螺钉6105QA-1007053 VALVE ADJUSTING BOLT 6105QA-1007053 Y 8
4 4110000560063 锁紧螺母6105Q-1007054 LOCK NUT 6105Q-1007054 Y 4
5 4110000560158 六角头螺栓D30-1007036 HEXAGONAL BOLT D30-1007036 Y 4
6 4110000560101 垫圈A30-1007092 WASHER A30-1007092 Y 3
7 4110000560156 摇臂轴座（二）D30-1007033 ROCKER ARM SHAFT SEAT（二） D30-1007033 N 8
8 4110000560227 排气门摇臂J3100-1007153 EXHAUST VALVE ROCKER ARM J3100-1007153 N 4
9 4110000560080 摇臂轴垫圈6105QA-1007031 ROCKER SHAFT WASHER 6105QA-1007031 Y 6
10 4110000560081 气门摇臂轴弹簧6105QA-1007032 ROCKER SHAFT SPRING 6105QA-1007032 Y 3
11 4110000560155 摇臂轴垫圈D30-1007031 ROCKER SHAFT WASHER D30-1007031 Y 2
12 4110000560161 推杆D30-1007002 PUSH ROD D30-1007002 Y 8
13 4110000560065 挺杆D30-1007001 TAPPET D30-1007001 Y 8
14 4110000560145 进气门D30-1003111B INTAKE VALVE D30-1003111B Y 4
15 4110000560032 进气门座430-1007019 INTAKE VALVE SEAT 430-1007019 Y 4
16 4110000560061 气门外弹簧6105Q-1007022 VALVE OUTER SPRING 6105Q-1007022 Y 8
17 4110000560062 气门内弹簧6105Q-1007023 VALVE INNER SPRING 6105Q-1007023 Y 8
18 4110000560031 气门导管430-1007018 VALVE GUIDE PIPE 430-1007018 Y 8
19 4110000560030 气门杆油封430-1007016A VALVE STEM OIL SEAL 430-1007016A Y 8
20 4110000560146 气门弹簧上座D30-1003116 VALVE SPRING UPPER SEAT D30-1003116 Y 8
21 4110000560012 气门锁夹150-1007021E VALVE LOCK CLAMP 150-1007021E Y 16
22 4110000560144 排气门D30-1003103B EXHAUST VALVE D30-1003103B Y 4
23 4110000560033 排气门座430-1007021 EXHAUST VALVE SEAT 430-1007021 Y 4
24 4110000560064 接头螺栓6105Q-1007073 JOINT BOLT 6105Q-1007073 Y 2
25 4110000560232 复合式密封垫圈8 Q/YC149-8 COMPOUND SEAL RING 8 Q/YC149-8 N 4
26 4110000560159 油管焊接件D30-1007075A OIL PIPE WELDMENT D30-1007075A Y 1
27 4110000560157 摇臂轴座（一）D30-1007034 ROCKER ARM SHAFT SEAT(Ⅰ) D30-1007034 N 1
28 4110000560162 摇臂轴D30-1007101 ROCKER ARM SHAFT D30-1007101 N 1
29 4110000560324 挡圈 25 Q43125 RETAINING RING 25 Q43125 N 2
30 4110000560082 碗形塞片6105QA-1007042 BOWL- STYLE PLUG 6105QA-1007042 Y 2
