Description

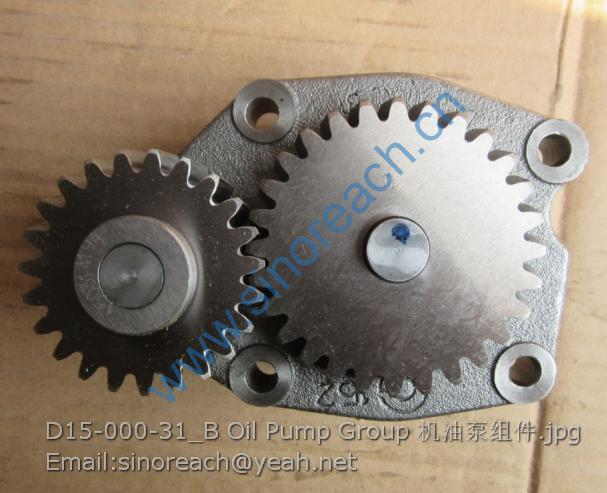

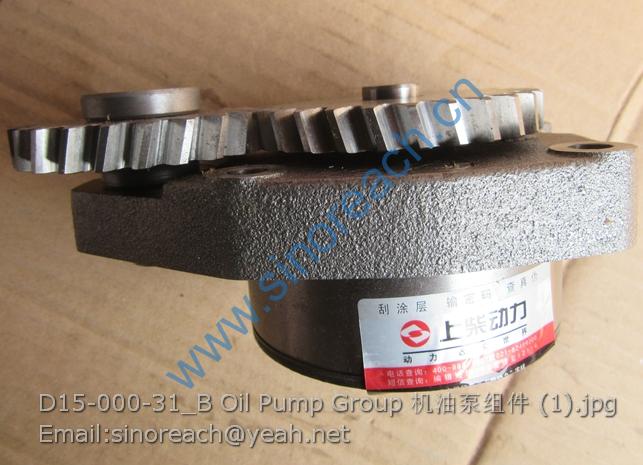

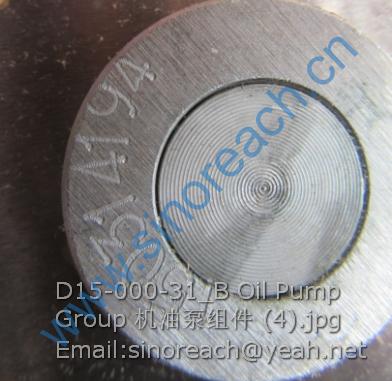

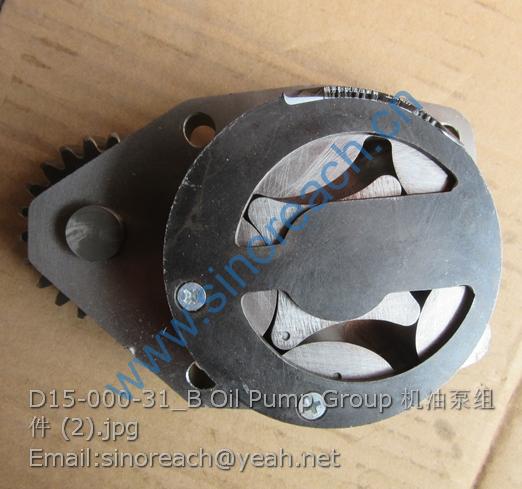

D15-000-31+B Oil Pump Group for SHANGCHAI spare parts

1 机油泵组件 OIL PUMP GROUP G15-000-01+A
1 风扇铆接部件（吹风式） FAN ASSY RIVETED (INSPIRATION) C16DB-1N3586
2 过渡盘 ADAPTER G16-103-08+A
3 GB/T5783-M10*30:六角头螺栓 HEX HEAD BOLT B00001973
4 GB/T93-10:弹簧垫圈 STANDARD SPRING WASHER B00001253
5 风扇皮带盘 FAN BELT G16-102-09+A
6 内隔圈 FAN SPACER (INTERNAL) G16-110-01+A
7 GB/T276-6308-Z:滚动轴承 ROLLER BEARING B00000241
8 GB/T6170-M12-Y:I型六角螺母 HEX HEAD NUT B00000772
9 GB/T93-12:弹簧垫圈 STANDARD SPRING WASHER B00001239
10 Q/SC587.1-M10*1:六角头螺塞 HEXAGON COUNTERSUNK PIPE PLUG B00001724
11 座架部件 BASE G16-001-02+A
12 GB/T1152-M10*1:直通式压注油杯 GREASE FILLING JET B00000064
13 风扇轴 FAN SHAFT A765Z-16B-002
14 GB12732-AV17*1600:汽车V带 AUTOMOTIVE V-BELT B00001355
15 Q/SC597-12*50:加大毛垫圈 ENLARGED ROUGH WASHER B00001802
16 GB/T5783-M12*25:六角头螺栓 HEX HEAD BOLT B00000538
1 机油滤清器部件 OIL FILTER ASSEMBLY D17-002-02+B
2 接头 TIE-IN G17-102-01+A
3 机油滤清器座 OIL FILTER HEAD G17-103-01A+A
4 空芯螺套 SHEATH G17-104-01+A
1 机油冷却器盖 COVER,OIL COOLER G18-101-01A+A
2 主油道调压阀体 VALVE G18-102-01+A
3 主油道调压弹簧 SPRING G18-103-01+A
4 主油道调压螺帽 SCREw CAP G18-104-01+A
5 垫片 GASKET G18-105-01+A
6 垫片 GASKET G18-106-01A+A
7 垫片 GASKET G18-107-01+A
8 旁通阀盖 COVER G18-108-01+A
9 阀座 VALVE SEAT G18-109-01+A
10 弹簧 SPRING G18-110-01+A
11 弹簧座 SPRING SEAT G18-111-01+A
12 旁通阀阀芯 CORE G18-112-01+A
13 GB/T5783-M10*25:六角头螺栓 HEXAGON HEAD BOLT B00000505
14 GB/T5783-M10*70:六角头螺栓 HEXAGON HEAD BOLT B00000528
15 GB/T5783-M8*25:六角头螺栓 HEXAGON HEAD BOLT B00000634
16 GB/T6170-M8-Y:I型六角螺母 HEXAGON NUT,TYPE I B00000793
18 GB/T899-GM8-M8*30-8.8-Y:双头螺柱 STUD B00001138
19 GB/T923-M8:盖型螺母 NUT B00001236
20 GB/T93-10:标准型弹簧垫圈 STANDARD SPRING WASHER B00001237
22 GB/T97.1-8-200HV-ZN.D:平垫圈 WASHER, PLAIN B00001300
23 Q/SC584.2-M24*1.5:内六角螺塞 PLUG B00001708
24 Q/SC584.2-M27*1.5:内六角螺塞 PLUG B00001709
25 调整铜垫圈 COPPER WASHER G18-113-01+A
26 Q/SC1294-24:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001552
27 Q/SC1294-27:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001553
28 Q/SC598-24*35:铜垫圈 GASKET B00001844
29 机油冷却器芯子部件 OIL COOLER CORE ASSY G18-001-01B+B
1 增压器 TURBOCHARGER G19-002-11+B
2 回油管焊接部件 TURBOCHARGER OIL RETURN TUBE ASSY (WELDED) G19-009-02+A
3 机油泵吸油管焊接部件 OIL PUMP SUCTION TUBE ASSY (WELDED) G19-007-01+B
4 油管 INLET TUBE G19-118-01A+B
5 油管 INLET TUBE G19-104-03+B
6 回油管焊接部件 INJECTOR FUEL RETURN TUBE ASSY (ASSEMBLED) A771Z-19-010+B
6.1 Q/SC642.1-02-14.2:管接头体 BANJO B00002188
6.2 回油管 OIL RETURN TUBE A771Z-19-002+A
6.3 回油管密封圈座 OIL RETURN TUBE SEAL A771Z-19-001+A
7 垫片 GASKET G19-125-03+A
8 橡胶接管 WATER HOSE B774ZL-19-005+A
9 垫片 GASKET 761Z-19-011+A
10 垫片 GASKET G19-102-01+A
11 夹箍 CLAMP G19-122-01+A
12 接头螺钉 CONNECTOR SCREW 763G-19-009+A
13 Q/SC1302-21~44:喉箍 CLAMP B00001569
14 Q/SC648-13.8*2.4:密封圈 STEM SEAL B00002471
15 GB/T93-10:标准型弹簧垫圈 STANDARD SPRING WASHER B00001237
16 GB/T5783-M10*(12):六角头螺栓 HEXAGON HEAD BOLT B00000499
17 Q/SC1294-8:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001555
18 Q/SC642.1-01-M14*1.5:铰接螺栓 BANJO BOLT B00002179
19 Q/SC1294-14:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001547
20 Q/SC596-10*16:冲制光垫圈 STAMPED WASHER B00001765
21 Q/SC611.1-M10*20:小六角头螺栓 SMALL HEXAGON HEAD BOLT B00001905
22 GB/T97.2-8-200HV-Y:平垫圈 PLAIN WASHER B00001318
23 GB/T93-8:标准型弹簧垫圈 STANDARD SPRING WASHER B00001253
24 Q/SC611.1-M8*20:小六角头螺栓 SMALL HEXAGON HEAD BOLT B00001963
1 水泵组件 WATER PUMP GROUP G20-000-04+C
1 出水管焊接部件 HEAT EXCHANGER WATER OUTLET TUBE ASSY (WELDED) A765B-24-010A+B
1.1 出水管 OUTLET TUBE A765B-24-008+A
1.2 螺塞 PIPE PLUG A765B-24-009+A
1.3 闷头 CUP PLUG 761-24-031A+A
2 调温器装配部件 THERMOSTAT ASSY (ASSEMBLED) G24-016-01+A
2.1 调温器体 THERMOSTAT HOUSING G24-116-03A+A
2.2 调温器座 THERMOSTAT BASE 761G-24-002D+A
2.3 Q/SC585-R1/2:方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001716
2.4 垫片 GASKET 761G-24-006B+A
2.5 蜡制调温器 THERMOSTAT 761G-24-003B+A
2.6 调整垫片 CYLINDER BLOCK 761G-24-041+A
2.7 垫圈 WASHER 761-24-004A+A
3 水管焊接部件 WATER INLET TUBE ASSY (WELDED) G24-003-09+A
4 水管焊接部件 WATER INLET TUBE ASSY (WELDED) G24-009-02+A
5 垫片 GASKET 761-24-042+A
6 垫片 GASKET 761-24-014A+A
7 出水管 OUTLET TUBE G24-130-02+A
8 垫片 GASKET 761G-24-044+A
9 垫片 GASKET G24-113-01+A
10 水管管接 OUTLET TUBE CONNECTOR G24-121-01+A
11 放水阀 DRAIN VALVE 765I-24-004+A
12 水管 TUBE G24-109-01+A
13 水管 TUBE G24-110-01A
14 垫片 GASKET G18-107-01+A
15 放水阀 DRAIN VALVE 741G-02-004+A
16 Q/SC1302-40~6:喉箍 CLAMP 4B00001573
17 Q/SC1302-60~83:喉箍 CLAMP B00001579
18 Q/SC1302-52~76:喉箍 CLAMP B00001575
19 Q/SC646-45*100:橡胶水管 WATER HOSE B00002391
20 Q/SC646-64*125:橡胶水管 WATER HOSE B00002441
21 Q/SC646-38*100:橡胶水管 WATER HOSE B00002365
22 Q/SC646-64*100:橡胶水管 WATER HOSE B00002439
23 Q/SC646-51*145:橡胶水管 WATER HOSE B00002408
24 Q/SC611.1-M10*25:小六角头螺栓 SMALL HEXAGON HEAD BOLT B00001908
25 GB/T93-10:弹簧垫圈 STANDARD SPRING WASHER B00001237
26 Q/SC611.1-M10*60:六角头螺栓 HEXAGON HEAD BOLT B00001920
27 GB/T5783-M8*20:六角头螺栓 HEXAGON HEAD BOLT B00000631
28 GB/T5783-M10*30:六角头螺栓 HEXAGON HEAD BOLT B00000509
29 GB/T97.1-10:平垫圈 PLAIN WASHER B00001275
30 GB/T5782-M10*45:六角头螺栓 HEXAGON HEAD BOLT B00000392
31 GB/T97.1-10-200HV-Y:平垫圈 PLAIN WASHER B00001275
1 高压油管部件(第一缸) HIGH PRESSURE FUEL TUBE ASSY (NO.1 CYLINDER) G26-001-03+A
2 高压油管部件(第二缸) HIGH PRESSURE FUEL TUBE ASSY (NO.2 CYLINDER) G26-002-03+A
3 高压油管部件(第三缸) HIGH PRESSURE FUEL TUBE ASSY (NO.3 CYLINDER) G26-003-03+A
4 高压油管部件(第四缸) HIGH PRESSURE FUEL TUBE ASSY (NO.4 CYLINDER) G26-004-03+A
5 高压油管部件(第五缸) HIGH PRESSURE FUEL TUBE ASSY (NO.5 CYLINDER) G26-005-03+A
6 高压油管部件（第六缸） HIGH PRESSURE FUEL TUBE ASSY (NO.6 CYLINDER) G26-006-03+A
7 回油管焊接部件 RETURN TUBE ASSY (ASSEMBLED) 761-26A-010+A
7.1 回油管 RETURN TUBE 761G-26A-005+A
7.2 管子接头 BANJO 761-26A-002+A
7.3 回油管 RETURN TUBE 761G-26A-006+A
7.4 Q/SC642.1-02-14.2:管接头体 BANJO B00002188
8 油管固定支架焊接部件 FUEL INLET TUBE BRACKET ASSY A762ZA-26-010+A
8.1 支架固定板 BRACKET A762ZA-26-002+A
8.2 油管固定支架 INLET TUBE BRACKET A762ZA-26-001+A
9 回油管焊接部件 FUEL INLET TUBE ASSY (WELDED) 771-26-180+A
9.1 Q/SC642.1-02-14.2:接头 CONNECTOR B00002188
9.2 回油管 RETURN TUBE 761G-26A-005+A
10 回油管焊接部件 RETURN TUBE ASSY (ASSEMBLED) 761-26A-020+A
11 上夹片 CLAMP A762ZA-26-004+A
12 夹箍衬垫 CLAMP CUSHION A762ZA-26-003+A
13 夹片 CLAMP G26-115-01+A
14 夹片 CLAMP G26-117-01+A
15 低压油管 LOW PRESSURE FUEL TUBE 771-26-014+A
16 柴油软管 HOSE 763G-26-001A+A
17 夹箍 CLAMP G26-104-01+A
18 夹片 CLAMP G26-114-01+A
19 低压油管 LOW PRESSURE FUEL TUBE 771-26-015+A
20 夹片焊接部件 CLAMP CUSHION ASSY (WELDED) G26-007-01+A
21 夹片 CLAMP G26-116-01+A
22 塑料回油管 RETURN TUBE 761G-26A-007+A
23 垫块 GASKET 765KB-02-002+A
24 Q/SC642.3-1-M8*1*2:铰接螺栓 BASE BANJO BOLT B00002232
25 Q/SC1294-8:复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET B00001555
26 GB/T5783-M6*25:六角头螺栓 HEXAGON HEAD BOLT B00000611
27 GB/T93-6:标准型弹簧垫圈 STANDARD SPRING WASHER B00001252
28 GB/T97.1-6-200HV-Y:平垫圈 PLAIN WASHER B00001297
29 GB/T97.1-10-200HV-Y:平垫圈 PLAIN WASHER B00001275
30 GB/T5783-M5*20:六角头螺栓 HEXAGON HEAD BOLT B00000591
31 GB/T93-5:标准型弹簧垫圈 STANDARD SPRING WASHER B00001251
32 GB/T6170-M5-YI:型六角头螺母 HEXAGON NUT B00000787
33 GB/T5783-M8*20:六角头螺栓 HEXAGON HEAD BOLT B00000631
34 GB/T93-8:标准型弹簧垫圈 STANDARD SPRING WASHER B00001253
35 GB/T93-10:标准型弹簧垫圈 STANDARD SPRING WASHER B00001237
36 GB/T5783-M10*20:六角头螺栓 HEXAGON HEAD BOLT B00000631
1 压力传感器 PRESSURE SENSORS G31-113-04+A
2 转速传感器 ENGINE SPEED SENSOR G31-111-03+A
