Description

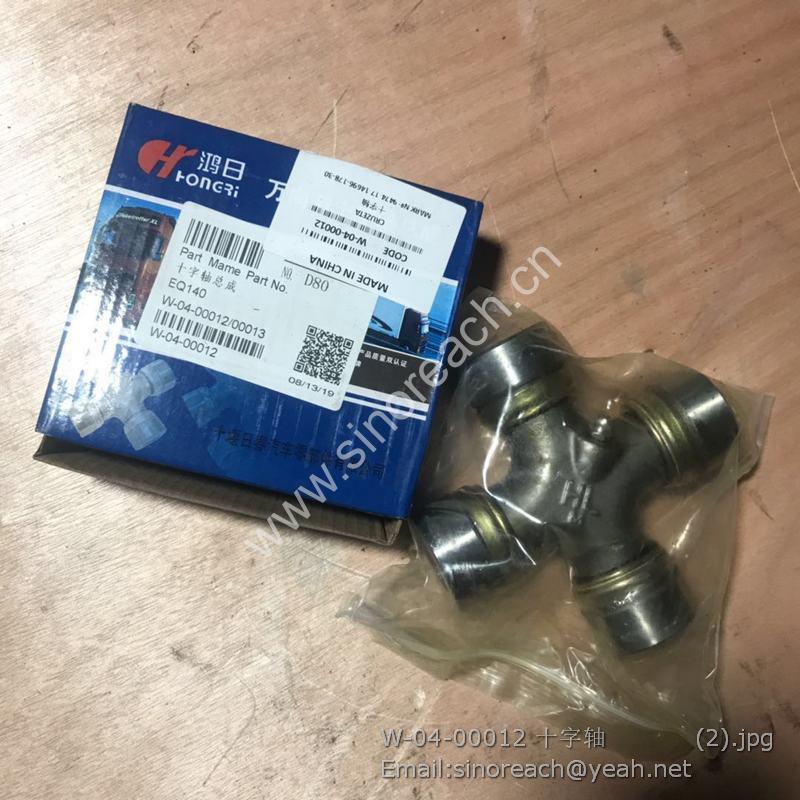

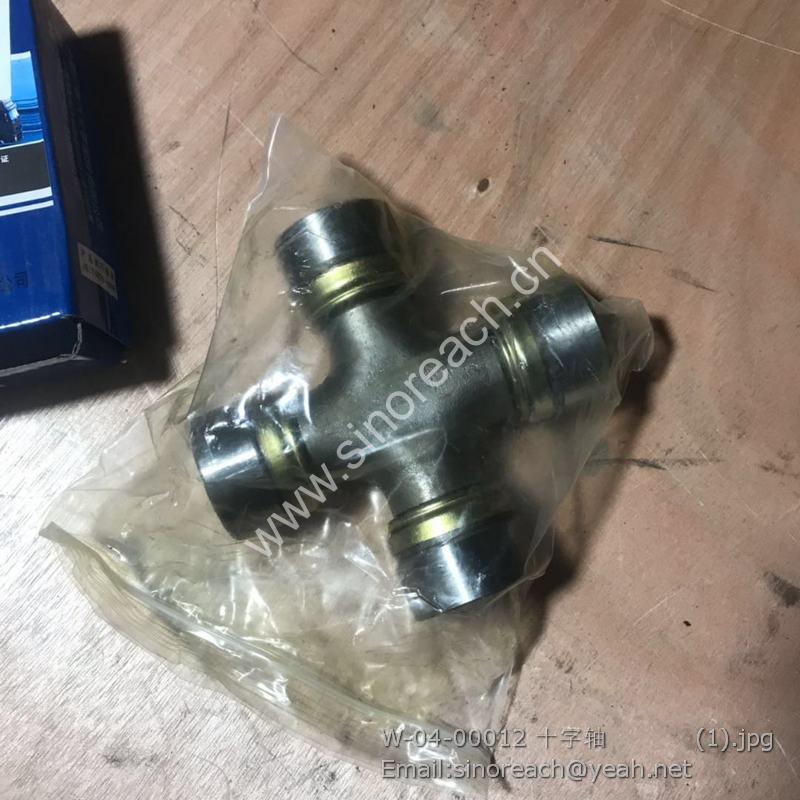

Cross joint assy W-04-00012 for Changlin Wheel Loader Part
Z50B.4.7.1 分配阀总成 Distributing Valve Ass’y
Z30.4.12-12 固定螺钉 Screw
B-Q020710-00042 O形圈 25×2.4 O-ring
Z30.4.12-11 弹簧座 Spring seat
Z30.4.12-10 弹簧 Spring
Z50B.4.7.1-1 单向阀 One-way valve
Z30.4.12-9 单向阀套 One-way valve bush
B-Q020710-00024 O形圈 16×2.4 O-ring
B-Q020780-00001 挡圈 A16×12 Seal ring
Z30.4.12-7 液动阀套 Valve bush
Z30.4.12-6 阀芯 Valve core
Z30.4.12-13 液流阀阀罩 Valve hood
B-Q020710-00056 O形圈 35×3.5 O-ring
Z30.4.12-3 液流阀阀套 Valve bush
B-Q020710-00047 O形圈 30×3.1 O-ring
Z30.4.12-2 弹簧 Spring
Z30.4.12-4 液流阀阀芯 Valve core
Z30.4.12-1 阀体 Valve case
W-10-00008 螺钉 Z1/8”×12 Screw
Z30.4.12-14 阀套 Valve bush
B-Q020710-00033 O形圈 22×2.4 O-ring
Z30.4.12-15 阀芯 Valve core
B-Q020710-00029 O形圈 20×2.4 O-ring
Z30.4.12-5 固定螺钉 Screw
Z30.4.12-16 弹簧 Spring
Z50B.4.7.1-2 单向阀 One-way valve
Z30.4.13 档位阀总成 Clutch Valve Ass’y
B-G00893A-00004 挡圈 30 Snap ring
B-G09877A-00019 油封 FB18×30×10 Oil seal
B-J010000-00005 螺塞 18×1.5 Plug
B-J010020-00005 垫圈 18 Washer
Z30.4.13-1 档位阀体 Valve case
B-Q020710-00033 O形密封圈 22×2.4 O-ring
Z30.4.13-6 垫圈 Washer
Z30.4.13-7 制动杆联接套 Sleeve
Z30.4.13-4 制动卸载阀杆 Valve stem
B-Q020710-00047 O形密封圈 30×3.1 O-ring
Z30.4.13-12 柱塞套 Plunger sleeve
Z30.4.13-13 柱塞 Plunger
Z30.4.13-10 垫圈 Washer
B-Q020710-00008 O形密封圈 11×1.9 O-ring
Z30.4.13-9 制动杆始复弹簧 Spring
Z30.4.13-15 活塞杆导套 Guide bushing
Z30.4.13-8 限位套 Limit sleeve
Z30.4.13-16 活塞杆回位弹簧 Retraction spring
Z30.4.13-11 螺钉 Screw
Z30.4.13-14 活塞杆 Piston rod
Z30.4.13-17 橡皮碗 Rubber cup
Z30.4.13-18 进气联接盖 Cover
Z30.4.13-5 操作压力接头 Joint body
Z30.4.13-3 方向阀杆 Valve stem
Z30.4.13-2 档位阀杆 Valve stem
B-G003080-00002 钢球 8.0000-G100-b Ball
Z30.4.13-20 档位弹簧 Spring
B-G000790-00001 螺钉 M10×12 Screw
Z30.4.13-21 钢球限位锥体 Limit cone
Z30.4.13-22 挡圈 Check ring
Z30.4.13-19 方向杆档位体 Sleeve
Z30.4.13-23 档位杆体 Sleeve
956.4.6 冷却油分路器 Oil Diverter
Z50B.4.15-1 冷却油分流体 Oil diverter
B-G00097B-00023 垫圈 8ZnD Washer
B-G000930-00017 垫圈 8 Washer
B-G057820-00162 螺栓 M8×50ZnD Screw
B-J010020-00006 垫圈 20 Washer
Z30.4.17-3 管接头 Joint
B-J088700-00014 喉箍 d32 Clip
Z50B.4.15-2 输油胶管 Hose
Z30.4M.1.1 管接头 Joint
B-J009990-00016 螺栓 M20×1.5×38ZnD Screw
Z50B.4.15-3 输油胶管 Hose
Z50B.4.15-4 输油胶管 Hose
B-J010020-00009 垫圈 27 Washer
956.2A.7 过渡接头 Joint
