Description

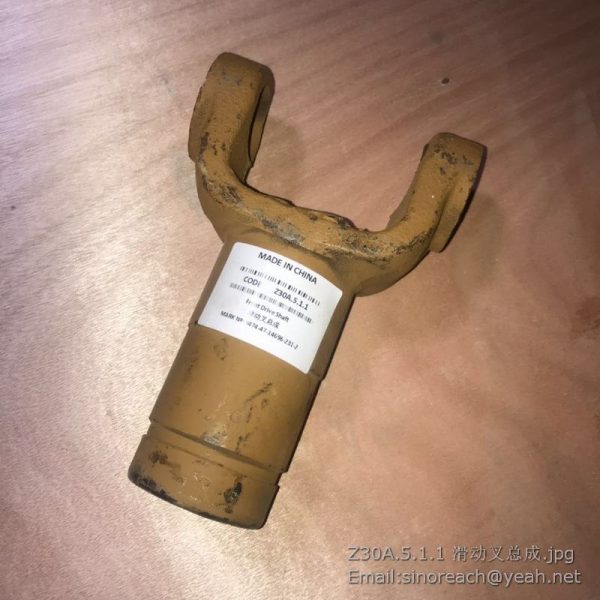

Changlin Z30A.5.1.1 Slide fork assy

WZ30.7-1 螺纹套 Thread Cover
WZ30.7-2 垫片 Washer
WZ30.7-3 密封圈 Ring
B-J07940A-00001 油杯M10×1 Grease Fitting
WZ30C.7B.1 传动轴 Drive Shaft
WZ30.7-5 螺栓 Bolt
B-G000930-00017 垫圈 8 Washer
WZ30.7-4 连接片 Joint Plate

W-03-00009 后桥|28.28M Rear Axle
B-G061710-00017
B-G020490-00013 螺母M22×1.5ZnD
垫圈22 Nut Washer
B-G057850-00026 螺栓M20×235-10.9ZnD Bolt
B-G020490-00011 垫圈20 Washer
WZ30.8-1 板 Plate
B-G061710-00013 螺母M20×1.5-10ZnD Nut
B-G061730-00010 螺母M20×1.5-10ZnD Nut

W-16-00376 软管总成 Hose Ass’y
WZ30.8D.2 45°角接头 Elbow,45°
WZ30.8-2 O形圈11.89×1.98 O-Ring
WZ30.8D.1 直角接头 Elbow,90°

WZ30.8.1 轮毂 Rim-Spoke Ass’y
B-G039000-00001 气门嘴Z4-01-1 Valve Stem
W-14-00009 轮胎 Tire

B-G061700-00036 螺母M8ZnD Nut
B-G057830-00148 螺栓M8×40ZnD Bolt
WZ30.9.6 支架 Support
B-G00097B-00023 垫圈8ZnD Washer
B-J010020-00001 垫圈10 Washer
WZ30.9.3 踏板（左） Pedal（Left）
WZ30.9-15 垫 Washer
WZ30.9-14 连接套 Joint Cover
WZ30.9-10 横夹 Clevis
B-G061730-00018 螺母M8×1ZnD Nut
WZ30.9-11 顶杆 Rod
W-01-00032 刹车泵MC000950M Brake Pump
WZ30.9-9 弹簧 Spring
WZ30.9-3 螺栓 Bolt
WZ30.9-4 连接板 Joint
B-G000910-00032 销 3.2×30 Pin
WZ30.9-8 销轴 Pin Shaft
B-G008790-00013 销8×60 Pin
WZ30.9-13 轴套 Bushing
WZ30.9.5 销轴 Pin Shaft
B-G061700-00003 螺母M10ZnD Nut
B-G00097B-00002 垫圈10ZnD Washer
B-G057830-00006 螺栓M10×25ZnD Bolt
B-G008820-00001 销轴 10×32 Pin
B-G057830-00146 螺栓 M8×30ZnD Bolt
B-G057830-00139 螺栓 M8×20ZnD Bolt
WZ30.9.4 踏板（右） Pedal（Right）
