Description

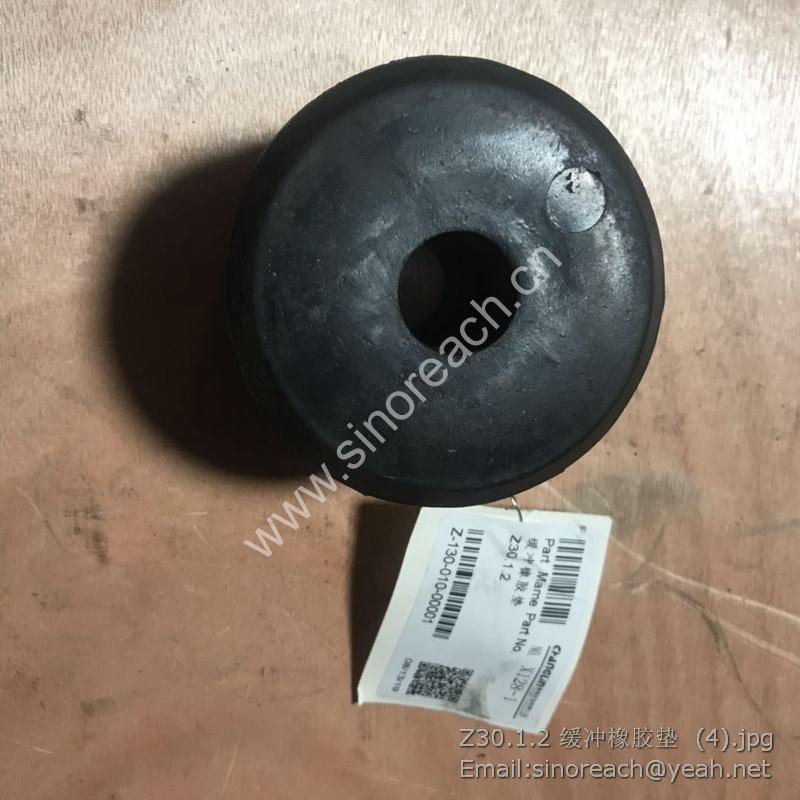

CHANGLIN Z30.1.2 Cushion rubber pad Z-130-010-00001

956.31.G9 1 煤斗 Coal Scuttle
Z50B.13-5 1 螺母 Nut
Z50B.13-6 1 螺栓 Bolt
Z50B.13-11A 1 右边齿 Right tooth
Z50B.13-4 1 螺栓 Bolt
Z50B.13-10A 1 中间齿 Bucket tooth
B-Q020490-00015 1 垫圈24 Washer
B-G051750-00001 1 螺母M24ZnD Nut
956.31.G9.1 1 煤斗 General bucket
Z50B.13-9 1 垫片 Pad
Z50B.13-8 1 垫片 Pad
Z50B.13-16 1 垫片 Pad
Z50B.13-13 1 垫片 Pad
Z50B.13-14 1 垫片 Pad
Z50B.13-12A 1 左边齿 Left tooth

956.31.G1A 1 通用抓具 Log Fork
956.31.G1A.2 1 上爪 Upper fork
Z50B.31.G1-1 1 轴套75×55A Bushing
B-Q012101B-00008 1 内防尘圈90 Inner dust ring
956.31.G1-1 1 销轴50×151 Shaft assembly
956.31.G1-2 1 限位块 Limit mass
B-Q057830-00003 1 螺栓M10×20ZnD Bolt
956.31.G1A.1 1 下爪 Lower fork
Z50B.31.G1.4 1 销轴75×290A Shaft assembly
B-J07940A-00001 1 油杯M10×1 Grease fitting
B-Q012101B-00003 1 垫圈16 Washer
B-Q057830-00066 1 螺栓M16×25ZnD Bolt
Z50B.31.G1.5 1 销轴50×245A Shaft assembly
B-Q012101B-00001 1 垫圈12 Washer
B-Q057830-00025 1 螺栓M12×16ZnD Bolt

956.14A 1 工作液压系统（两联） Hydraulic System
B-Q020710-00030 1 O形圈200×5.7 O-ring
956.14A.2 1 油箱出油管 Oil pipe
B-G000930-00001 1 垫圈10 Washer
B-G057830-00012 1 螺栓M10x35ZnD Bolt
B-J088700-00002 1 喉箍d100 Clamp
956.14A-1 1 低压胶管 Hose
956.14A.3 1 油管 Oil pipe
B-Q020710-00085 1 O形圈65×3.1 O-ring
B-Q020140-00006 1 分离式法兰A63.1/21 Separated flange
B-G057830-00037 1 螺栓M12x35ZnD Bolt
B-G000930-00003 1 垫圈12 Washer
W-01-00147 1 齿轮油泵(左旋)JHP3160 Pump
B-Q020140-00003 1 分离式法兰A44.1/21 Separated flange
B-G03452A-00014 1 O形圈37.5×3.55 O-ring
B-G057830-00011 1 螺栓M10x35-10.9ZnD Bolt
956.14A.4 1 软管总成 Hose
956.14A-3 1 连接板 Plate
B-Q020490-00001 1 垫圈10 Washer
B-G057820-00003 1 螺栓M10x110ZnD Bolt
B-J010020-00003 1 垫圈14 Washer
B-J010000-00002 1 螺塞M14x1.5 Plug screw
B-Q020140-00004 1 分离式法兰A51.2/21 Separated flange
B-G03452A-00025 1 O形圈47.5×3.55 O-ring
956.14A.5 1 软管总成 Hose
956.14A.6 1 回油阀块 Joint
B-Q020710-00168 1 O形圈115×3.5 O-ring
B-G057820-00263 1 螺栓M10x95-10.9ZnD Bolt
Z50E.34F-2 1 垫圈 Washer
B-G057830-00053 1 螺栓M14x30ZnD Bolt
