Description

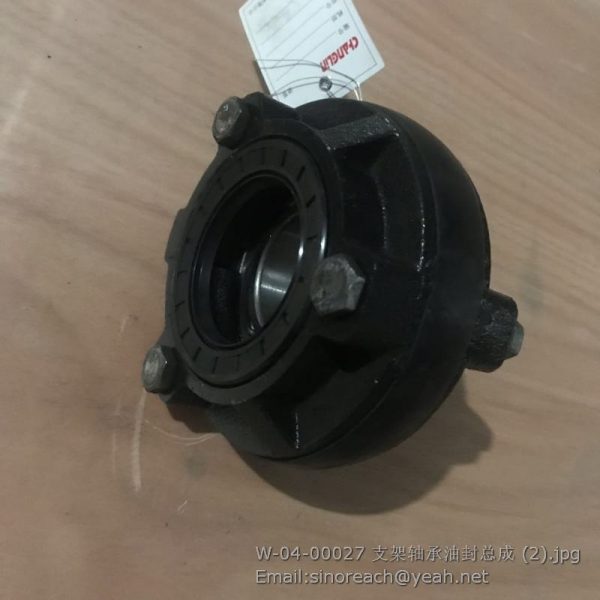

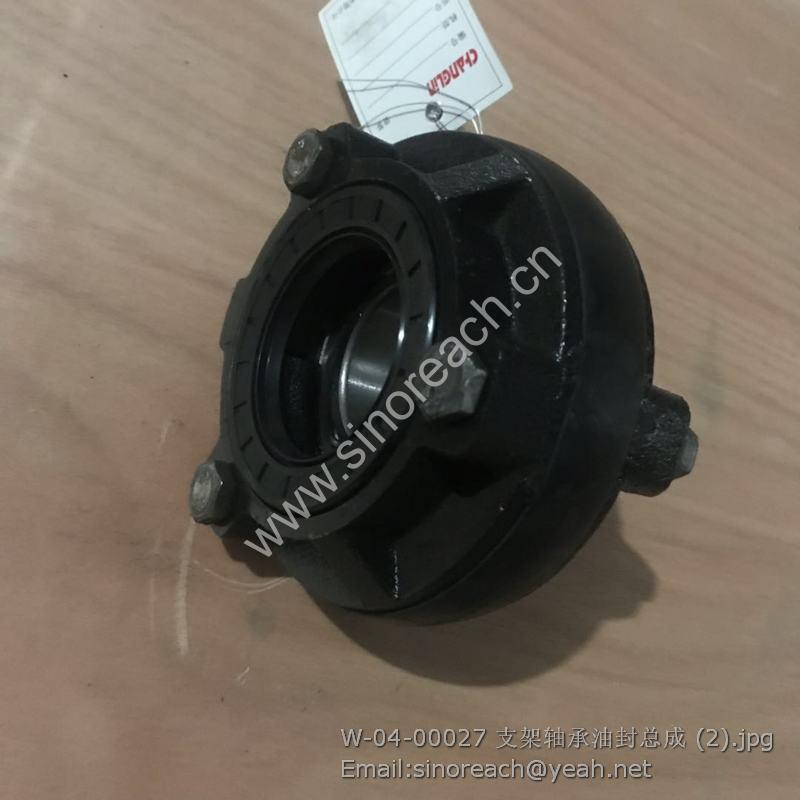

CHANGLIN W-04-00027 Bracket bearing oil seal assembly

Z50B.4.16 加油管总成 Oil Filler Hose Ass’y
956.4B.2 加油管总成 Oil Filler Hose Ass’y
Z50B.4.16-1 加油口盖 Oil filler mouth cover
Z50B.4.16.1 滤网 Strainer
Z50B.4.16.2 加油管支架 Seat
B-J088700-00015 喉箍 d40 Clip
Z50B.4.16-3 橡胶管 Hose
956.4B.2-1 橡胶管 Hose
B-Q01202L-00002 接头体  M30×1.5 Joint body
B-J010020-00010 垫圈 30 Washer
B-G057830-00130 螺栓  M6×16ZnD Screw
B-G000930-00015 垫圈 6 Washer
B-G061700-00034 螺母 M6ZnD Nut

956.4.7 滤清器总成 Filter Ass’y
Z30.4.21.1 滤清器罩 Filter cap
Z30.4.21-11 滤网 Strainer
Z30.4.21-10 滤清器骨架 Filter frame
Z30.4.21-5 滤清器上端盖 Filter upper cover
Z30.4.21-6 垫 Washer
Z30.4.21-7 盖板 Cover
B-Q020710-00104 O形圈 90×3.1 O-ring
Z30.4.21-8 法兰盘 Flange disk
B-Q020710-000070 O形圈 45×3.5 O-ring
956.4.7-1 接头 Joint
B-J010020-00001 垫圈 10 Washer
B-G057830-000012 螺栓 M10×35ZnD Bolt
B-G000930-00017 垫圈  8 Washer
B-G057830-000143 螺栓 M8×25ZnD Bolt
B-G061780-00002 螺母 M10ZnD Nut
Z30.4.21-12 铝垫 Al-washer
Z30.14.8.3-3 隔垫 Spacer washer
Z30.14.8.3-2 永磁铁 Magnet iron
Z30.4.21-1 铝管 Al-pipe
Z30.4.21-2 联接螺杆 Joint rod
Z30.4.21-4 管 Pipe
Z30.4.21-3 滤清器下端盖 Filter lower cover
B-G000910-00023 销  2×36ZnD Pin

Z50B.4.9 油尺 Oil Gauge
Z50B.4.9-1 油尺 Oil gauge
B-G010120-00002 铆钉 2×6 Rivet
B-J010020-00007 垫圈 22 Washer
Z50B.4.9-2 油尺座 Oil gauge seat
Z50B.4.9-3 套圈 Bushing
B-Q020730-00001 矩形橡胶垫圈 6×14×12 Washer
Z50B.4.9-4 油尺盖 Oil gauge cover
Z50B.4.9-5 油尺柄 Oil gauge handle
B-G010120-00001 铆钉 2×14 Rivet
