Description

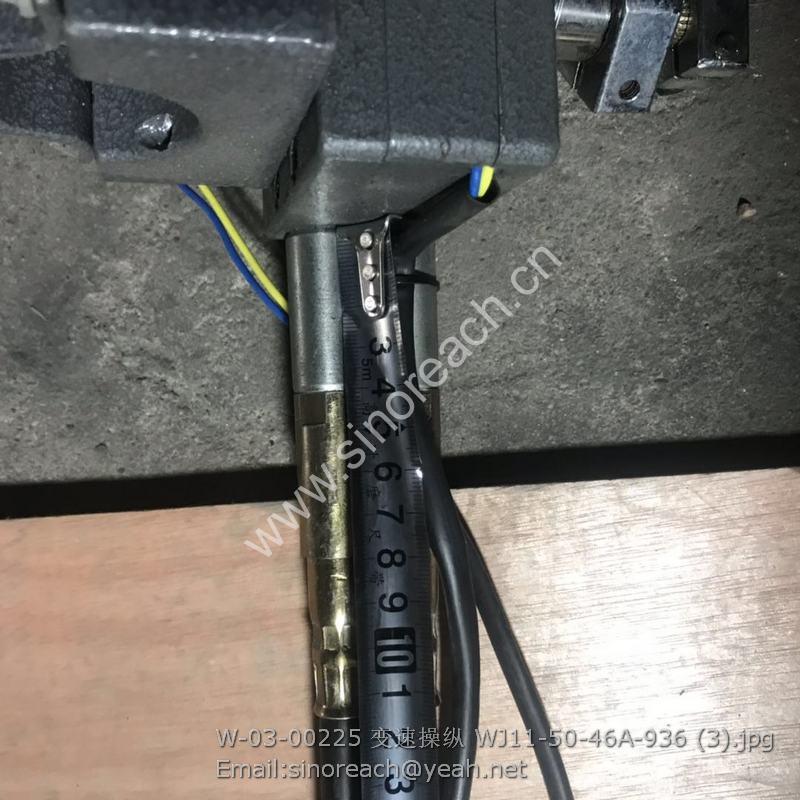

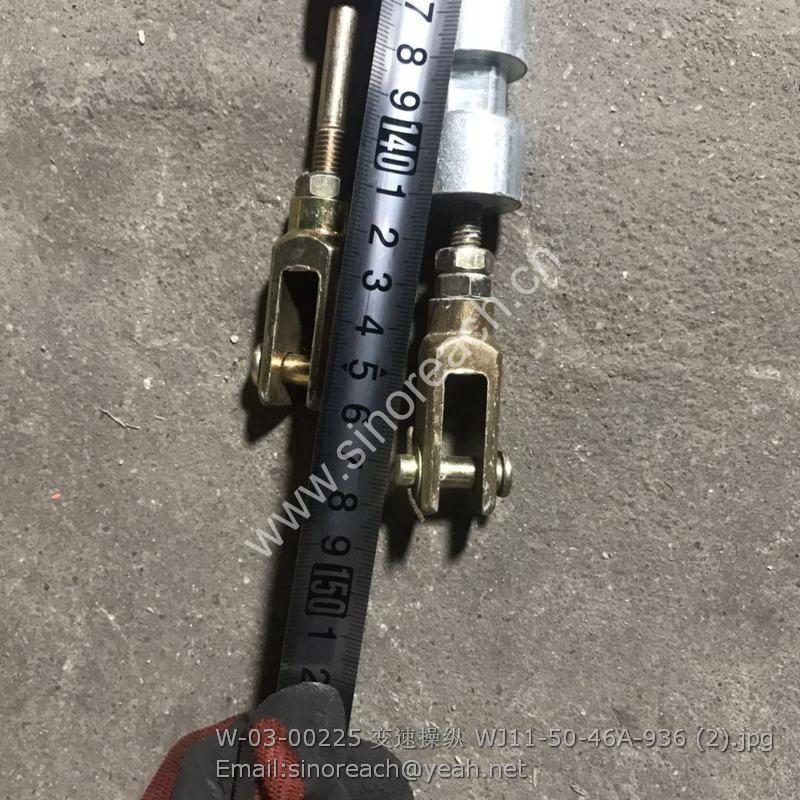

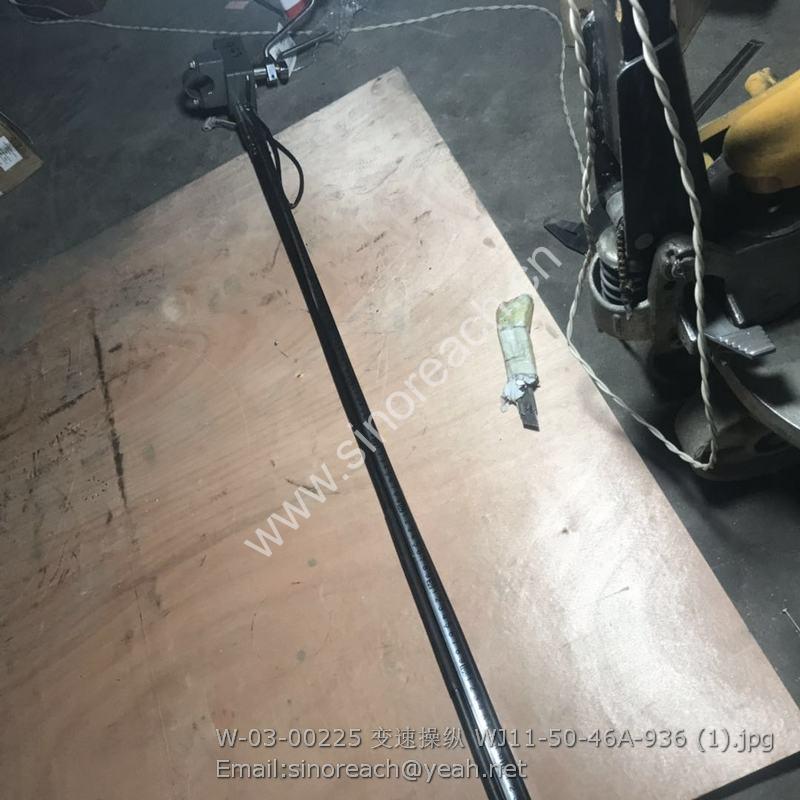

CHANGLIN W-03-00225 ALAVANCA TRANSMISSAO shaft WJ11-50-46A-936

Z50E.4.3 一档总成 1st Clutch Ass’y
Z50B.4.3A-1 轴承盖 Bearing cover
B-G00894A-00019 挡圈 55 Snap ring
B-G002760-00032 滚动轴承 6311 Bearing
Z50B.4.2-2 垫环  Spacer ring
Z50B.4.3A-2L 输出齿轮  Output gear
Z50B.4.3-2 轴套  Bushing
B-G002760-00010 滚动轴承 6013 Bearing
Z50E.4.3-2L 齿轮  Gear
Z50B.4.2-14 垫环 Spacer ring
Z30.4.4A-11 螺堵  Plug
Z50E.4.3-5A 轴 Shaft
B-G057830-00010 螺栓 M10×30ZnD Bolt
B-G000930-00001 垫圈 10 Washer
Z50B.4.2-11 卡环  Snap ring
Z50B.4.3-5 齿圈  Gear ring
Z50B.4.3-4 一挡压盖 1st cover
Z50B.4.2-7 主动摩擦片 Drive disc
Z50B.4.2-8 从动摩擦片 Driven disc
Z50B.4.2-15 波形弹簧 Wave spring
Z50B.4.2-12 活塞  Piston
Z50B.4.2-23 挡圈  Retainer
Z50B.4.2-24 矩形密封圈 Seal ring
Z50E.4.3-3 缸体  Cylinder body
Z50B.4.2-10 活塞回位弹簧 Retraction spring
Z50B.4.2-9 活塞回位拉杆 Retraction drag rod
Z30.4.1-19 油封环 Oil seal ring
B-G000780-00006 螺钉 M12×12 Screw
Z50E.4.3-4 隔套  Collar
Z50B.4.2-19A 纸垫  Paper pad
Z50B.4.2-19B 纸垫  Paper pad
Z50B.4.2-19C 纸垫  Paper pad
Z50B.4.3-7 轴承盖 Bearing cover
W-03-00102 滚动轴承 6411(TWB) Bearing
Z50B.4.3A-4A 纸垫 Paper pad
Z50B.4.3A-4B 纸垫 Paper pad
Z50B.4.3A-4C 纸垫 Paper pad

956.4A.2 中间轴总成 Center Shaft Ass’y
B-G057830-00010 螺栓 M10×30ZnD Bolt
B-G000930-00001 挡圈 10 Spring washer
Z50B.4.4A-5 轴承盖 Bearing cover
Z50B.4.4A-4A 纸垫  Paper pad
Z50B.4.4A-4B 纸垫  Paper pad
Z50B.4.4A-4C 纸垫  Paper pad
B-G00894A-00019 挡圈 55 Snap ring
B-G002760-00032 滚动轴承6311 Bearing
Z50B.4.4A-3 轴套  Bushing
956.4A.2-1L 齿轮  Gear
Z50B.4.4-4L 齿轮  Gear
Z50B.4.4A-2 中间轴 Center shaft
Z50E.4.4-1L 齿轮  Gear
Z50B.4.4-7 垫套  Bushing

956.4A.3 倒档轴总成 Reverse Shaft Ass’y
B-G057830-00139 螺栓 M8×20ZnD Bolt
B-G000930-00017 垫圈 8 Spring washer
Z50B.4.5A-1 卡铁 Snap iron（plate）
B-Q020710-00068 O形圈 45×3.1 O-ring
Z50B.4.5B-1 倒档轴 Reverse shaft
B-G00893A-00013 挡圈 72 Snap ring
B-G002760-00015 轴承 6207 Bearing
956.4A.3-1L 倒挡齿轮 Rear gear
Z50B.4.5A-4 轴套  Bushing
