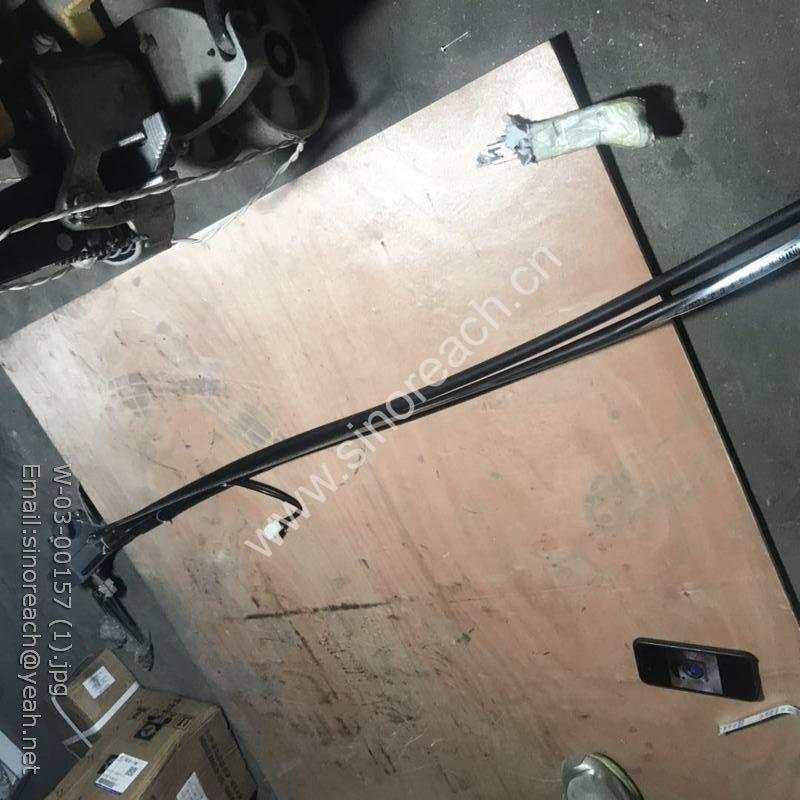

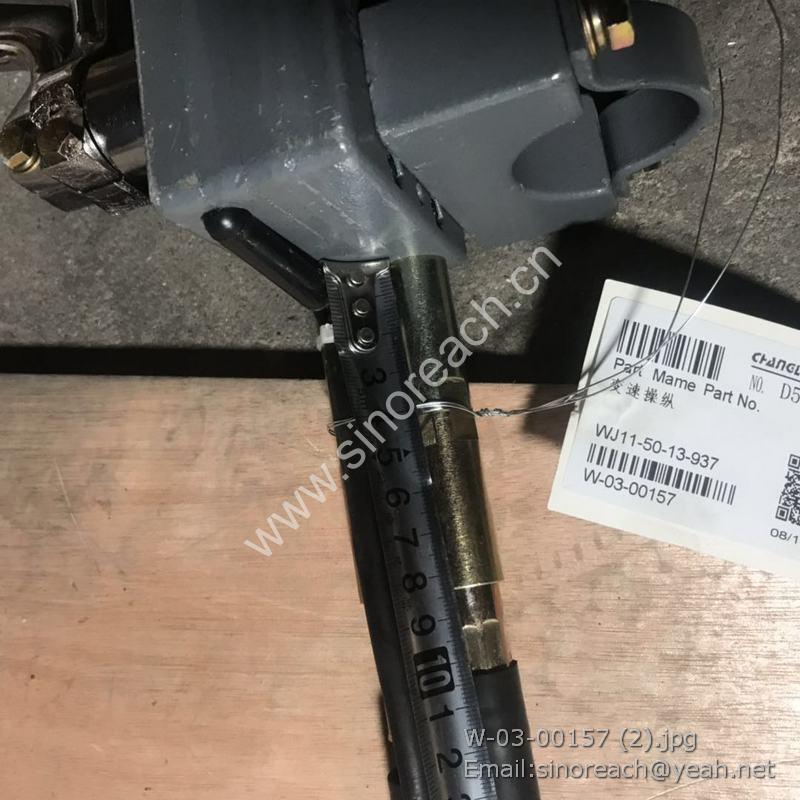

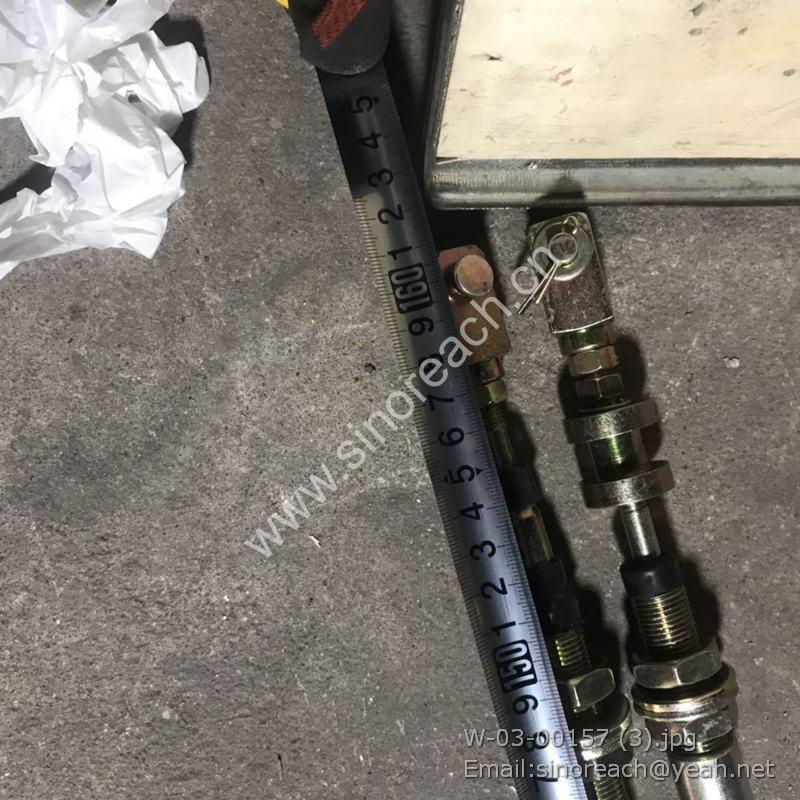

CHANGLIN W-03-00157 Flexible shaft

Z50E.4.1 输出轴总成 Output Shaft Ass’y
B-G000910-00049 销 5×45ZnD Pin
Z50B.4.1-6 垫圈  Washer
Z50B.4.1A-1 前法兰 Front flange
B-G057830-00010 螺栓 M10×30ZnD Bolt
B-Q020710-00088 O形密封圈 65×5.7 O-ring
B-G000930-00001 垫圈 10 Spring washer
Z50B.4.1-2 轴承盖 Bearing cover
Z50B.4.1-3A 纸垫  Paper pad
Z50B.4.1-3B 纸垫  Paper pad
Z50B.4.1-3C 纸垫  Paper pad
W-15-00115 油封AE3618A0(NOK) Oil seal
B-G002970-00019 滚动轴承32212 Bearing
Z50E.4.1-1AL 齿轮 Gear
B-G00894A-00023 挡圈 82 Retainer
Z50B.4.1A-2 输出轴 Output shaft
Z50E.4E.1-5 后法兰 Rear flange
B-G094590-00003 螺母 M24×1.5ZnD Nut

956.4A.1 二、三档总成 2nd and 3rd Clutch Ass’y
Z50B.4.4A-5 轴承盖 Bearing cover
Z50B.4.2-19A 纸垫  Paper pad
Z50B.4.2-19B 纸垫  Paper pad
Z50B.4.2-19C 纸垫  Paper pad
B-G00894A-00019 挡圈 55 Snap ring
B-G002760-00032 轴承 6311 Bearing
Z50B.4.2-2 垫环  Spacer ring
Z50E.4.2-1AL 输出齿轮 Output gear
Z50B.4.2-25 轴套 Bushing
B-G002760-00010 轴承 6013 Bearing
956.4A.1-1L 二档离合器齿轮  Gear
Z50B.4.2-14 垫环  Spacer ring
Z50B.4.2-11 卡环  Snap ring
Z50B.4.3-4 一挡压盖 1st cover
Z50B.4.2-7 主动摩擦片 Drive disc
Z50B.4.2-8 从动摩擦片 Driven disc
Z50B.4.2-15 波形弹簧 Wave spring
Z50B.4.2-12 活塞  Piston
Z50B.4.2-23 挡圈  Snap ring
Z50B.4.2-24 矩形密封圈 Searing
Z50B.4.2-13 缸体 Cylinder body
Z50B.4.2-5 齿圈 Gear ring
Z50B.4.2-10 活塞回位弹簧 Retraction spring
Z50B.4.2-9 活塞回位拉杆 Retraction drag rod
B-G057830-00010 螺栓 M10×30ZnD Bolt
B-G000930-00001 垫圈 10 Spring washer
Z50B.4.2-22 压盖  Cover
Z50B.4.2-21 轴 Shaft
Z30.4.1-19 油封环 Oil seal ring
B-G000780-00006 螺钉 M12×12 Screw
Z50B.4.2-16 轴承垫 Bearing washer
B-G002760-00009 轴承 6012 Bearing
Z50E.4.2-3L 三挡离合器齿轮  Gear
B-G002760-00008 轴承 6011 Bearing
Z50B.4.2-18 轴套  Bushing
Z50B.4.2-20 轴承盖 Bearing cover
