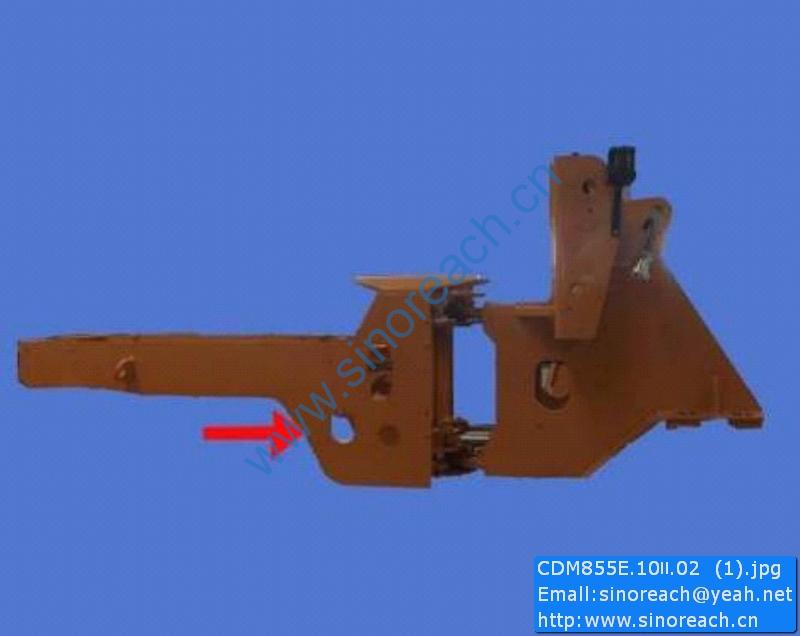

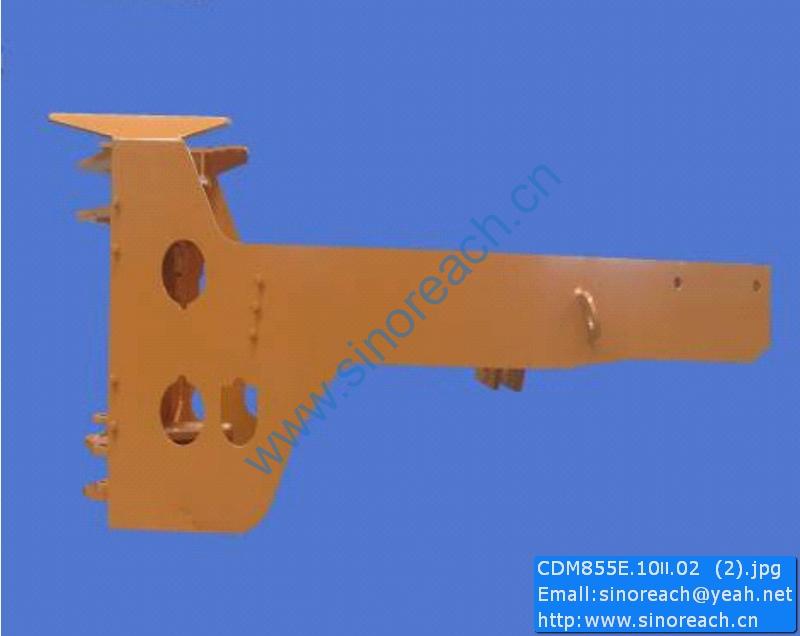

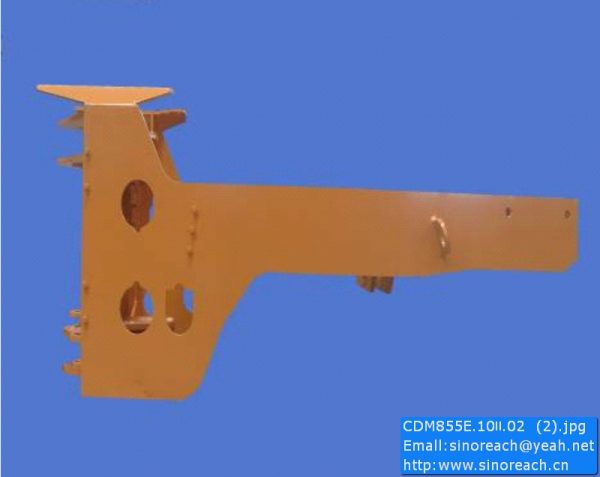

CDM855E.10Ⅱ.02 Rear frame CDM855 spare parts
1 WZ30-25.10A.1A 液压油箱 Oil tank 1
2 DIN20078P 高压胶管19Ⅱ-950 Hose 19Ⅱ-950 1
一端90°弯头 One End 90° Head
3 GB1235-76 O形圈25X1.9 O-Ring 25X1.9 6
4 GB5782-86 螺栓M8X75 Bolt M8×75 2
5 GB93-87 垫圈 8 Washer 8 2
6 ZL50F.8S-4 接头体 Connector 2
7 GB3452.1-92 O形圈22.4X2.65 O-Ring 22.4X2.65 2
8 优先阀VLE-150 Priority Valve VLE-150 1
9 W2/12.7 喉箍(35-52) Clamp (35-52) 2
10 WZ30-25.10A-20 泵吸油胶管32Ⅰ-800 Pump Oil Suction hose 32Ⅰ-800 1
11 DIN20078P 高压胶管16Ⅱ-2000 Hose 16Ⅱ-2000 1
一端90°弯头 One End 135° Head
12 DIN20078P 高压胶管16Ⅱ-1900 Hose 16Ⅱ-1900 1
一端90°弯头 One End 135° Head
13 DIN20078P 高压胶管16Ⅱ-3000 Hose 16Ⅱ-3000 1
一端90°弯头 One End 135° Head
14 GB1235-76 O形圈20X1.9 O-Ring 20X1.9 8
15 DIN20078P 高压胶管16Ⅱ-3100 Hose 16Ⅱ-3100 1
一端90°弯头 One End 135° Head
16 WZ30-25.10A-9A 胶块压板 Rubber Plate 2
17 WZ30-25.10A-10A 胶块 Rubber 2
18 GB5782-86 螺栓 M10×80 Bolt M10×80 6
19 GB6170-86 螺母 M10 Nut M10 16
20 WZ30-25.10A.6 泵吸油钢管 Pump Oil Suction Steel Pipe 1
21 DIN20078P 高压胶管13Ⅱ-950 Hose 13Ⅱ-950 4
22 GB1235-76 O形圈16X1.9 O-Ring 16X1.9 16
23 WZ30-25.10A.15A 动臂钢管一 Lift Arm pipe Ⅰ 1
24 GB5783-86 螺栓M10X40 Bolt M10×40 12
25 GB93-87 垫圈 10 Washer 10 24
26 GB95-85 垫圈 10 Washer 10 12
27 WZ30-25.10A-4 管夹一 Pipe Clip Ⅰ 6
28 WZ30-25.10A.15A 动臂钢管二 Lift Arm pipe Ⅱ 1
29 ZL30F.10H-3 泵出油接头 Pump Outlet Oil Connector 1
30 GB3452.1-92 O形圈36.5X2.65 O-Ring 36.5X2.65 1
31 DIN20078P 高压胶管19Ⅱ-1800 Hose 19Ⅱ-1800 1
一端90°弯头 One End 90° Head
32 DIN20078P 高压胶管19Ⅰ-560 Hose 19Ⅰ-560 1
一端90°弯头 One End 90° Head
33 GB5783-86 螺栓 M12×40 Bolt M12×40 4
34 GB93-87 垫圈 12 Washer 12 12
35 WZ30-25.22-2C 铰接接头 Jiont connector 1
36 WZ30-25.22A-8C 铰接螺栓 Jiont screw 1
37 GB3452.1-92 O形圈35.5X2.65 O-Ring 35.5X2.65 2
38 ZL50G.10.7(M) 提升油缸 Lift Arm Cylinder 2
39 GB3452.1-92 O形圈19X1.8 O-Ring 19X1.8 2
40 WZ30-25.10A.12A 方块 Square piece 1
41 WZ30-25.10A-13 接头体 Connector 2
42 JB1885-77 组合垫圈 12 Seal Washer 12 2
43 DIN20078P 高压胶管13Ⅱ-1250 Hose 13Ⅱ-1250 4
一端90°弯头带护簧 One End 90°Head with protecting spring
44 WZ30-25.10A.11 翻斗缸上钢管 Pipe For Tilting Cylinder 4
45 WZ30-25.10A.10 翻斗油缸 Tilting Cylinder 2
46 WZ30-25.10A-15 接头体 Connector 8
47 GB93-87 垫圈 22 Washer22 8
48 GB3452.1-92 O形圈15X1.8 O-Ring15X1.8 4
49 GB5783-86 螺栓 M10×30 Bolt M10×30 6
50 WZ30-25.10A-5 管夹座 Pipe Clip seat 2
51 WZ30-25.10A.16A 动臂上钢管二 pipe Ⅱfor Arm 1
52 WZ30-25.10A.15A 动臂上钢管一 pipe Ⅰfor Arm 1
53 WZ30-25.10A-4 管夹 Pipe Clip 2
54 ZL50F.8H-8 胶套 Hose sleeve 4
55 WZ30-25.10A-8A 胶块压板 Rubber Plate 2
56 WZ30-25.10A-2 手柄球 Handle ball 2
57 WZ30-25.10A.4C 操纵杆 Control bar 2
58 WZ25-20.10A-1 护套 Protect sleeve 2
59 GB5783-86 螺栓M10×25 Bolt M10×25 4
60 WZ30-25.10A.20C 阀安装板 Fitting plate for Valve 1
61 WZ30-25.10A.5C 多路阀 DB20 Multi-Way Valve DB20 1
62 WZ30-25.10A-7 接头体 Connector 4
63 JB1885-77 组合垫圈 27 Seal Washer 27 4
64 WZ30-25.10A-12C 接头体 Connector 2
65 JB1885-77 组合垫圈30 Seal Washer 30 2
66 WZ30-25.10A-3C 压板 Pressure Plate 4
67 CB882-86 销轴B8X26 Pin Shaft B8X26 2
68 CB882-86 销轴B10X26 Pin Shaft B8X26 2
69 GB91-86 开口销3X16 Pin3.2X16 4
70 WZ30-25.10A.3C 操纵支架 Control Rod Bracket 1
71 CB882-86 销轴B12X90 Pin Shaft B12X90 1
72 GB91-86 开口销4X20 Pin4X20 4
73 GB5783-86 螺栓 M12×35 Bolt M12×35 2
74 GB5783-86 螺栓 M12×30 Bolt M12×30 4
75 齿轮泵CBF-F80BPX Gear pump CBF-F80BPX 1
76 GB899-88 螺栓 M12×35 Bolt M12×35 2
77 GB6170-86 螺母 M12 Nut M12 2
78 GB3452.1-92 O形圈43.7X3.55 O-Ring 43.7X3.55 1
