Description

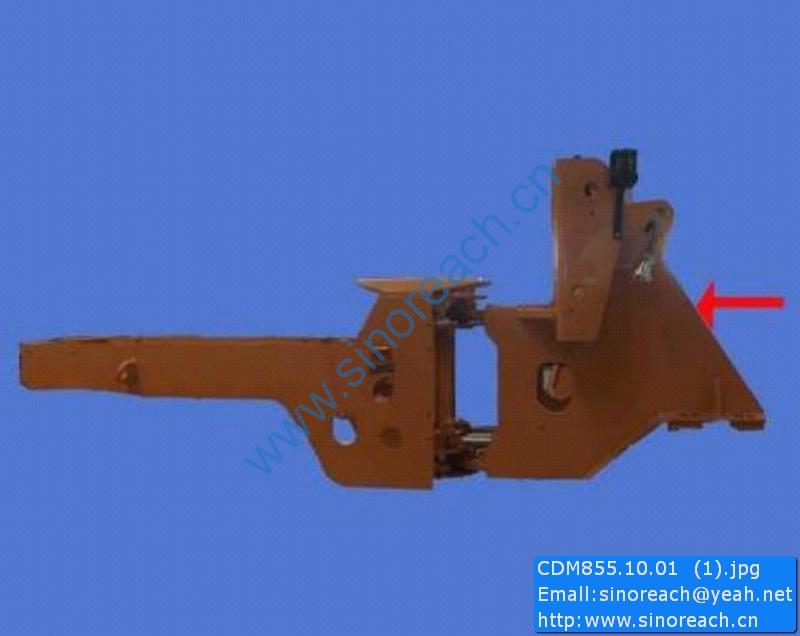

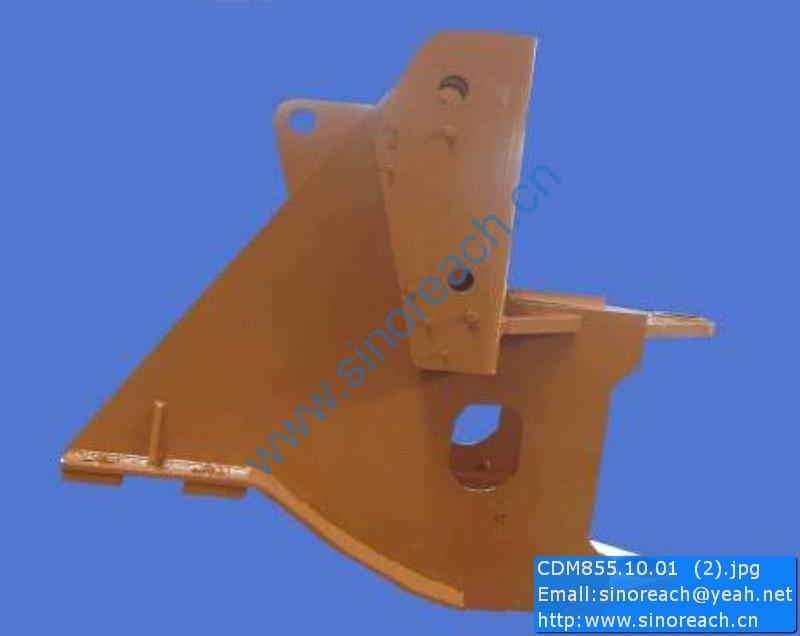

CDM855.10.01 Front frame CDM855 parts

1 WZ30-25.9.8 三通接头体 Tee Connector Body 2
2 ZL50G.12.8-1 接头 Connecter 4
3 ZL30G.8-1a 油缸接头 Cylinder Connector 1
4 ZL30C.9-12 直通接头 Direct Connector 1
5 JB982-77 密封垫圈 10 Seal Washer 10 8
6 JB982-77 密封垫圈 22 Seal Washer 22 2
7 GB3452.1-92 O型圈 9×1.8G O-Ring 9×1.8G 2
8 GB3452.1-92 O型圈 11.2×2.65G O-Ring 11.2×2.65G 2

1 WZ25-20.9B-19 铰接接头 Hinge Joint Connector 1
2 ZL30C.9-6 铰接接头 Hinge Joint Connector 2
3 ZL30C.9-7 接头螺塞 Hinge Bolt 2
4 ZL30C.9-9 直通端管接头体 Direct End Pipe Connector Body 4
5 ZL50G.9H-4 铰接接头 Hinge Joint Connector 1
6 ZL50G.9H-3 铰接螺钉 Hinge Screw 1
7 WZ25-20.9B-18 铰接螺塞 Hinge Bolt 2
8 LW560.9.4 自动放水阀 Auto-Drainage Regulator 1
9 GB3452.1-92 O型密封圈 9×1.8G O-Ring 9×1.8G 8
10 JB982-77 密封垫圈 22 Seal Washer 22 10
11 JB982-77 密封垫圈 12 Seal Washer 12 2
12 JB982-77 密封垫圈 14 Seal Washer 14 2
13 GB5783-86 螺栓 M10×25 Bolt M10×25 4
14 GB93-87 垫圈 10 Washer 10 4
15 GB5783-86 螺栓 M8×30 Bolt M8×30 4
16 GB93-87 垫圈 8 Washer 8 4
17 GB6170-86 螺母 M8 Nut M8 4
18 GB5783-86 螺栓 M12×35 Bolt M12×35 3
19 GB93-87 垫圈 12 Washer 12 3

一 ZL20D 空气加力泵 Air-hydraulic booster 1
1 LG40-3510021 活塞皮圈 Piston Rubber Ring 1
2 XM60-3510035 回位弹簧 Return Spring 1
3 GB3452.1-92 O型密封圈17×2.65 O-Ring 17×2.65 1
4 ZL20A-3510031 中心密封圈 Center Seal Ring 1
5 ZL20A-3510034 O型密封圈 O-Ring 1
6 XM60-3510070A 推杆座总成 Push Pole Assembly 1
7 ZL20A-3510041 液压皮圈 Hydraulic Rubber Ring 1

二 XM60C 脚制动阀 Foot Brake Valve 1
1 XM60C-3514020 脚踏板总成 Foot Pedal Assembly 1
2 XM60C-3514031 挺杆 Push Rod 1
3 GB5783-86 螺栓 M 8×25 Bolt M8×25 1
4 XM60C-3514043 平衡弹簧 Equilibrium Spring 1
5 XM60C-3514053 O型密封圈 O-Ring 1
6 CA141-3514030B 下阀门总成 Lower Valve Assembly 1
7 CA141-3514021 下阀门杆密封圈 Lower Valve Rod Seal Ring 1
8 XM60C-3514054 O型密封圈 O-Ring 1
