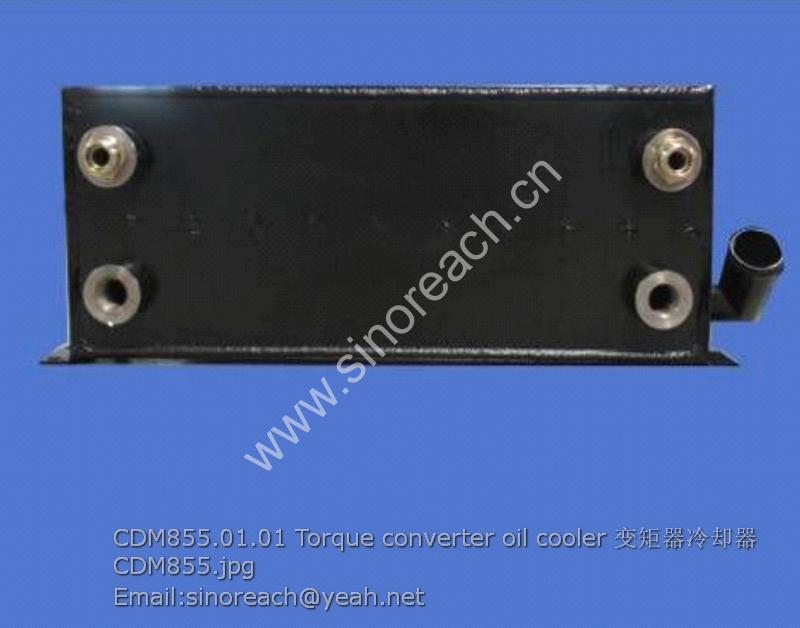

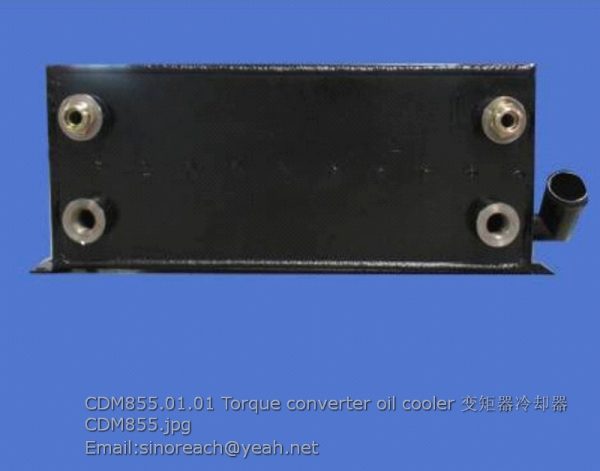

Home→CDM855.01.01 Torque converter oil cooler 2-SX48Z8-00- 00 LG853.01.07
CDM855.01.01 Torque converter oil cooler 2-SX48Z8-00- 00 LG853.01.07
Description
CDM855.01.01 Torque converter oil cooler 2-SX48Z8-00- 00 LG853.01.07
| ZL50D.31.1 |
缸体 |
Cylinder body |
1 |
|
| GB/T91 |
开口销Ф63×60 |
Cotter pin Ф63×60 |
1 |
|
| ZL50D.31-1 |
槽形螺母 |
Castle nut |
1 |
|
| |
活塞环 |
Piston ring |
2 |
|
| HJD200 |
组合密封圈 |
Combined seal |
1 |
|
| ZL50D.31-5 |
活塞 |
Piston |
1 |
|
| GB1235-76 |
O型圈90×3.1 |
O-RING Ф90×3.1 |
1 |
|
| GB/T893.1-86 |
档圈 120 |
Spacer 120 |
4 |
|
| GB/T9163-81 |
关节轴承GE80ES |
Joint bearing GE80ES |
2 |
|
| ZL50D.31-3 |
活塞杆 |
Piston rod |
1 |
|
| HJZ110 |
防尘圈 |
Dust ring |
1 |
|
| |
支承环 |
Supporting ring |
2 |
|
| HJY110 |
Y型密封圈 |
Y-ring |
1 |
|
| HJD110 |
组合密封圈 |
Combined seal |
1 |
|
| ZL50D.31-4 |
压板 |
Press plate |
1 |
|
| GB/T5781 |
螺栓 M20×55 |
Bolt M20×55 |
12 |
|
| GB/T93 |
垫圈 Ф20 |
Washer 20 |
12 |
|
| ZL50D.31-2 |
导向套 |
Guide sleeve |
1 |
|
| GB1235-76 |
O型圈 200×5.7 |
O-RING 200×5.7 |
1 |
|
| GB/T5781 |
螺栓 M10×45 |
Bolt M10×45 |
2 |
|
| GB/T93 |
垫圈10 |
Washer 10 |
2 |
|
| 408100 |
盘式制动器 |
Disc brake |
4 |
LG853.04.01.03 |
| 508101-102 |
进油管 |
Oil inlet pipe |
4 |
LG853.08.04 |
| 508001-001 |
前桥油管 |
Front axle oil pipe |
2 |
LG853.08.05 |
| 408001 |
前桥油路三通接头 |
Front axle oil channel T-connector |
1 |
LG853.08-012 |
| 308023D |
前桥制动钳油管 |
Front axle brake caliper oil pipe |
2 |
|
| LYG60A |
空气加力泵 |
Air booster pump |
2 |
LG853.08.10 |
| LG50F.08001A |
制动气管接头 |
Brake air pipe connector |
4 |
LG853.08-013 |
| 90C-C/8-I-L3200 |
制动阀至前加力泵软管 |
Hose from brake valve to front booster pump |
1 |
|
| 308005-005D |
气压表接管 |
Air pressure gauge connecting pipe |
1 |
|
| XM60D |
气制动总阀 |
Air brake master valve |
1 |
LG853.08.09 |
| 308006D |
测压接头 |
Pressure connector |
1 |
|
| GB/T1002 |
紫铜密封垫圈 |
Copper seal washer |
1 |
|
| C/8-I-L3300 |
储气罐至制动阀软管 |
Hose from air tank to brake valve |
1 |
|
| 90C-C/8-I-L1400 |
制动阀至后加力泵软管 |
Hose from brake valve to rear booster pump |
1 |
|
| JN130-3506025-A |
刹车软管 |
Brake hose |
1 |
LG853.08.11 |
| 508003-003 |
后桥油管 |
Rear axle oil pipe |
1 |
LG853.08.06 |
| LG50F.08009A |
卸荷阀支架 |
Relief valve bracket |
1 |
LG855.08-001 |
| GB/T93 |
垫圈 8 |
Washer 8 |
1 |
|
| GB/T5783 |
螺栓 M8×30 |
Bolt M8×30 |
1 |
|
| GB/T5782 |
螺栓 M8×85 |
Bolt M8×85 |
1 |
|
| GB/T6170 |
螺母 M8 |
Nut M8 |
1 |
|
| EQ135 |
卸荷阀 |
Relief valve |
1 |
LG853.08.08 |
| 308009-14D |
钢丝软管 |
Wired hose |
1 |
LG853.08.02 |
| LG30F.08400A |
储气罐总成 |
Air tank assembly |
1 |
LG855.08.02 |
| 508008-008C-Ⅱ |
至卸荷阀气管 |
Air pipe to relief valve |
1 |
|
| 408020 |
后桥油管三通接头 |
Rear axle oil channel T-connector |
1 |
LG853.08-014 |
↑
