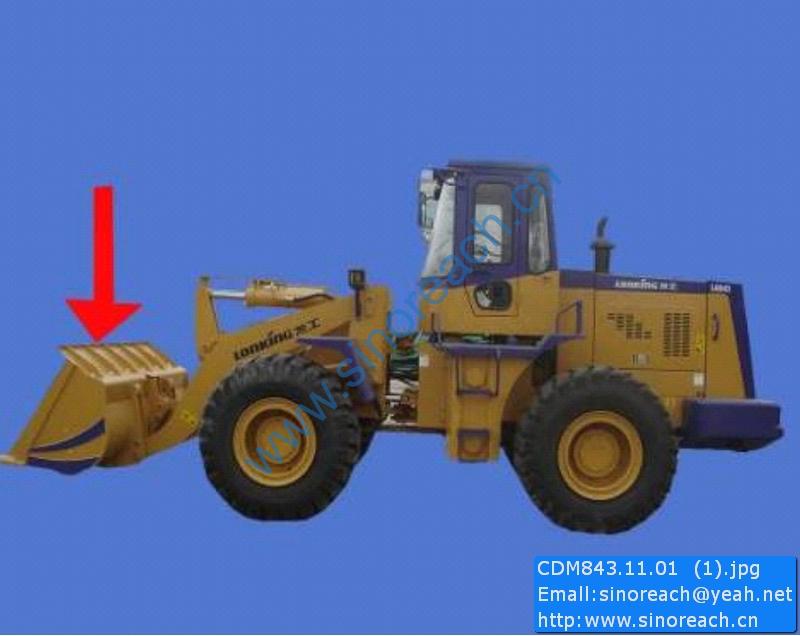

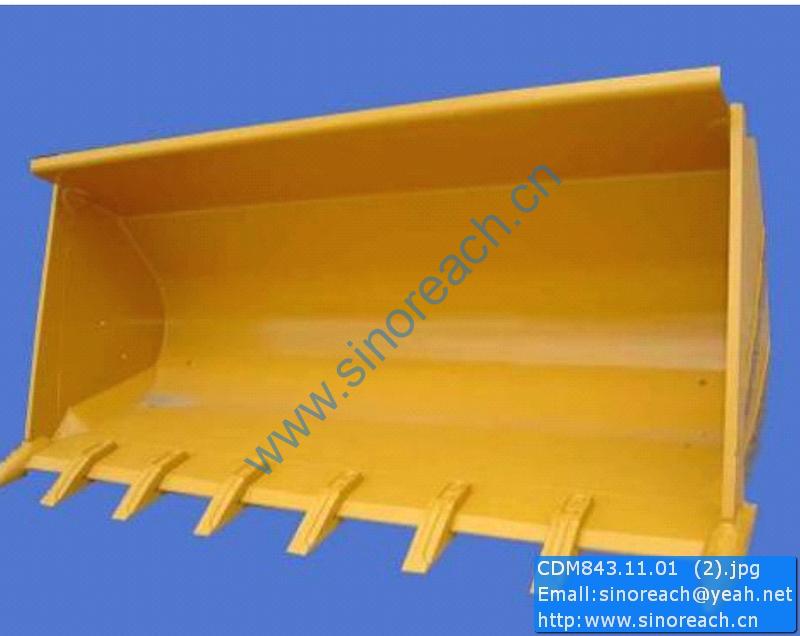

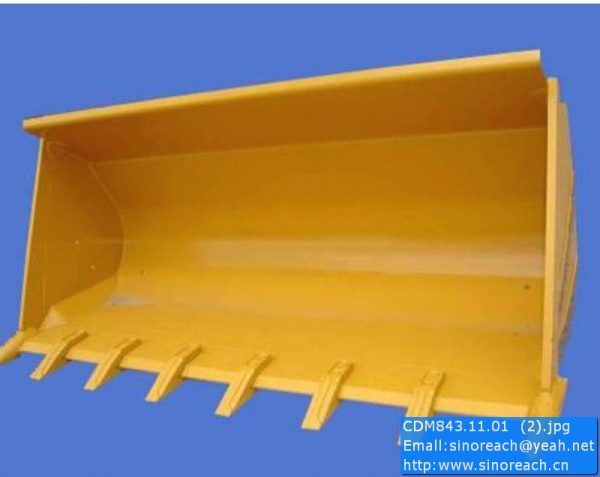

CDM843.11.01 Bucket CDM843 spare parts

37 ZL15E-30000 接头 Connector 1
38 07003-03342 垫圈33 Washer 1
39 ZL15E-40000 软管 Pipe 1
40 ZL15E-00004 接头 Connector 1
41 CBC25-FLX 齿轮泵 Gear pump 1
42 BD05-00022 管接头 tube connector 1
43 07281-00489 喉箍 Clamp 1
44 07260-02620 软管 Pipe 1
45 BD05-00021 管盖 Pipe cover 1
46 ZL15A-00006 垫 Washer 1

1 WZ30-25.6.3 软轴支架 Soft Shaft Bracket 1
2 WZ30-25.6.4 摇臂 Roll Arm 2
3 WZ30-25.6-1 销轴 Pin Shaft 1
4 GB882-86 销轴B10×30 Pin Shaft B10×30 2
5 GB95-85 垫圈10 Washer 10 5
6 GB91-86 销3.2×20 Pin 3.2×20 3
7 GB882-86 销轴B6×26 Pin Shaft B6×26 2
8 GB95-85 垫圈6 Washer 6 2
9 GB91-86 销2×16 Pin 2×16 2
10 GB5783-86 螺栓 M10×35 Bolt M10×35 2
11 GB93-87 垫圈 10 Washer 10 2

1 JFZ2241 发电机 Alternator 1
2 Z 3/8″ 水温感应塞 Water Temperature Sense Plug 1
3 QD265G 起动机 Starter 1
4 WZ30-25.7-8 电瓶与起动机联接线 Battery With Starter Electrical Wire 1
5 Z 1/8″ 发动机前油压表接头 Engine Oil Pressure Front Gauge 1
表管 Connector And Pipe
6 Z 1/8″ 变速箱油压表接头 Transmission Oil Pressure Gauge 1
表管 Connector And Pipe
7 GB5783-86 螺栓 M6×16 Bolt M6×16 2
8 GB93-87 垫圈 6 Washer 6 2
9 DL34DG-24 双音喇叭 Electrical Horn 1
10 Z 1/8″ 发动机后油压表接头 Engine Oil Pressure Rear Gauge 1
表管 Connector And Pipe
11 Z 3/8″ 变速箱油温感应塞 Oil Temperature Sense Plug 1
12 WZ30-25.7A-3 前车身线束 Front Bodywork Wiring Harness 1
13 Z 1/4″ 气压表接头表管 Air Pressure Gauge Connector 1
And Pipe
14 WZ30-25.7A-4 前灯线束 Front Lamp Wiring Harness 1
15 JK613B 制动灯开关 Brake Lamp Switch 1
16 WZ30-25.7-6 电瓶与电源继电器联 Battery With Power Relay 1
接线 Electrical Wire
17 JD231/24V 电源继电器 Power Relay 1
18 GB5783-86 螺栓 M8×20 Bolt M8×20 2
19 GB93-87 垫圈 8 Washer 8 2
20 0～0.8Mpa 发动机后油压表 Engine Oil Pressure Rear Gauge 1
21 40～120℃ 发动机后水温表 Engine Water Temperature Rear Gauge 1
22 FM1402-24V 倒车蜂鸣器 Reverse Warning Buzzer 1
23 WZ30-25.7A-6 后灯线束 Rear Lamp Wiring Harness 1
24 WZ30-25.7A.1 电瓶箱总成 Battery Box ASS’Y 1
25 GB6170-86 螺母 M10 Nut M10 4
26 GB93-87 垫圈 10 Washer 10 4
27 GB5783-86 螺栓 M10×35 Bolt M10×35 4
28 WZ30-25.7A-1 仪表台 Meter Dais 1
