Description

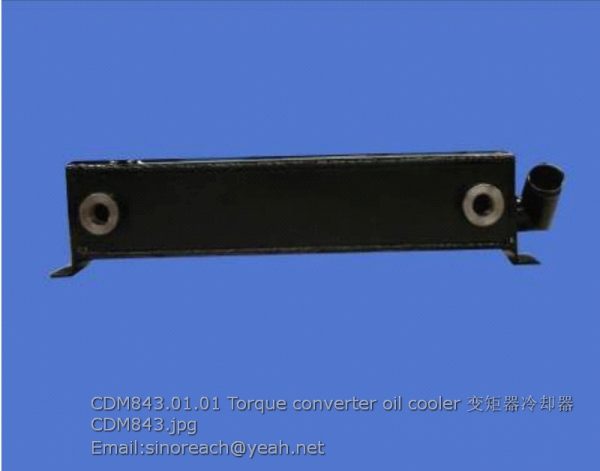

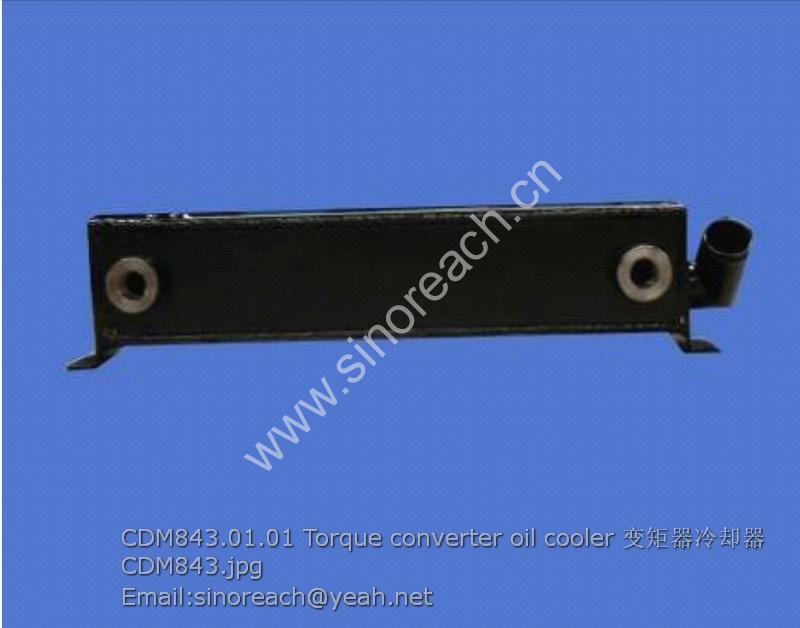

CDM843.01.01 Torque converter oil cooler FOR LONKING WHEEL LOADER SPARE PARTS CDM843
| 90B-B/22/22-Ⅱ-L600 | 变速泵至滤油器胶管 | Hose from transmission pump to oil filter | 1 | |
| LG30F.02Ι.02-009 | 滤油器回油接头 | Filter oil-return connector | 1 | 302021D |
| JB1002-77 | 密封垫圈22 | Seal washer 22 | 1 | |
| LG853.02.02.01 | 双变滤油器 | Oil filter | 1 | YL-98-00 |
| GB/T5782 | 螺栓M8×45 | Bolt M8×45 | 4 | |
| GB/T6170 | 螺母M8 | Nut M8 | 4 | |
| GB/T97.1 | 垫圈M8 | Washer M8 | 8 | |
| LG30F.02Ι.02-002 | 滤油器进油接头 | Filter oil-inlet connector | 1 | LG30F.02020A |
| JB/T1002 | 密封垫圈30 | Seal washer 30 | 1 | |
| φ19×2×110 | 回油胶管 | Oil-return hose | 1 | |
| JB/T8870-1999 | 管夹(φ22-32) | Pipe clip(φ22-32) | 4 | |
| GB5628.2-85 | 接头体A5 | Adapter A5 | 1 | |
| JB1002 | 密封垫圈10 | Seal washer 10 | 1 | |
| LG853.15.35 | 变速阀压力表油管（1300） | Transmission valve pressure gauge tube | 1 | |
| φ19×2×250 | 回油胶管 | Oil-return hose | 1 |
| GB/T894.1 | 挡圈60 | Spacer 60 | 2 | |
| GB/T276-94 | 轴承60×95×18 | Bearing 60×95×18 | 4 | |
| YJ31502A-12 | 被动齿轮 | Driven gear | 2 | |
| YJ31502A.3-3 | 轴套 | Shaft sleeve | 2 | |
| YJ31502A.4-1 | 泵驱动轴总成（Ⅱ） | Pump shaft assembly Ⅱ | 1 | |
| GB/T893.1 | 挡圈95 | Spacer 95 | 2 | |
| YJ31502D.1-1 | 泵驱动轴总成（Ⅰ） | Pump shaft assembly Ⅰ | 1 | |
| 外方堵头ZG1/2〃 | Square plug ZG1/2〃 | 2 | ||
| GB/T5783 | 螺栓M8×12 | Bolt M8×12 | 8 | |
| GB/T93 | 垫圈8 | Washer 8 | 8 | |
| YJSW315-4AI-5 | 盖板 | Cover board | 2 | |
| GB/T825 | 螺钉M12 | Screw M12 | 1 | |
| YJ31502D-5 | 壳体 | Housing body | 1 | |
| YJ31502A-14 | 止口环 | Stop ring | 1 | |
| GB3452.1-92 | O型密封圈42.5×2.65 | O-ring 42.5×2.65 | 1 | |
| JB/T2600-80 | 油封SD70×95×12 | Oil seal SD70×95×12 | 1 | |
| YJ31502C-10 | 端盖 | End cover | 1 | |
| GB/T93 | 垫圈10 | Washer 10 | 8 | |
| GB/T5782 | 螺栓M10×55 | Bolt M10×55 | 8 | |
| YJ31502C-9 | 轴套 | Shaft sleeve | 1 | |
| YJ31502D-6 | 输出法兰 | Output flange | 1 | |
| YJ31502C-7 | 挡圈 | Spacer | 1 | |
| GB/T889 | 螺母 | Nut | 1 |
| YJ31502D-3 | 驱动齿轮 | Drive gear | 1 | |
| GB/T5783 | 螺栓M12×30 | Bolt M12×30 | 8 | |
| GB/T93 | 垫圈12 | Washer 12 | 8 | |
| YJ31502D-4 | 驱动齿圈 | Drive ring gear | 1 | |
| GB/T5783 | 螺栓M10×30 | Bolt M10×30 | 8 | |
| GB/T93 | 垫圈10 | Washer 10 | 8 | |
| YJ31502D-2 | 定心轴头 | Centering shaft end | 1 | |
| GB3452.1-92 | O型密封圈95×2.65 | O-ring 95×2.65 | 1 | |
| YJ31502A-5 | 泵轮罩 | Pump wheel housing | 1 | |
| GB/T5783 | 螺栓M8×20 | Bolt M8×20 | 2 | |
| GB/T93 | 垫圈8 | Washer 8 | 38 | |
| YJ31502A-2 | 挡圈 | Spacer | 1 | |
| GB/T894.1 | 挡圈65 | Spacer 65 | 1 | |
| GB/T276-94 | 轴承6013（65×100×18） | Bearing 6013（65×100×18） | 1 | |
| YJ31502A.2-1 | 涡轮 | Turbine | 1 | |
| YJ31502A.2-2 | 涡轮毂 | Turbo hub | 1 | |
| GB/T109 | 铆钉 | Rivet | 10 | |
| GB/T894.1 | 挡圈45 | Spacer 45 | 1 | |
| GB/T894.1 | 挡圈45 | Spacer 45 | 1 | |
| YJ31502A-4 | 导轮 | Idler wheel | 1 | |
| YJ31502A-17 | 挡板 | Baffle | 1 | |
| YJ31502A-7 | 泵轮 | Pump wheel | 1 | |
| GB/T5783 | 螺栓M8×30 | Bolt M8×30 | 36 |
