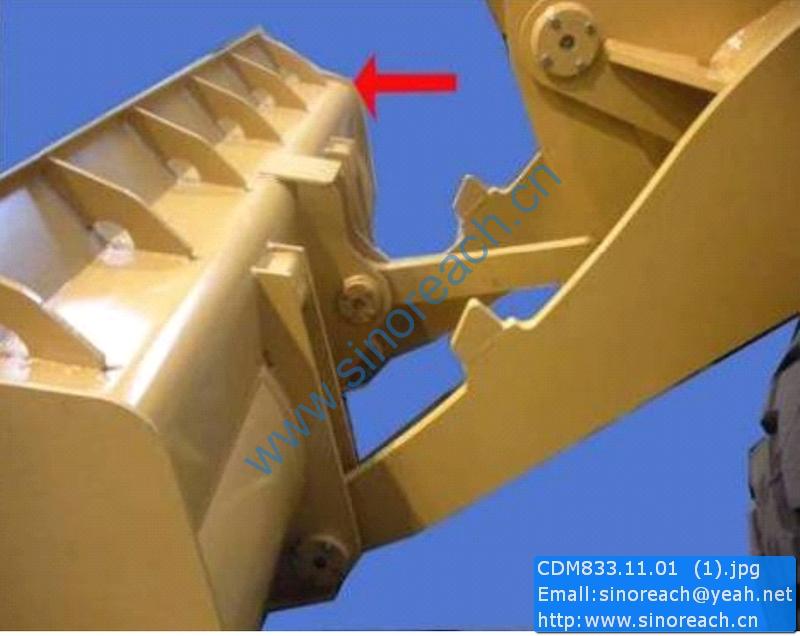

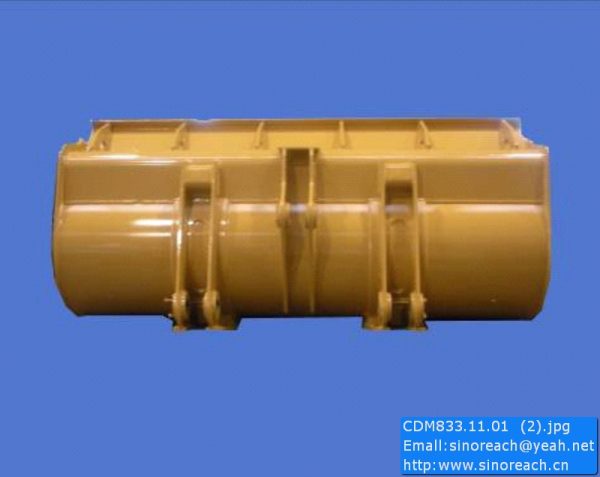

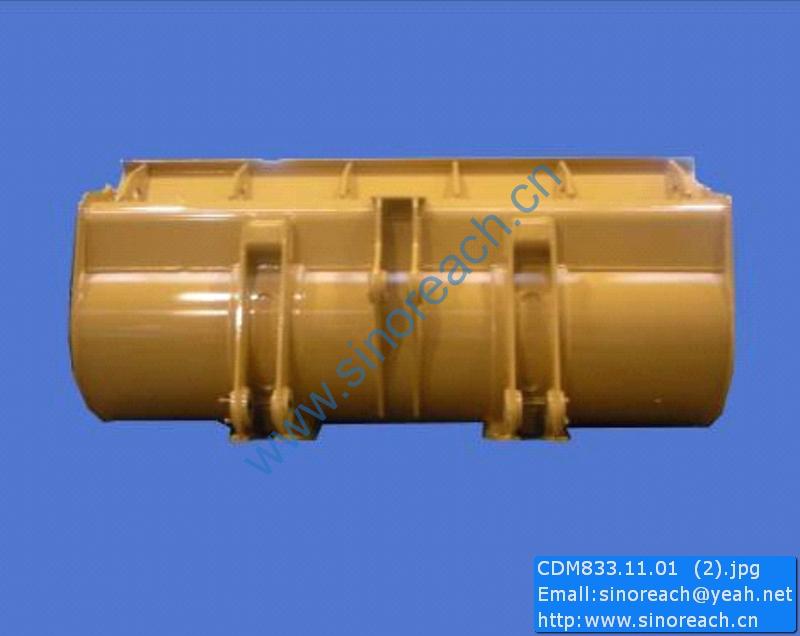

CDM833.11.01 Bucket for CDM833 parts

1 BD05-01012 挡圈 Snap ring 1
2 GB305-89 挡圈80 Snap ring 80 2
3 GB277-82 轴承50208 Bearing 50208 2
4 BD05-01001 挡圈 Snap ring 1
5 GB894.1-86 挡圈50 Snap ring 50 2
6 BD05-01002 齿轮 Gear 2
7 BD05-01010 弹簧支承座 Spring seat 2
8 BD05-01005 离合器弹簧 Clutch spring 2
9 GB893.1-86 挡圈150 Snap ring 150 2
10 BD05-01003 离合器活塞压板 Clutch piston pressure plate 2
11 BD05-01004 垫板 Plastic sheet 8
12 BD05-01300 摩擦片 Friction disc 8
13 GB3452.1-82 O型圈 O-ring 2
14 BD05-01101 活塞 Piston 2
15 BD05-01103 密封环 Sealing ring 2
16 BD05-02100 倒退二档离合器壳体 Retreat 2 st-Clutch case assy 1
17 07043-00108 螺塞 Plug screw 2
21 BD05-01008 密封环 Sealing ring 3
22 GB276-82 轴承308 Bearing 308 2
23 GB893.1-86 挡圈68 Snap ring68 2
24 BD05-02001 挡环 Snap ring 1
25 GB276-82 轴承308 Bearing 308 2
26 01010-31235 螺栓 Bolt
6
27 BD05-02201 齿轮 Gear 1
28 BD05-02202 齿轮 Gear 1
29 BD05-02002 挡环 Snap ring 1
30 BD05-02203 止动垫 Stop pad 3

1 01010-31025 螺栓M10×25 Bolt M10×25 6
2 01602-11030 垫圈10 Washer 10 6
3 BD05-00018 端盖 End cover 1
4 07000-02085 O型圈85×25 O-ring 85×25 1
5 GB276-82 轴承308 Bearing 308 2
6 BD05-00017 齿轮 Gear 1
7 BD05-00019 隔套 Sleeve 1
8 BD05-00002 齿轮 Gear 1
9 BD05-00003 中间轴 Intermediate shaft 1
10 BD05-00005 隔套 Sleeve 1
11 BD05-00006 垫 Washer 1
12 BD05-00004 端盖 End cover 1
