Description

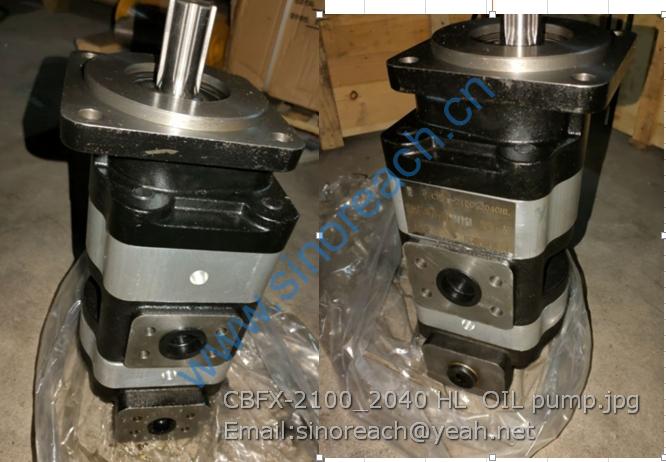

CBFX-2100/2040HL gear pump
4012000003 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8
4013000011 NUT GB6170-M12 EpZn-8
4015000168 WASHER GB97.1-12EpZn-300HV
4011000478 BOLT GB16674-M12*55EpZn-8.8
4017000018 CLAMP JB8870-d70
4011000095 BOLT GB5783-M16*35EpZn-8.8
4015000181 WASHER GB97.1-16EpZn-300HV
4041000564 JOINT LGB120-02620
29200004021 OIL OUTLET TUBE OF STEERING GEAR(A)
29200004031 OUTLET TUBE FROM STEERING DEVICE(B)
4011000493 BOLT GB16674-M8*90EpZn-8.8
4013000033 NUT GB6170-M8EpZn-8
4015000072 WASHER GB97.1-8EpZn-300HV
4041000131 JOINT LGB120-01412
4041000677 PIPE LGB164-010085
29200007931 RIGHE-ANGLE CONNECTOR
4041000187 JOINT LGB120-02622
4041000771 O-RING LGB168-11924
29210004021 TUBE
29210004031 TUBE
4011000366 BOLT JB999-M18*1.5*40-35
4030000058 WASHER JB1002-18-T2
29210004061 PERMAMENT SEAT
29210004071 RUBBER BAR
4011000051 BOLT GB5782-M10*70EpZn-8.8
4015000197 WASHER GB96.1-10EpZn-300HV
4120001821102 PISTON ROD
4120001821104 CYLINDER BODY
4014000237 SCREW GB70.1-M6*16-8.8
4120001821105 PISTON
I7-4120000709 OFPRIORITY VALVE
4120000709001 THREAD PLUG
29220000021 WASHER
29220000031 CONNECTER
29010000051 WASHER
29220007711 TUBE
29220008501 CONNECTOR
4011000283 BOLT JB999-M10*1*18-35
29230000141 WASHER
29220007921 TUBE
29220007701 TEE OF THE OIL LINE
29220007691 JOINT
29010000041 BOLT
29010000061 WASHER
4011000455 BOLT GB16674-M8*25EpZn-8.8
29220000131 CONNECTOR
29220006561 CONNECTOR
29220000161 CONNECTER
29220000171 WASHER
4011000475 BOLT GB16674-M10*30EpZn-8.8
4015000162 WASHER GB97.1-10EpZn-300HV
4015000025 WASHER GB93-10-65Mn
4013000007 NUT GB6170-M10EpZn-8
29010000071 CONNECTOR
4030000055 PLUG JB1000-M22*1.5-35
29010000061 WASHER
4030000311 PLUG JB1000-M10*1EpZn-35
29230000141 WASHER
J4-2923000651 PARKING BRAKE SYSTEM
4016000145 PIN GB882-B10*28EpZn-35
4016000183 PIN GB91-3.2*22EpZn-Q235A
4011000455 BOLT GB16674-M8*25EpZn-8.8
4120000988 OPERATING GEAR LG23-CZJG-918
4016000113 SPLIT PIN GB91-6.3*63EpZn-Q235A
29250001061 SLOTTED NUT
29250006521 BUSH
4015000025 WASHER GB93-10-65Mn
4011000048 BOLT GB5782-M10*50EpZn-8.8
4011000197 BOLT GB5783-M12*30EpZn-8.8
4040000001 WASHER LGB001-12*45*6
29250001351 RUBBER SLEEVE
4015000256 WASHER GB96.1-8EpZn-300HV
29240007781 FRONT FRAME
4043000148 PIN LGB301-50*75*145-40Cr
29250006571 FRONT HOOD
4011000102 BOLT GB5783-M8*16EpZn-8.8
29250000301 SPACER
4043000067 SPACER LGB303-50*100*1
4011000081 BOLT GB5783-M10*20EpZn-8.8
4011000560 BOLT GB16674-M12*25EpZn-8.8
4043000151 SPACER LGB303-60*120*1
4043000141 SPACER LGB303-60*120*2
29250000311 CLIP
4014000024 SCREW GB818-M6*10EpZn-4.8
4015000035 WASHER GB93-6-65Mn
29250006591 RIGHT BRACKET OF LAMP
29250006601 RIGHT FRONT FENDER
29250006611 LEFT BRACKET OF LAMP
29250006621 LEFT FRONT FENDER
4040000008 WASHER LGB001-10
29270008621 OSCILLATING FRAME
29250000311 CLIP
4015000035 WASHER GB93-6-65Mn
4014000024 SCREW GB818-M6*10EpZn-4.8
29270009101 RUBBER SLOEVE
4011000087 BOLT GB5783-M12*20EpZn-8.8
4040000001 WASHER LGB001-12*45*6
29270006651 FRONT PIN OF MOUNT BAR
29270000081 HOLDING RING
29270006671 MOUNT BAR
