Description

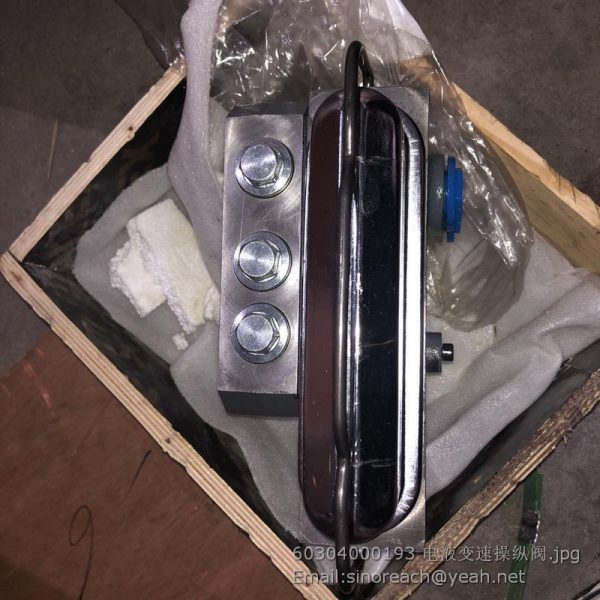

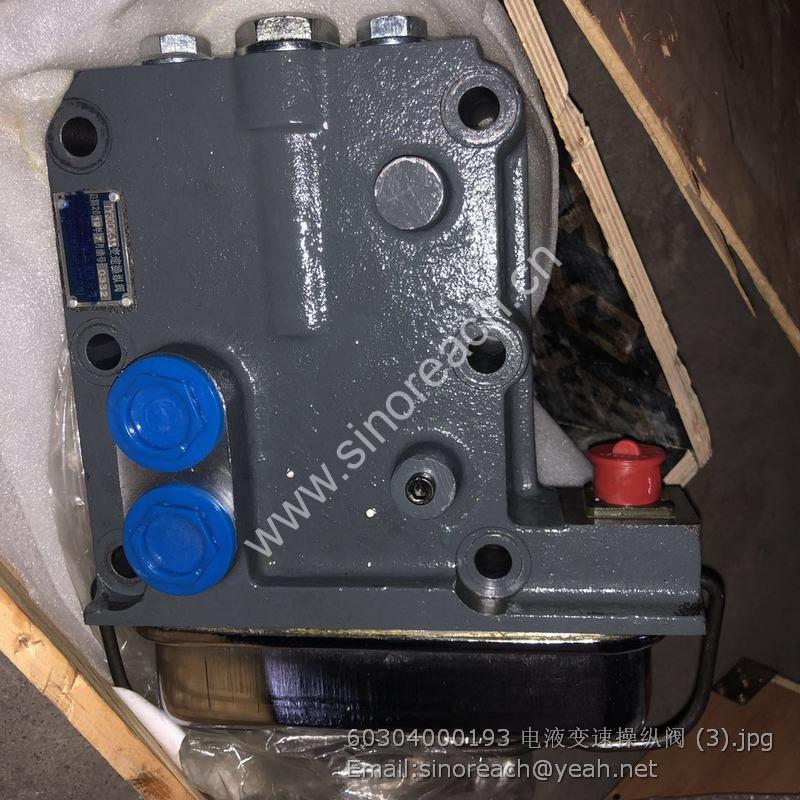

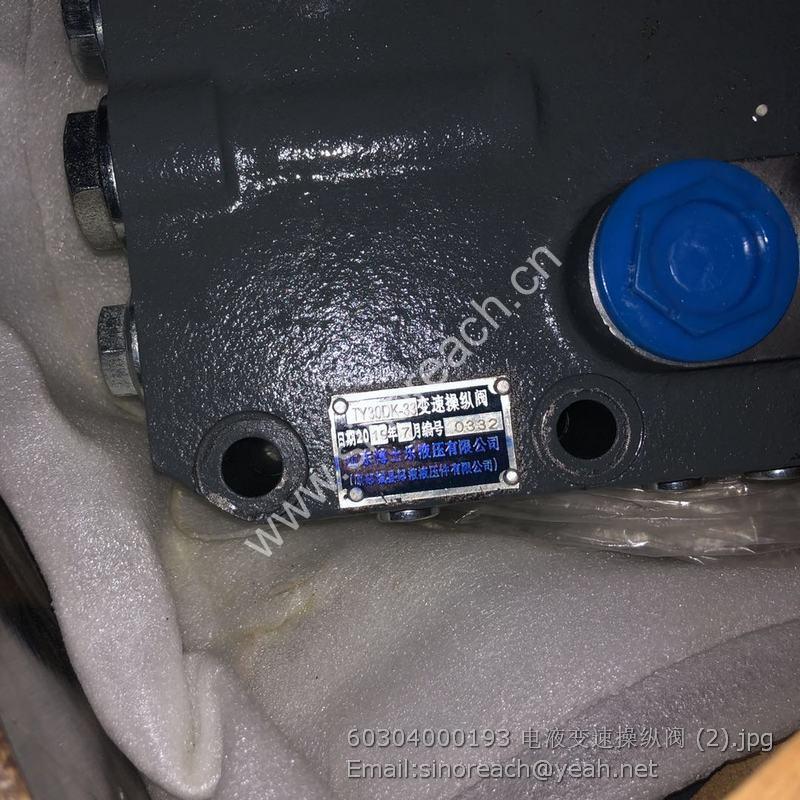

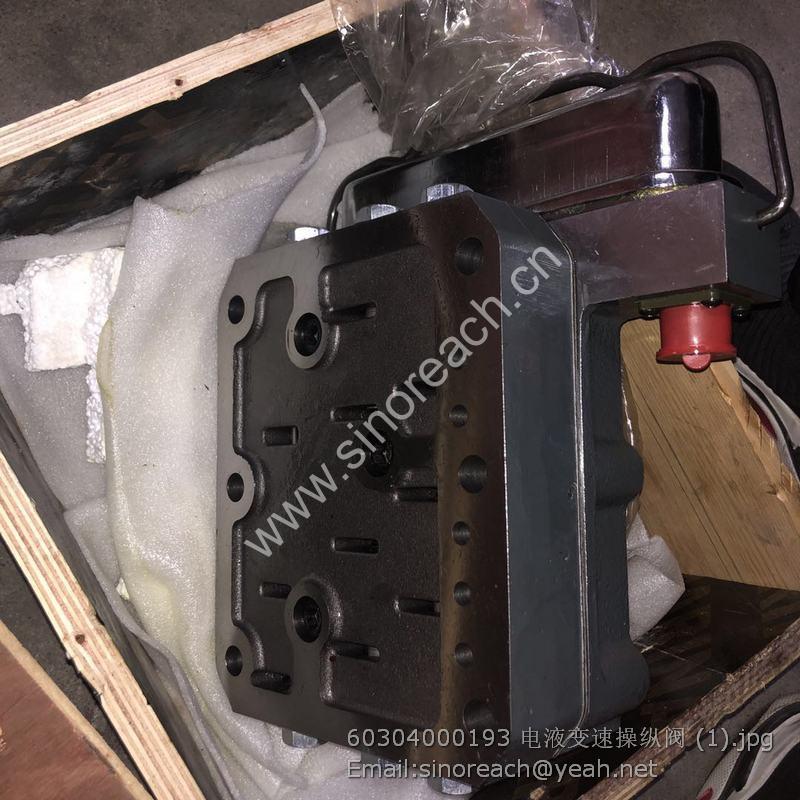

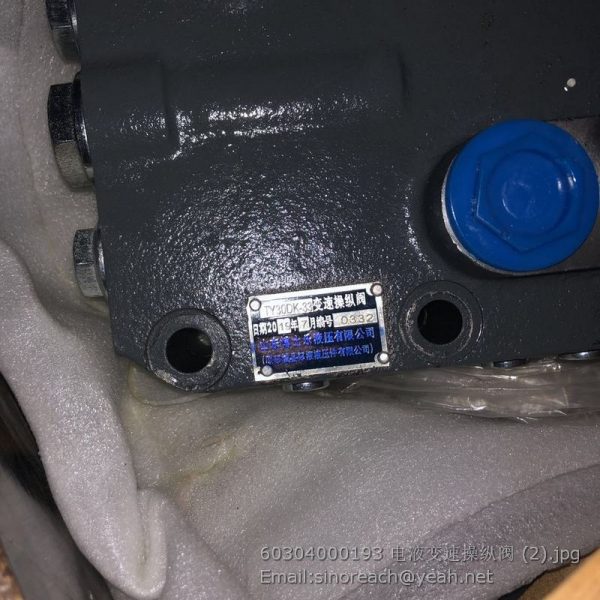

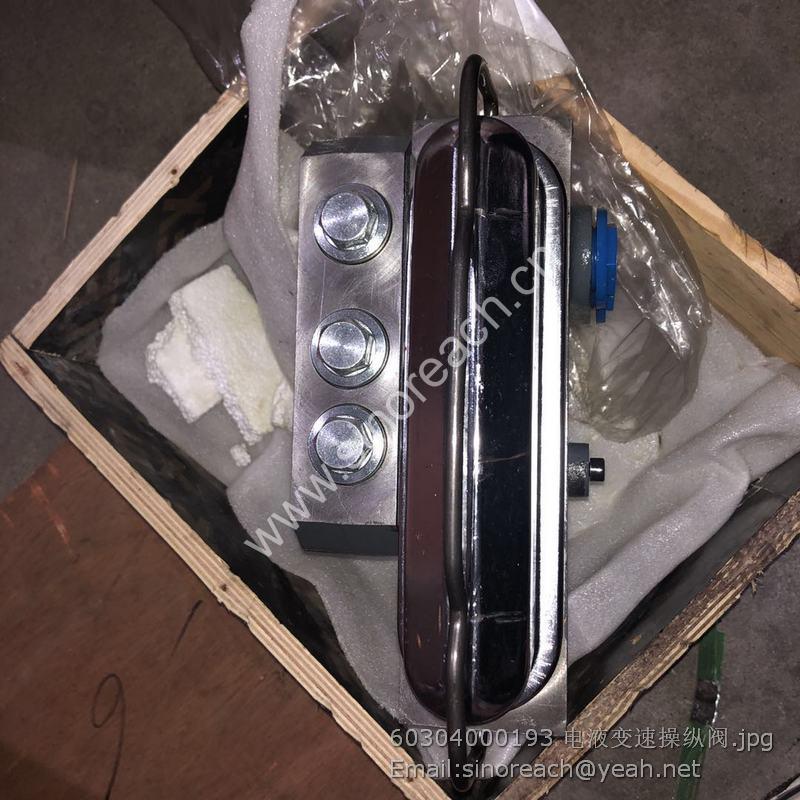

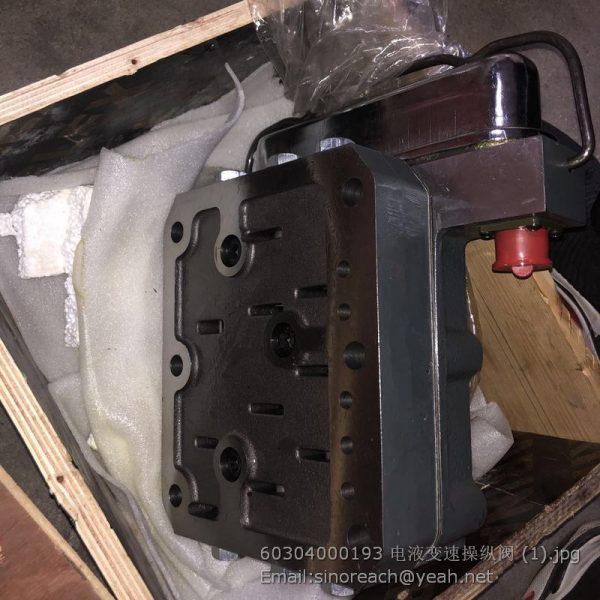

60304000193 Electric-hydraulic speed control valve TY30DK-33 for LONKING CDM835E
| 1 | 408100 | 盘式制动器 | Disc brake | 4 | LG853.04.01.03 |
| 2 | 508101-102 | 进油管 | Oil inlet pipe | 4 | LG853.08.04 |
| 3 | 508001-001 | 前桥油管 | Front axle oil pipe | 2 | LG853.08.05 |
| 4 | 408001 | 前桥油路三通接头 | Front axle oil channel T-connector | 1 | LG853.08-012 |
| 5 | 308023D | 前桥制动钳油管 | Front axle brake caliper oil pipe | 2 | |
| 6 | LYG60A | 空气加力泵 | Air booster pump | 2 | LG853.08.10 |
| 7 | LG50F.08001A | 制动气管接头 | Brake air pipe connector | 4 | LG853.08-013 |
| 8 | 90C-C/8-I-L3200 | 制动阀至前加力泵软管 | Hose from brake valve to front booster pump | 1 | |
| 9 | 308005-005D | 气压表接管 | Air pressure gauge connecting pipe | 1 | |
| 10 | XM60D | 气制动总阀 | Air brake master valve | 1 | LG853.08.09 |
| 11 | 308006D | 测压接头 | Pressure connector | 1 | |
| 12 | GB/T1002 | 紫铜密封垫圈 | Copper seal washer | 1 | |
| 13 | C/8-I-L3300 | 储气罐至制动阀软管 | Hose from air tank to brake valve | 1 | |
| 14 | 90C-C/8-I-L1400 | 制动阀至后加力泵软管 | Hose from brake valve to rear booster pump | 1 | |
| 15 | JN130-3506025-A | 刹车软管 | Brake hose | 1 | LG853.08.11 |
| 16 | 508003-003 | 后桥油管 | Rear axle oil pipe | 1 | LG853.08.06 |
| 17 | LG50F.08009A | 卸荷阀支架 | Relief valve bracket | 1 | LG855.08-001 |
| 18 | GB/T93 | 垫圈 8 | Washer 8 | 1 | |
| 19 | GB/T5783 | 螺栓 M8×30 | Bolt M8×30 | 1 | |
| 20 | GB/T5782 | 螺栓 M8×85 | Bolt M8×85 | 1 | |
| 21 | GB/T6170 | 螺母 M8 | Nut M8 | 1 | |
| 22 | EQ135 | 卸荷阀 | Relief valve | 1 | LG853.08.08 |
| 23 | 308009-14D | 钢丝软管 | Wired hose | 1 | LG853.08.02 |
| 24 | LG30F.08400A | 储气罐总成 | Air tank assembly | 1 | LG855.08.02 |
| 25 | 508008-008C-Ⅱ | 至卸荷阀气管 | Air pipe to relief valve | 1 | |
| 26 | 408020 | 后桥油管三通接头 | Rear axle oil channel T-connector | 1 | LG853.08-014 |
| 27 | LG50F.08004-005A | 后加力泵支座 | Rear booster pump bracket | 1 | LG855.08.01 |
| 28 | GB/T5783 | 螺栓 M12×30 | Bolt M12×30 | 4 | |
| 29 | GB/T93 | 垫圈 12 | Washer 12 | 4 | |
| 30 | GB/T5783 | 螺栓 M16×16 | Bolt M16×16 | 4 | |
| 31 | GB/T93 | 垫圈 6 | Washer 6 | 4 | |
| 32 | LG50F.08002A | 管夹 18 | Pipe clip 18 | 2 | |
| 33 | GB/T5783 | 螺栓 M12×30 | Bolt M12×30 | 2 | |
| 34 | GB/T93 | 垫圈12 | Washer 12 | 2 |
| 1 | 408121 | 螺栓M22 | Bolt M22 | 4 | |
| 2 | GB/T93 | 垫圈 22 | Washer 22 | 4 | |
| 3 | 408105-106 | 内钳 | Inner caliper | 1 | |
| 4 | 408112 | 矩形密封圈 | Rectangular seal ring | 4 | |
| 5 | O-RING GB1235-76 | O型圈 Ф20×2.4 | O-ring Ф20×2.4 | 2 | |
| 6 | 408113 | 活塞 | Piston | 4 | |
| 7 | 408110 | 防尘罩 | Dust cover | 4 | |
| 8 | 403111 | 卡圈 | Snap ring | 4 | |
| 9 | 408107-108 | 制动片 | Disc brake disc | 2 | LG853.04.01.03.02 |
| 10 | 408109-109 | 外钳 | Outer caliper | 1 | |
| 11 | 408103 | 放气嘴 | Air bleed nozzle | 2 | |
| 12 | 403104 | 接头 | Connector | 2 | |
| 13 | 408124 | 垫圈 | Washer | 2 | |
| 14 | 408120 | 螺栓M20×1.5×56 | Bolt M20×1.5×56 | 4 | LG853.04.01-020 |
| 15 | GB/T93 | 垫圈20 | Washer 20 | 4 | |
| 16 | 408114 | 螺栓销 | Bolt pin | 2 | LG853.04.01.03-011 |
| 17 | 408101 | 管接头 | Pipe connector | 1 | |
| 18 | 408115 | 垫圈 | Washer | 1 | |
| 19 | GB/T93 | 垫圈 10 | Washer 10 | 2 | |
| 20 | 408102 | 垫圈 | Washer | 8 |
