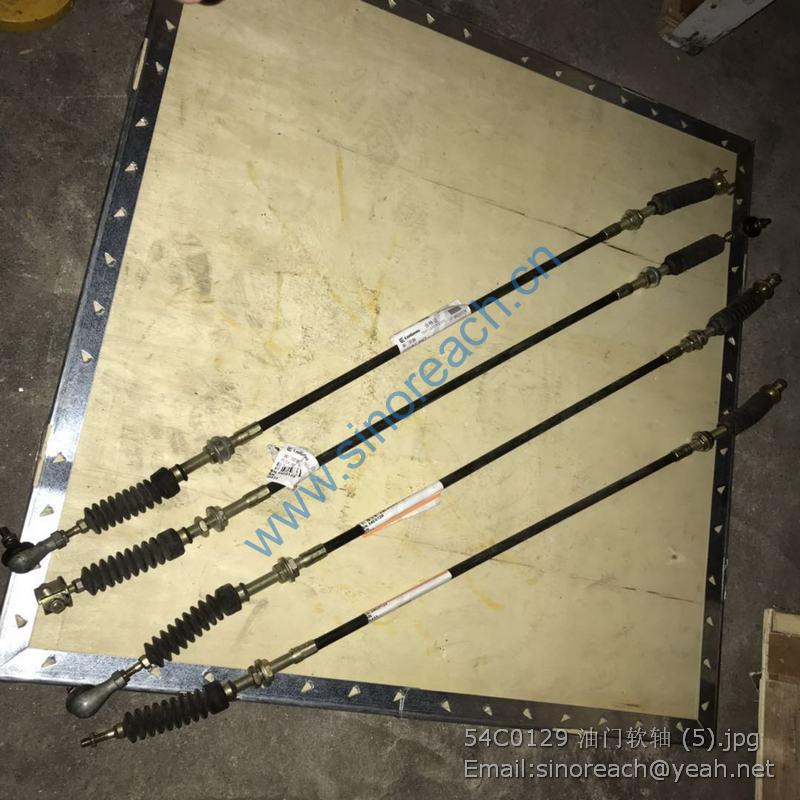

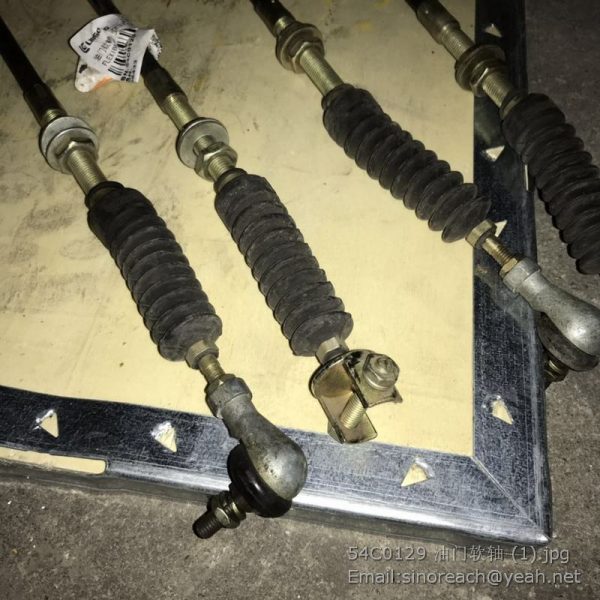

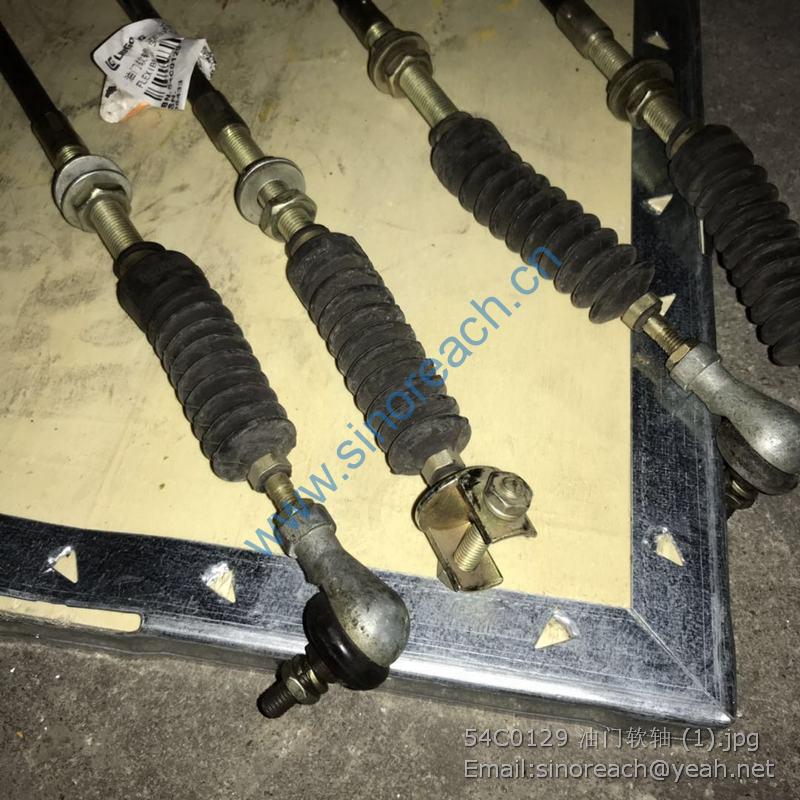

54C0129 THROTTLE CABLE

1 12D0032 ZL50G.3A.1.1 输入法兰 FLANGE 1
2 03B0050 BS305-31 带槽螺母 NUT 1
3 08B0032 GB91-86 销 PIN 6.3×60 1
4 13B0169 B1SL 348203 油封 SEAL 70×95×13 2
5 53A0307 密封盖 COVER 1
6 00B0275 GB5783-86 螺栓 BOLT M14×55-8.8-ZN.D 8
7 06B0013 GB93-87 垫圈 WASHER 14 8
8 80A0021 ZL50C.2.1-3 垫密片 SPACER 1
9 57A0024 ZL50C.2.1-4 调整垫片 ADJUSTING SHIM 1
10 43A0014
前桥主动螺
旋锥齿轮
DRIVING HELICAL
BEVEL GEAR
1
11 55A0077 ZL50C.2.1-6 轴承套 SPACER 1
12 23B0019 GB/T297-94
圆锥滚子轴
承31312
ROW TAPERED
ROLLER BEARING
60×130×33.5 1
13 44C0019 ZL50C.2.1.2 止推螺栓 THRUST BOLT 1
14 03B0154 GB6173-86 螺母 NUT M27×2-04-ZN.D 1
15 76A0011 ZL50C.2.1-7 锁紧片 LOCK STRAP 1
16 22B0006 NUP2208ET
NSK 圆 柱 滚
子轴承
ROW CYLINDRICAL
ROLLER BEARING
40×80×23 1
17 07B0038 GB894.1-86 挡圈 RING 40 1
18 41C0031 托架总成 BRACKET ASSEM. 1
19 03B0062 ZL50C.2.1-10 调整螺母 ADJUSTING NUT 2
20 41C0062
DL1600差速
器
DIFFERENTIAL
CASE
1
21 02B0015 GB32.1-88 螺栓 BOLT M22×100-8.8-ZN.D 4
22 06B0270 淬硬垫圈 WASHER 4
23 40B0006 铁丝 WIRE Φ1.5×450 2
24 21A0040 ZL50C.2.1-14 锁紧片 LOCK STRAP 2
25 02B0012 GB32.1-88 螺栓 BOLT M10×20-8.8-ZN.D 2
26 06B0002 GB93-87 垫圈 WASHER 10 2
27 43A0015
前桥大螺旋
锥齿轮
DRIVEN HELICAL
BEVEL GEAR
1
28 60A1027 螺栓 BOLT 12
29 03V0537 GB/T6171-2000 螺母 NUT M14×1.5-10-ZN.D 12
30 06B0214 淬硬垫圈 WASHER 12
31 23B0012 GB/T297-94 圆锥滚子轴
承32216
ROW TAPERED
ROLLER BEARING
80×140×35.25 2
32 55A0078 ZL50C.2.1-18 轴套 SPACER 1
33 57A0027 ZL50C.2.1-19 垫片 SPACER 1
34 23B0018 GB/T297-94 圆锥滚子轴
承31311
ROW TAPERED
ROLLER BEARING
55×120×31.5 1
35 12B0105 GB3452.1-92 O形圈 O RING 42.5×5.3 G 1
36 81A0072 垫片 WASHER 1

1 70A0048 4481 313 014 差速器壳体
DIFFERENTIAL
CASE
1
2 56A0193
垫片
WASHER
2
3 56A0194
垫片
WASHER
2
4 43A0067 4061 313 363
半轴齿轮
GEAR
2
5 34C0177
外摩擦片
4
6 85A0133 4061 313 235
内摩擦片
4
7 72A0260
4481313011
承压盘
2
8 60A0310 4061 313 110
差速器轴
2
9 43A0066
锥齿轮
GEAR
4
10 70A0049 4481 313 016 差速器盖
DIFFERENTIAL
CAP
1
11 00B0012 GB5783-86 螺栓
BOLT
M10×25-8.8-ZN.D 2

1
01B0167 GB5785-86
螺栓
BOLT M24×2×130-10.9 1
2
03B0200 CB082428-3
锁紧螺母
LOCK NUT M24×2 8
3
24D0047
前摆动支架
BRACKET 1
4
60A0011 ZL50C.2-26
定位销
LOCATOR 2
5
34C0087 ZL50F.3.4
密封圈
SEAL 2
6
00A0259
ZL50CⅢ.3-1 卡环
RING 1
7
83A0045 ZL50F.3.3-1
衬套
SPACER 1
8
41C0027
后 桥 主 传 动
-DL1600
REARAXLEMAINTR
ANSMISSION
1
9
00B0245 GB5783-86
螺栓
BOLT M16×50-10.9-ZN.D 14
10
06B0177 5P8247
垫圈
WASHER 16 14
11
62A0022
左半轴
LEFT HALF SHAFT 1
12
09B0002 GB827-86
铆钉
RIVET 2×5 4
13
74A1189
桥铭牌
FILM 1
14
81A0030
密封垫
GASKET 1
15
66A0013 ZL50F.3-8
销
PIN 2
16
35C0047 ZL50F.3.2
密封圈
SEAL 1
17
83A0083 ZL50F.3.1-1
衬套
SPACER 1
18
88A0157 ZL50F.3-6
止推垫片
SPACER 2

19
56A0088 ZL50F.3-5
压紧板
CAP 1
20
00B0159 GB5783-86
螺栓
BOLT M18×55-10.9-ZN.D 4
21
06B0102 ZL50F.3-4
淬硬垫圈
WASHER 4
22
00B0057 GB5783-86
螺栓
BOLT M14×45-8.8-ZN.D 20
23
06B0103 ZL50F.3-2
淬硬垫圈
WASHER 20
24
53A0073 ZL50G.3.1-1
盖
COVER 1
25
61A0109 ZL50F.3-7
后支承轴
SUPPORT
TRUNNION
1
26
24D0048
后摆动支架
BRACKET 1
27
00A0260
ZL50CⅢ.3-2 销
PIN 2
28
06B0055 JB982-77
组合密封垫圈
SEAL ASSEM. 27 4
29
03B0212
螺塞
PLUG SCREW 4
30
24D0007
桥壳轮边支承轴
SUPPORT SHAFT 1
31
45C0005 ZL50C.2.2A
夹钳总成
BRAKE ASSEM. 2
32
52A0038 ZL40B.2-19
制动盘
BRAKE DISK 2
33
00B0273 GB5783-86
螺栓
BOLT M14×40-8.8-ZN.D 40
34
06B0013 GB93-87
垫圈
WASHER 14 40
35
23B0001 GB/T297-94
圆锥滚子轴承
32022
ROWTAPEREDROL
LER BEARING
110×170×38 2
36 23B0010 GB/T297-94
圆锥滚子轴承
32221
ROWTAPEREDROL
LER BEARING
105×190×53 2
37
81A0026 ZL40B.2-17
密封垫
GASKET 2
