Description

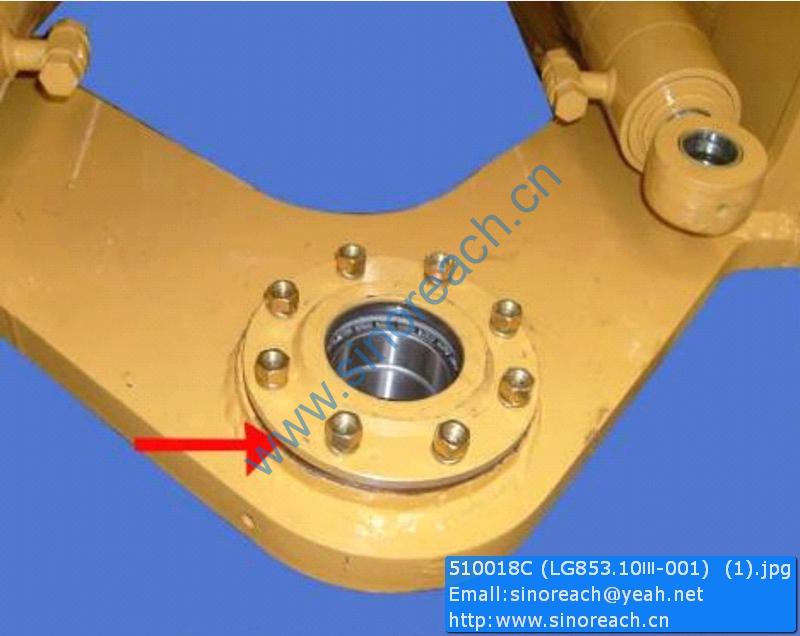

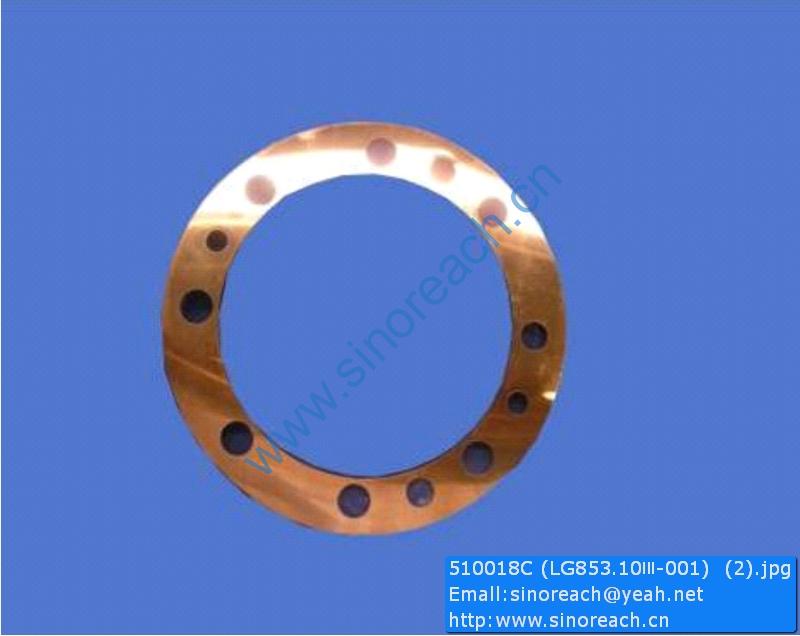

510018C LG853.10Ⅲ-001 Shim for CDM843 parts

1 WZ30-25.3-8 后盖板 Rear Cover Plate 1
2 KD-830 收放机 Radio 1
3 WZ30-25.3.8 收放机安装架 Radio Fixed Support 1
4 KD-103 扬声器 Loudhailer 2
5 GB818-85 螺钉 M4×16 Screw M4×16 8
6 WZ30-25.3.8 室内镜 Mirror 1
7 GB93-87 垫圈 6 Washer 6 11
8 GB818-85 螺钉 M6×16 Screw M6×16 11
9 WZ30-25.3-8 前盖板 Front Cover Plate 1
10 FD140×80 顶棚灯 Roof Lamp 1
11 GB818-85 螺钉 M5×12 Screw M5×12 3
12 QDS-ⅡB 电风扇(24V×150mm) Fanner (24V×150mm) 1
13 WZ30-25.3.15 座椅总成 Driver Seat 1
14 GB6170-86 螺母 M8 Nut M8 4
15 GB93-87 垫圈 8 Washer 8 4
16 WZ30-25.3F.17 暖风罩 Warming Machine’s Cover 1
17 WZ30-25.3F-16 座椅安装板 Seat Fixed Plate 1
18 GB819-85 螺钉 M8×20 Screw M8×20 8
19 ZL50F.7-10 护线环 Rubber Ring 4
20 WZ30-25.3F.16 暖风机 Warming Machine 1
21 WZ30-25.3F-10 踏板胶垫 Rubber Floor 1
22 GB5783-86 螺栓 M24×55 Bolt M24×55 4
23 GB93-87 垫圈 24 Washer 24 4
24 WZ30-25.3F.12 踏板 Pedal Plate 1
25 WZ30-25.3F.13 底架 Bottom Support 1
26 WZ30-25.3-2 减震垫 Rubber Casket 4
27 GB5783-86 螺栓 M10×25 Bolt M10×25 6
28 GB95-85 垫圈 10 Washer 10 6
29 GB93-87 垫圈 10 Washer 10 6
30 GB6170-86 螺母 M10 Nut M10 6
31 WZ30-25.3F-4 胶管 Φ16×3500 Rubber Hose Φ16×3500 2
32 W2/12.7 喉箍(Φ16～25) Clamp (Φ16～25) 4
33 WZ30-25.3F-5 侧裙板 Side Skirt Plate 2
34 WZ30-25.3F-6 后裙板 Rear Skirt Plate 1

1 WZ30-25.3.6 拉窗 Movable Window 1
2 WZ30-25.3.4.2 车门骨架 Door Body 1
4 GB818-85 螺钉 M6×16 Screw M6×16 4
3 GB93-87 垫圈 6 Washer 6 4
5 WZ30-25.3-9 门锁盖板 Door Lock Cover Plate 1
6 GB819-85 螺钉 M6×16 Screw M6×16 10
7 NBS502 门锁 Door Lock 1
8 ZL50G.3A.7 玻璃胶条 Glass Seal Strip 1
9 WZ30-25.3.5-4 车门玻璃 Door Glass 1
10 NBS510 定位锁 Fixed Position Lock 1
11 LW560.3.7 内拉手 Inner Hand Rail 1
12 GB95-85 垫圈 5 Washer 5 2
13 GB93-87 垫圈 5 Washer 5 2
14 GB818-85 螺钉 M5×16 Screw M5×16 2
15 WZ30-25.3-12 拉窗安装板 Movable Window Fixed Plate 4
16 GB12615-90 拉铆钉5×10 Rivet 5×10 8
17 114防盗门型 合页 Hinge Joint 2
