Description

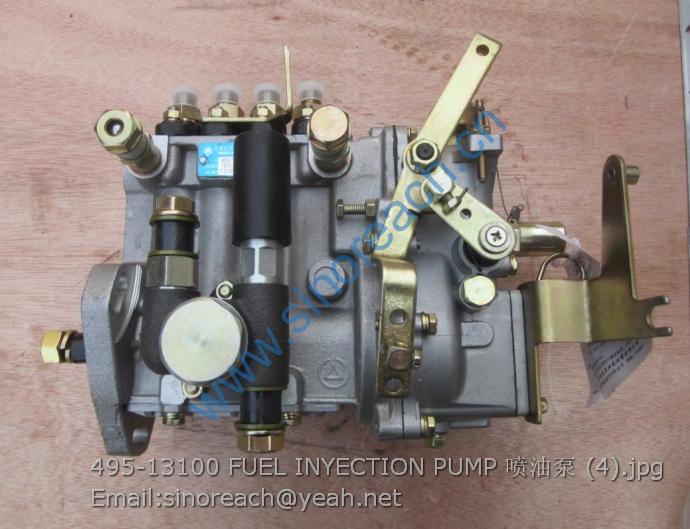

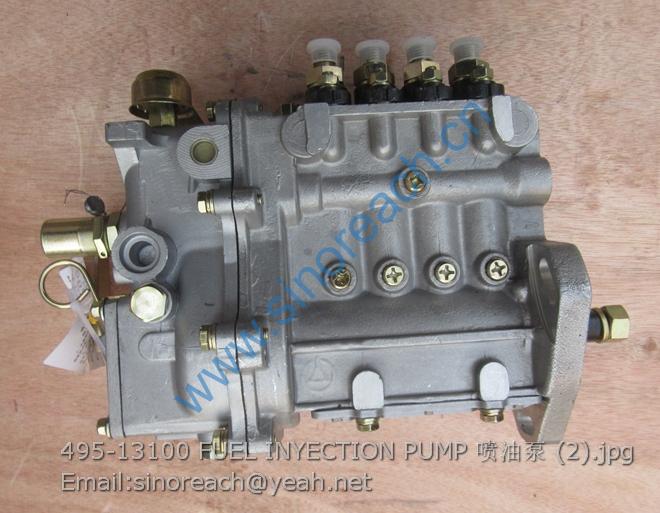

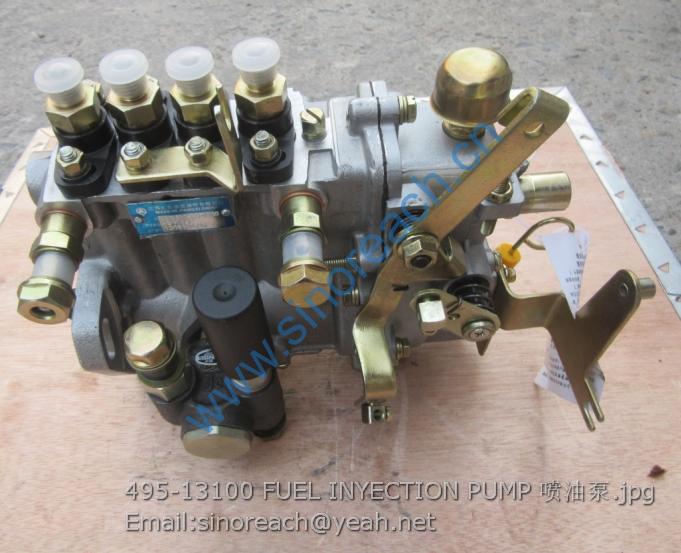

495-13100 Fuel injection pump
HA01106 4100QB-01-014 凸轮轴衬套Ⅲ Camshaft bushing III
HA011 4100QB-01.13 堵头组合件 Plug seaming
HA012 4100QB-01.14 喷嘴组合件 Nozzle seaming
HA011116 4100QB-01.02.01B-001 惰齿轮 Idle gear
HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear Baffle
GB93-1987 垫圈 Sping washer 12
GB/T 5783-2000 螺栓 Bolt M12×22-8.8
4100QB-01.02.01-002A 惰齿轮衬套 Bushing, idle gear
HA0132 4100QB-01.02-001 惰齿轮轴 Shaft, idle gear
HA03125 4100QB-01-017 碗形塞 Plug φ15
HA01123 4100QB-01-019 堵塞 Plug
HA01238 495QA-01.01-007 碗形塞 Plug φ32
HA013 495QA-01-022 定位套管 Locating bush
HA01210 4102QB-01.01 机体机械加工部件 Engine block machined parts
HA0171 4100QB-01-012 封水圈 Water seal ring, cylinder liner
HA01185 4100QB-2-01-011 气缸套 Cylinder liner
HA0110801 4100QB-01-014-Ⅱ 凸轮轴衬套Ⅱ Camshaft bushing II
HA01105 4100QB-01-013A 凸轮轴衬套Ⅰ Camshaft bushing I
HA019301 4102QB-01.07-001 呼吸管接管 Breather joint pipe
ZBJ15001-87 喉箍 Clamp NO.1X
JB982-97 组合垫圈 Combination washer 16
HA0131 4100QB-01-065 螺塞Ⅱ Threaded plug Ⅱ M16×1.5
GB/T 97.1-2002 垫圈 Washer 10
GB93-1987 垫圈 Sping washer 10
GB/T 5783-2000 螺栓 Bolt M10×25-8.8
HA01370 4100QB-01-068 侧盖板螺母 Side board nut
青岛基珀 组合垫圈 Combination washer 8
HB047 GB898-88 螺柱 Bolt AM8×30
HA01670 4102QB-01-056 前上侧盖板 Front upper side cove
HA014 495QA-01-023 机油泵传动轴衬套 Bush, oil pump driving shaft
4100QB-01.03D-011 传动齿轮轴 Propeller gear shaft
HA01192 495QA-01.03-001 调整垫片 Adjusting washer
HA01836 4100QB-01-024A 机油泵上轴套盖垫片 Gasket
HA015 4100QB-01-025A 机油泵上轴套盖 Cover
GB93-1987 垫圈 Sping washer 8
GB/T 5783-2000 螺栓 Bolt M8×25
HA01124 4100QB-01-018 堵塞 plug ф15
HA01565 4102QB-01.07.01 后上侧盖板焊合件 Welded rear upper side cover
HA01322 4100QB-01-057 上侧盖板垫片 Upper side cover washer
HA01226 495QA-01-055 挡油板 Oil-retaining ring
HC02 24V/CA10 机油压力传感器 Oil pressure sensor
4102QB-01-008 前、后主轴承上瓦 Upper main bearing liner
4102QB-01-009 前、后主轴承下瓦 Lower main bearing liner
HA01385 4102QB-01.01-004 后主轴承盖Ⅴ Rear main bearing cover
HA0199 4102QB-01-010 曲轴止推片 Crankshaft thrust sheet
GB/T 119.1-2000 销 Pin 3 h8×10
HA01119 4102QB-01.01-005 主轴承盖螺栓 Main bearing cover bolt M16×110
HA01377 4102QB-01.01-003 中间主轴承盖Ⅱ、Ⅲ、Ⅳ Middle main bearing cover
4102QB-01-007 中间主轴承下瓦 Bottom half,middle main bearing
HA0195 4102QB-01-006 中间主轴承上瓦 Upper half,middle main bearing
HA01376 4102QB-01.01-002 前主轴承盖 Front main bearing cover
