Description

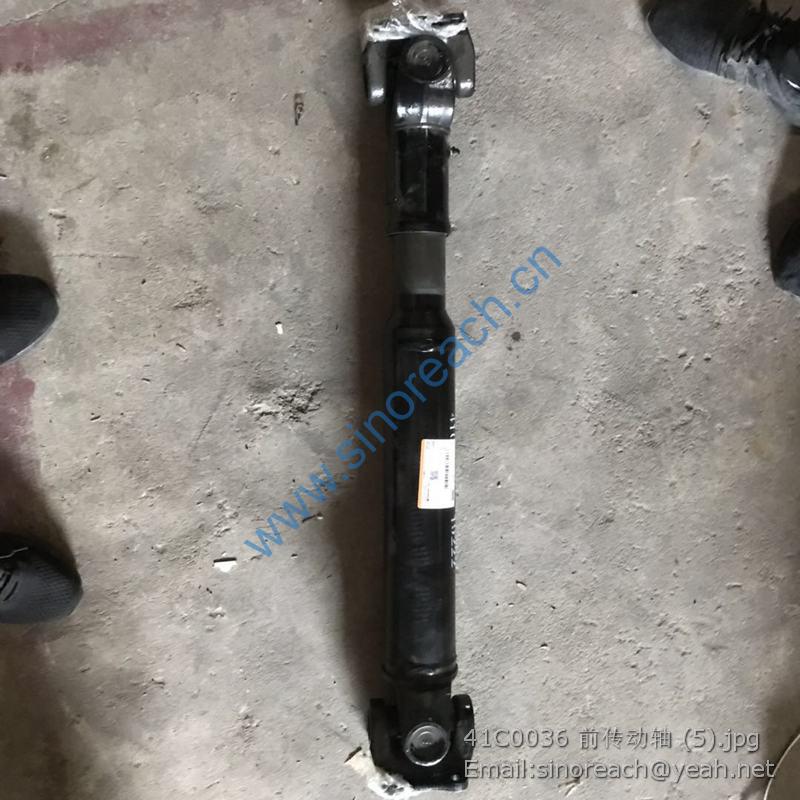

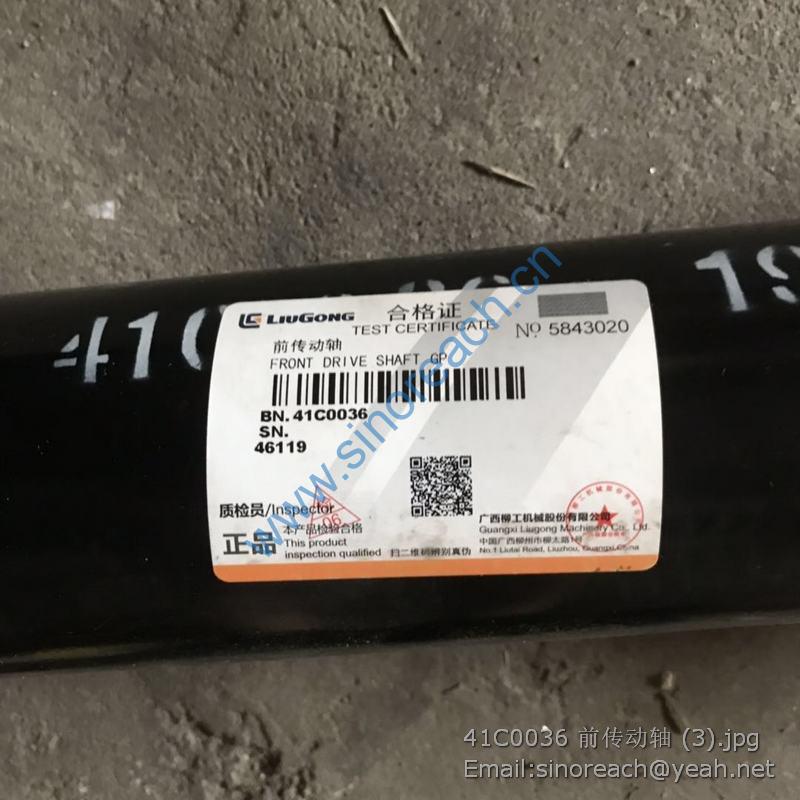

41C0036 Front Drive Shaft Assembly

1 04B0007 ZL50C.4-1 铰孔螺栓 Bolt 12
2 03B0025 CB071215-3 锁紧螺母 Lock Nut M12 12
3 41C0036 ZL15.4.1 前传动轴总成
Front Drive Shaft
Assembly 1
4 04B0008 ZL50C.4-2 铰孔螺钉 Bolt 4
5 06B0013 GB93-87 垫圈 Lock Washer 14 4
6 51K0012 后传动轴 Back Drive Shaft Assembly 1

1 27H0010 固定座 SUPPORT 1
2 00B0075 GB5783-86 螺栓 BOLT M8×20-8.8-Zn.D 6
3 06B0348 GB93-87 垫圈
SPRING
WASHER
8-Zn.D 30
4 16A0626 ZL15.10.20-1 指示杆
INDICATOR
ROD
1
5 20A0154 ZL50C.10.20-3 指针 PINTER 1
6 10K0012 转斗油缸
BUCKET
TILTING
CYLINDER
1
7 06K0017 软管总成 HOSE AS 2
8 04B0049 GB70-85 螺钉 SCREW M8×25-8.8-Zn.D 24
9 10L0026 钢管总成 TUBE AS 1
10 12B0114 GB3452.1-92 O 形圈 O-RING 26.5×3.55 1
11 12B0289 GB3452.1-92 O 形圈 O-RING 17×1.8 8
12 20A1358 ZL15.10.4-1 管夹 CLAMP 2
13 00B0005 GB5783-86 螺栓 BOLT M10×20-8.8-Zn.D 8
14 06B0347 GB93-87 垫圈
SPRING
WASHER
10-Zn.D 10
15 27H0011 固定座 SUPPORT 2
16 83H0011 垫 GASKET 2
17 06B0349 GB93-87 垫圈 WASHER 12-Zn.D 4
18 09K0005 管夹总成 CLAMP 1
19 24K0003
液压操纵
杆系
HYDRAULC
CONTROL
1
20 10L0029 接头总成 CONNECTOR 1
21 12B0051 GB3452.1-92 O 形圈 O-RING 21.2×3.55 1
22 10L0038 钢管总成 TUBE AS 1
23 12B0066 GB3452.1-92 O 形圈 O-RING 22.4×2.65 4
24 12B0370 GB3452.1-92 O 形圈 O-RING 15×1.8 8
25 05B0018 ZL40B.10.11-1 双头螺栓 BOLT 2
26 03B0379 GB6172-86 螺母 NUT M8-04-Zn.D 8
27 10L0025 钢管总成 TUBE AS 11 00B0028 GB5783-86 螺栓 BOLT
M5×
12-8.8-Zn.D
2
2 06B0361 GB93-87 垫圈 WASHER 5-Zn.D 18
3 06B0066 GB97.1-85 垫圈 WASHER
5-140HV-Zn.
D
18
4 04B0221 GB818-85 螺钉 SCREEW
M5×
12-4.8-Zn.D
16
5 86A0394 上罩盖 COVER 1
6 86A0393 左罩体 LEFT SHIELD 1
7 04B0066 GB818-85 螺钉 SCREEW
M5×
16-4.8-Zn.D
2
8 03B0032 GB6170-86 螺母 NUT M5-8-Zn.D 2
9 00B0017 GB5783-86 螺栓 BOLT
M12×
30-8.8-Zn.D
4
10 06B0349 GB93-87 垫圈 WASHER 12-Zn.D 4
11 86A0384 右罩体 RIGHT SHIELD 1
12 35C0087 LGFXP 方向盘 STEERING WHEEL 1
13 54C0142 双软轴总成 FLEXIBLE SHAFT 1
14 47C0499 方向柱总成 STEERING COLUMN 1
15 03B0059 GB6172-86 螺母 NUT M14-05-Zn.D 1
16 00B0030 GB5783-86 螺栓 BOLT
M8×
55-8.8-Zn.D
2
17 06B0348 GB93-87 垫圈 WASHER 8-Zn.D 2
18 00D1887 变速操纵支架 BRACKET 1
19 71A0439 夹块 CLAMP 1
20 01B0603 GB5782-86 螺栓 BOLT
M6×
70-8.8-Zn.D
2
21 06B0024 GB97.1-85 垫圈 WASHER
6-140HV-Zn.
D
2
22 06B0346 GB93-87 垫圈 WASHER 6-Zn.D 2
