Description

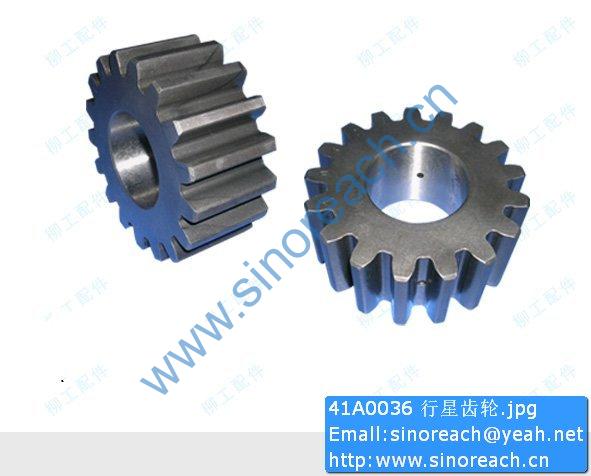

41A0036 Planetary gear for liugong spare part
00C1731 27A0290 pipe clamp; Q235
00C1731 13A4976 support plate; Q235
09C0016 83A0040 Rubber ring; Rubber I-1
09C0016 21A0181 Upper pipe clamp; Q235
09C0016 21A0180 Lower pipe clamp; Q235
09C0016 06B0008 Washer; GB93-87; 12; 65Mn
09C0016 00B0013 Bolt; GB5783-86; M12×40-8.8-Zn.D; STL
00C1731 06B0008 Washer; GB93-87; 12; 65Mn
20E0397X1 03B0215 lock nut; 35
20E0397X1 02A0182 Tee connector; ZG270-500
20E0397X1 31C0522 Elbow joint; ASSY
20E0397X1 00D0449 rear booster bracket; welding parts
20E0397X1 00B0038 bolt; GB5783-86; M14×30-8.8-Zn.D; STL
20E0397X1 00B0021 bolt; GB5783-86; M6×12-8.8-Zn.D; STL
20E0397X1 13C0067 Afterburner assembly; assembly parts
20E0397X1 06B0053 Washer; JB982-77; 22; AGGL
20E0397X1 06B0117 Washer; 14; AGGL
20E0397X1 06B0117 Washer; 14; AGGL
20E0397X1 37B0004 nylon cable tie; nylon
20E0397X1 23A1073 Front afterburner bracket; Q235
20E0397X1 22A5104 mounting plate; Q235
20E0397X1 00B0020 bolt; GB5783-86; M8×30-8.8-Zn.D; STL
20E0397X1 20A1514 pipe clamp; Q195
20E0397X1 15D0159 Combination joint; welded parts
13C0211 06B0053 Washer; JB982-77; 22; AGGL
13C0211 14A2214 mounting plate; Q235
13C0211 13C0157 Air dryer; assembly parts
13C0211 06B0083 Washer; 12; AGGL
13C0211 06B0008 Washer; GB93-87; 12; 65Mn
13C0211 05A0239 screw plug; 35
13C0211 00B0349 bolt; GB5786-86; M12×1.5×25-8.8-Zn.D; STL
13C0211 00A0050 connector; 35
20E0397X1 13C0067 Afterburner assembly; assembly parts
13C0054X1 13C0109 Manual drain valve; fittings
13C0054X1 13C0054X0 Air tank assembly
13C0054X1 06B0002 Washer; GB93-87; 10; 65Mn
13C0054X1 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
13C0054X1 00B0019 bolt; GB5783-86; M10×30-8.8-Zn.D; STL
20E0397X1 13C0004 Air brake valve assembly; assembly parts
20E0397X1 12B0356 O-ring; GB3452.1-92; 16×1.8; YI9424
20E0397X1 12B0242 O-ring seal; GB1235-76; 25×2.4; YI9424
20E0397X1 11A0505 Brake valve mounting plate (2); Q235
20E0397X1 06B0024 Washer; GB97.1-85; 6-140HV-Zn.D; STL
20E0397X1 00B0011 bolt; GB5783-86; M12×25-8.8-Zn.D; STL
20E0397X1 06B0013 Washer; GB93-87; 14; 65Mn
20E0397X1 06B0009 Washer; GB97.1-85; 14-140HV-Zn.D; STL
20E0397X1 06B0008 Washer; GB93-87; 12; 65Mn
20E0397X1 06B0006 Washer; GB93-87; 8; 65Mn
20E0397X1 06B0003 Washer; GB93-87; 6; 65Mn
20E0397X1 06B0002 Washer; GB93-87; 10; 65Mn
20E0397X1 05C0150 φ8-1P high pressure hose; L=1100; one end elbow 90 degrees
20E0397X1 05C0091 Brake hose; assembly parts
20E0397X1 04C0145 hose assembly
20E0397X1 04C0111 Hose assembly
20E0397X1 00B0005 bolt; GB5783-86; M10×20-8.8-Zn.D; STL
20E0397X1 04C0080 φ12.7-1P low pressure hose L1320; fittings
20E0397X1 04C0171 Hose assembly; assembly parts
20E0397X1 04C0077 φ12.7-1P low pressure hose L1500; fittings
20E0397X1 03C0054 Nylon tube; L1000, one end elbow 90 degrees; fitting
20E0397X1 03B0021 Nut; GB6170-86; M8-8-Zn.D; STL
20E0397X1 03A0067 pipe joint; ZG270-500
20E0397X1 02C0221X0 Steel pipe assembly
20E0397X1 02A0261 Tee connector; Q345
20E0397X1 01B0244 pipe joint bolt; CHSTL 22/35
20E0397X1 00A0050 connector; 35
21E0020X1 32C0405 three-way connector; ASSY
21E0020X1 06B0053 Washer; JB982-77; 22; AGGL
21E0020X1 00A0067 connector; 35
21E0020X1 30C0049X0 connector
24C0032 35C0031 Button; glued part
24C0032 10D0322 Tie rod shaft; welded parts
24C0032 03B0035 Nut; GB6171-86; M10×1-8-Zn.D; STL
21E0020X1 13C0025 Emergency brake valve; assembly parts
21E0020X1 13C0012 Quick release valve; assembly parts
21E0020X1 13C0009 brake chamber
13C0010 05D0179 tube
13C0010 01B0048 Bolt
21E0020X1 12B0351 O-ring seal; GB1235-76; 16×2.4; YI9424
21E0020X1 08B0005 pin; GB91-86; 4×25-Zn.D; Q235
21E0020X1 03C0040 Nylon tube; φ6×1; one end elbow 90 degrees
21E0020X1 03C0036 Nylon tube; fittings
21E0020X1 03C0007 Nylon tube; fittings
