Description

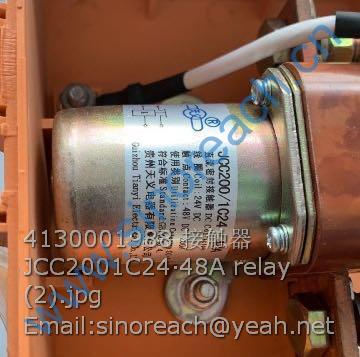

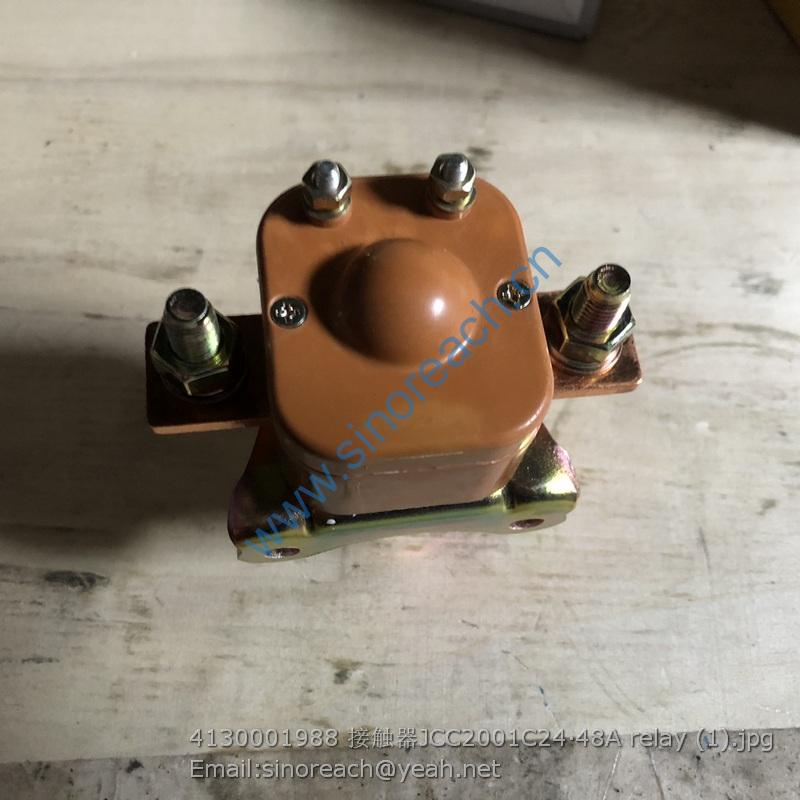

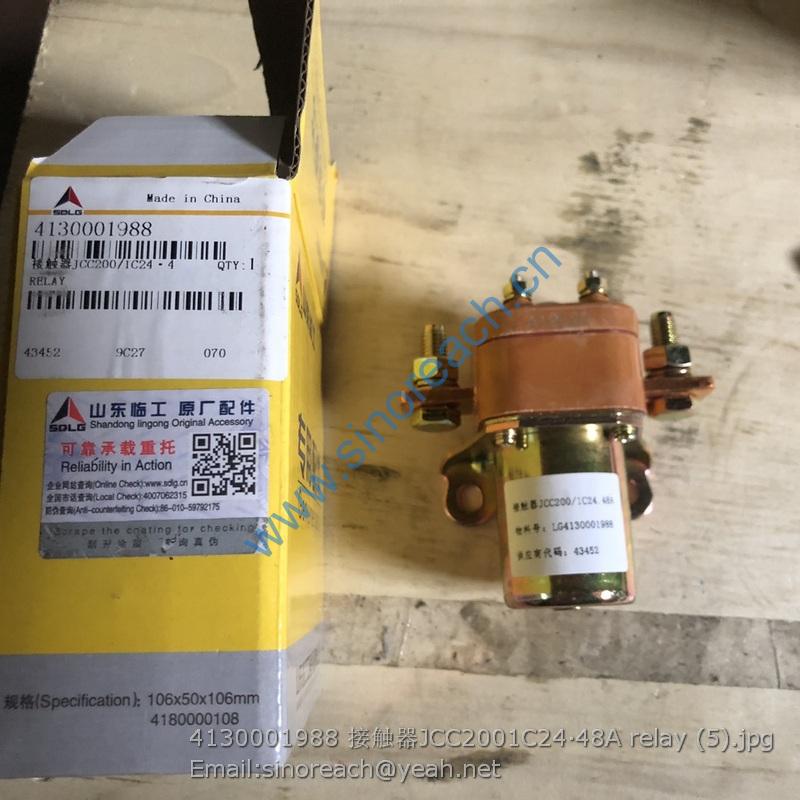

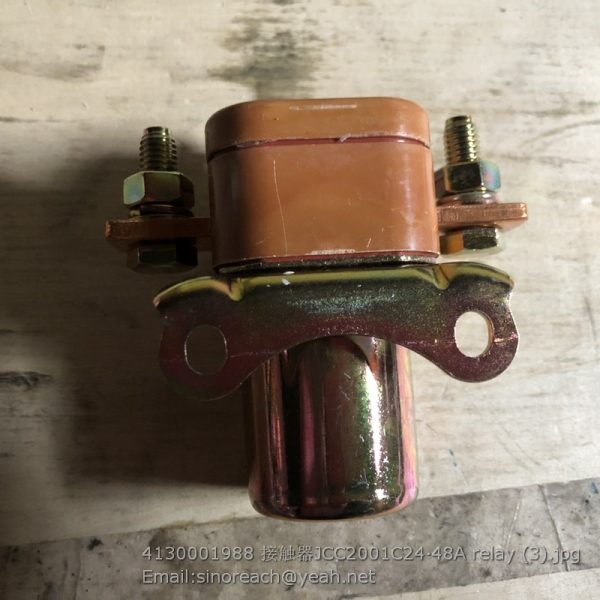

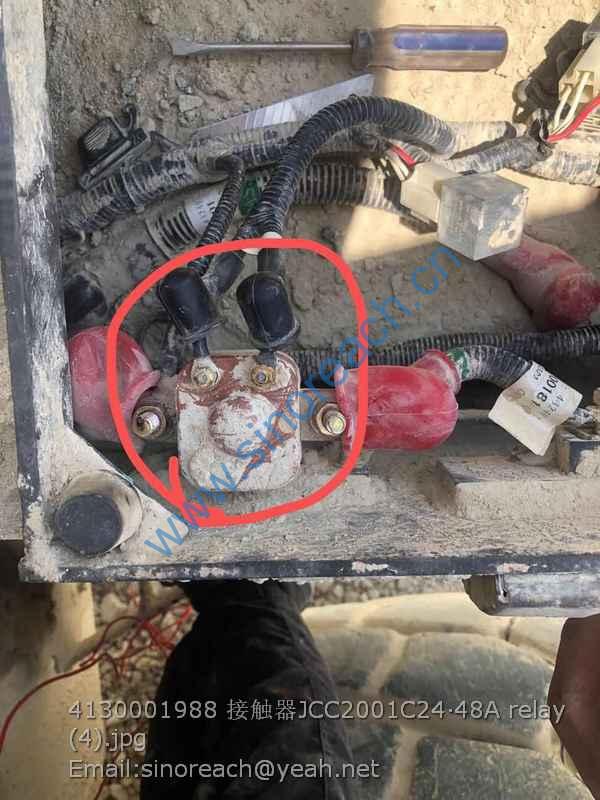

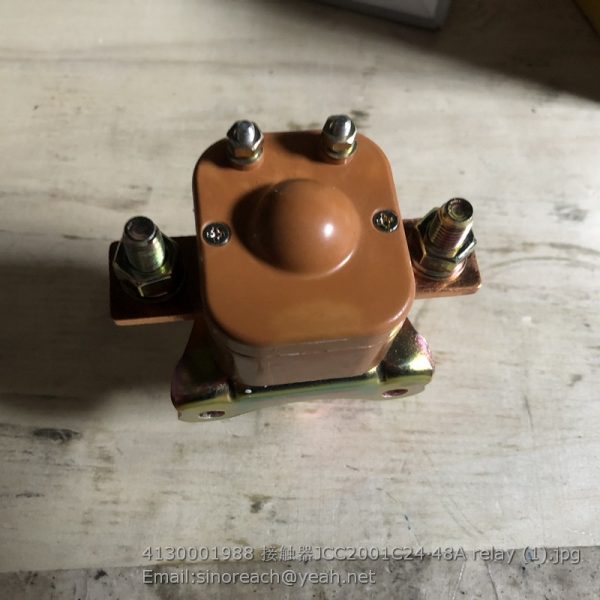

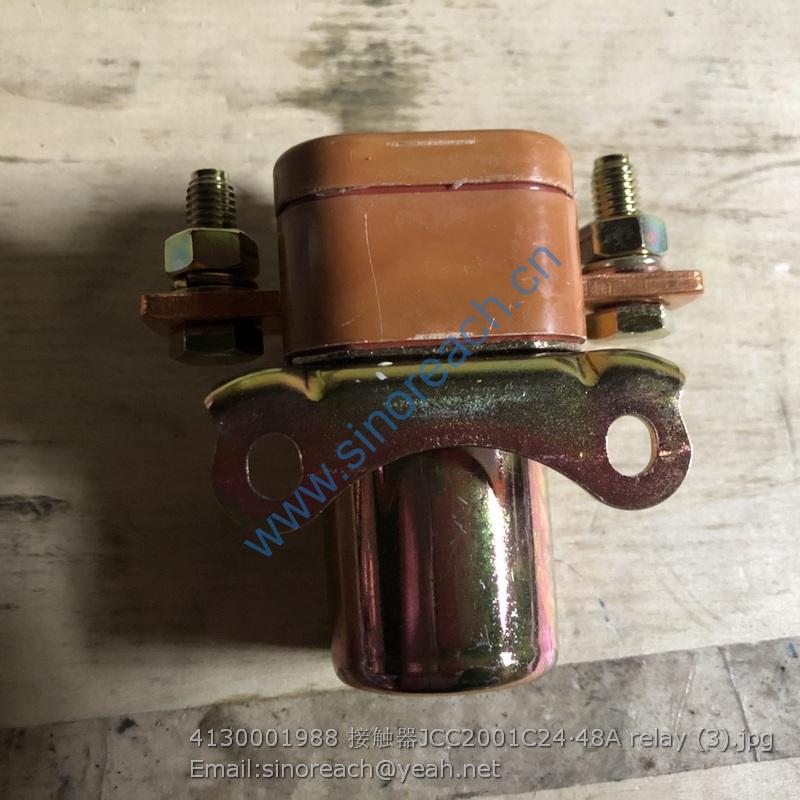

4130001988 JCC200/1C24·48A relay SDLG SPARE PARTS
1 4190001832 扎丝RTGB-200ST Cable tie Y 8
2 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 5
3 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
4 14400342 扎带 Strip clamp Y 4
5 26370001072 支架 Bracket Y 1
6 29440001961 ECU线束 Wiring harness Y 1
7 4045000054 电瓶线LGB340-15*400A1L10L8-1L1 Battery cable Y 1
8 4130001464 保险丝ANM 125 Fuse Y 1
9 4130001480 保险丝座ANM-C Fuse box Y 1
10 4014000524 螺钉GB818-M6*16flZnyc-8.8-480 Screw Y 2
11 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 2
12 4045000056 电瓶线LGB340-15*300P1L8L10-1L1 Battery cable Y 1
13 4130001988 接触器JCC200/1C24·48A Relay Y 1
14 4014000515 螺钉GB818-M5*10flZnyc-4.8-480 Screw Y 2
15 4015000431 垫圈GB97.1-5flZnyc-300HV-480 Washer Y 2
16 4045000053 电瓶线LGB340-15*3000P1L6L8-1L1 Battery cable Y 1
17 26370002431 红电瓶线护套 Cable sleeve Y 3
18 4041002417 管夹LGB169-B20*12.5 Clamp Y 2
19 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 2
20 4045000032 电瓶线LGB340-50*450P1L10L10-4 Battery cable Y 1
21 4190001839 扎丝LG13-ZS4*160 Cable tie Y 9
22 29440000161 过渡板 Plate Y 1
23 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 3
24 4130002745 电子油门踏板403269 Accelerator pedal Y 1
25 4011001276 螺栓GB16674.1-M6*20flZnyc-8.8-480 Screw Y 2
26 4013000372 螺母GB6170-M6flZnyc-8-480 Nut Y 2
27 4130002655 多态开关3735075-BD01 Switch Y 1
1 29430000621 旋转警示灯总成 Rotating becaon N 1
2 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 2
3 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2
4 29370023121 旋转警示灯支架 Bracket Y 1
5 11215524 旋转警示灯 Rotating beacon Y 1
6 4130000593 警顶灯开关JK931-01JDD Rocker switch Y 1
7 4014000037 自攻螺钉GB845-ST4.2*19-C-H Screw Y 3
1 4130001639 旋钮 Knob N 1
2 4130001640 控制盒上盖 Cover N 1
3 4130001324 保险片ATS 5A Fuse Y 3
4 4130001327 保险片ATS 10A Fuse Y 17
5 4130001648 保险片ATS 30A Fuse Y 1
6 4130001330 保险夹 Clamp N 1
7 4130001678 CONTROL BOX PEDESTAL CECB-5 Control box N 1
8 4130001893 PCB板 Plate N 1
9 4130001647 控制盒底盖 Cover N 1
10 4130001399 闪光器RTD-SG-B Flasher unit Y 1
11 4130001398 继电器HFV6024Z-TR Relay Y 5
12 4130000912 蓄电池继电器024-1H2T-80A Relay Y 2
13 4130001400 护套总成DJ7.14-7.8-21 Protecting cover N 1
14 4130001401 护套总成DJ7014-7.8-11 Protecting cover N 1
15 4130001677 KET护套总成MG610331 Casing N 1
16 4130001402 KET护套总成MG610350 Casing N 3
