Description

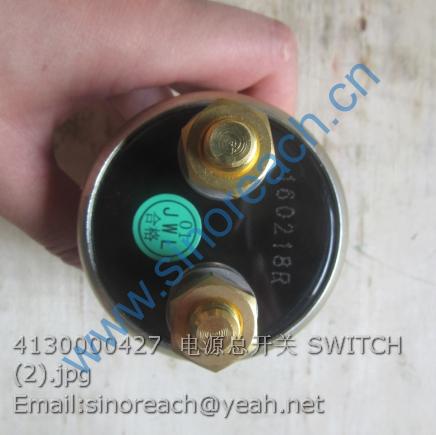

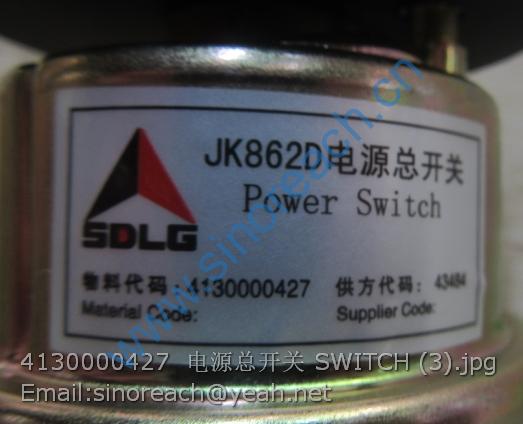

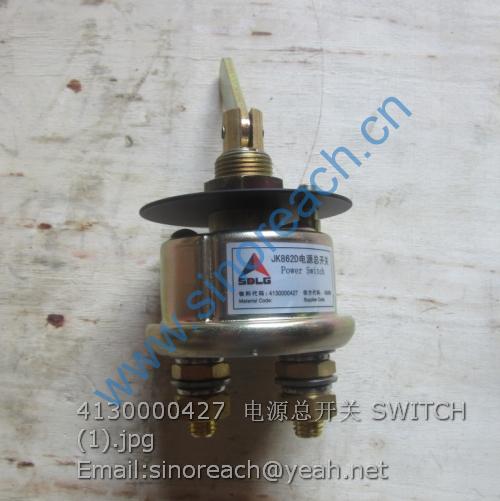

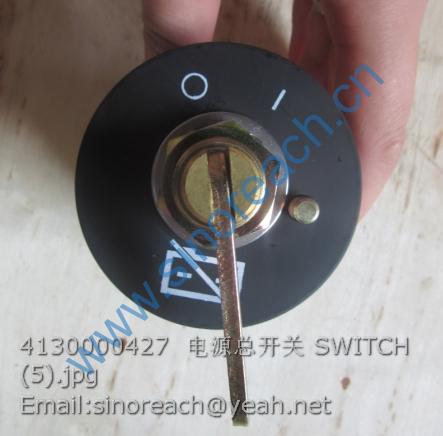

4130000427 POWER SWITCH K01K18-A JK862D
1 29370009571 启动马达线 LINE FROM SWITCH TO MOTOR Y 1
2 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 16
3 29370014291 电瓶线A50*350 BATTERY WIRE A50*350 Y 1
4 4130000427 电源开关K01K18-A POWER SWITCH K01K18-A Y 1
5 29370014261 电瓶线P50*150 BATTERY WIRE P50*150 Y 1
6 4130000057 蓄电池6-QW-120B BATTERY 6-QW-120B Y 2
7 29370013101 蓄电池串联线 BATTERY CABLE Y 1
8 29310011841 卡子胶条 DIP RUBBER BAR Y 2
9 29370015301 继电器保护盒 RELAY PROTECT BOX Y 1
10 4014000024 螺钉GB818-M6*10EpZn-4.8 SCREW GB818-M6*10EpZn-4.8 N 4
11 4015000207 垫圈GB97.1-6EpZn-300HV WASHER GB97.1-6EpZn-300HV N 6
12 4015000035 垫圈GB93-6-65Mn WASHER GB93-6-65Mn N 6
13 4130000694 接触器MZJ-100A/006 CONTACTOR MZJ-100A/006 Y 2
14 4014000061 螺钉GB818-M4*10EpZn-4.8 SCREW GB818-M4*10EpZn-4.8 N 4
15 4015000135 垫圈GB97.1-4EpZn-300HV WASHER GB97.1-4EpZn-300HV N 4
16 4015000033 垫圈GB93-4-65Mn WASHER GB93-4-65Mn N 4
17 29370015291 继电器固定板 RELAY FIXATION PLANT Y 1
18 4190000020 扎丝LG13-ZS4*250 CLIP LG13-ZS4*250 Y 84
19 26370001911 管夹 CLAMP Y 5
20 4130000009 双音盆形喇叭DL125-24V ELECTRIC HORN DL125-24V Y 1
21 4011000152 螺栓GB16674-M6*10EpZn-8.8 BOLT GB16674-M6*10EpZn-8.8 N 2
22 4130000542 前左组合灯LFLDH4-24V LEFT FRONT HEAD LAMP LFLDH4-24V Y 1
23 29370014021 前车架线束 FRONT BODY WIRING HARNESS Y 1
24 4130000543 前右组合灯LFRDH4-24V RIGHT FRONT HEAD LAMP LFRDH4-24V Y 1
25 4130000329 隔膜式压力开关0166-40404-1-016 PRESS SWITCH 0166-40404-1-016 Y 1
26 29370015591 启动继电器固定板 FIXED PLATE OF STARTUP RELAY Y 1
27 4130000874 启动继电器SW030A3509-2 ENABLE RELAY SW030A3509-2 Y 1
28 4014000026 螺钉GB818-M6*16EpZn-4.8 SCREW GB818-M6*16EpZn-4.8 N 2
29 29370015381 后车架线束 BODY WIRING HARNESS Y 1
30 4130000213 后尾灯LRTD－24V REAR LAMP LRTD－24V Y 2
31 4130000544 后大灯SPH4-1031 REAR LARGE LAMP SPH4-1031 Y 2
32 29370009531 后罩线束 COVER HARNESS Y 1
33 4130000615 前照灯QZD-1 FORWARD LIGHTING QZD-1 Y 4
34 4130000121 倒车蜂鸣器KSHM-12F4 ANNUNCIATOR KSHM-12F4 Y 1
35 29370015081 仪表台线束总成 PANEL HARNESS ASSEMBLY Y 1
36 4014000048 螺钉GB818-M5*12EpZn-4.8 SCREW GB818-M5*12EpZn-4.8 N 11
37 4015000110 垫圈GB97.1-5EpZn-300HV WASHER GB97.1-5EpZn-300HV N 11
38 4015000034 垫圈GB93-5-65Mn WASHER GB93-5-65Mn N 11
39 4013000118 螺母GB6170-M5EpZn-8 NUT GB6170-M5EpZn-8 N 3
40 4130000869 中间继电器024-1Z6GD2 AUXILIARY RELAY 024-1Z6GD2 Y 8
41 29370015341 仪表盘总成Y958CAT PANEL ASSEMBLY Y958CAT Y 1
42 29370013341 仪表台总成 PANEL ASSEMBLY N 1
43 4130000498 侧边单框架JK931-01CKJ SIDE FRAME JK931-01CKJ Y 6
44 4130000496 盖板JK931-01GB CAP JK931-01GB Y 13
45 4130000497 中间单框架JK931-01ZKJ MIDDLE FRAME JK931-01ZKJ Y 7
46 4130000060 手制动开关LA39-01Z HAND BRAKE SWITCH LA39-01Z Y 11 4130000856 变速箱压力表350-040-005 GEARBOX MANOMETER 350-040-005 Y 1
2 4130000858 气压表350-040-011 DIAL BAROMETER 350-040-011 Y 1
3 4130000601 转向指示灯ZL2-ZX STEERING INDICATED LAMP ZL2-ZX Y 2
4 4130000498 侧边单框架JK931-01CKJ SIDE FRAME JK931-01CKJ Y 4
5 4130000625 指示灯组件ZL2-ZJ3 INDICATOR LAMP ASSEMBLY ZL2-ZJ3 Y 1
6 4130000497 中间单框架JK931-01ZKJ MIDDLE FRAME JK931-01ZKJ Y 7
7 4130000626 指示灯组件ZL2-ZJ4 INDICATOR LAMP ASSEMBLY ZL2-ZJ4 Y 1
8 4130000627 指示灯组件ZL2-ZJ5 INDICATOR LAMP ASSEMBLY ZL2-ZJ5 Y 1
9 4130000628 指示灯组件ZL2-ZJ6 INDICATOR LAMP ASSEMBLY ZL2-ZJ6 Y 1
10 4130000629 指示灯组件ZL2-ZJ7 INDICATOR LAMP ASSEMBLY ZL2-ZJ7 Y 1
11 4130000289 水温表SW201C ENGINE WATER TEMPERATURE GAUGE SW201C Y 1
12 4130000286 油温表YW201A OIL TEMPERATURE GAUGE YW201A Y 1
13 4130000608 仪表盘面板ZL2-MB1 PANEL ZL2-MB1 Y 1
14 4130000875 电锁84829 ELECTRIC SWITCH LOCK 84829 Y 1
15 4130000209 油位表RY242-2A FUEL LEVEL GAUGE RY242-2A Y 1
16 4130000889 转速表ZS901A(130) REVOLUTION COUNTER ZS901A(130) Y 1
17 4130000876 计时表85329 CHRONOMETER RATE 85329 Y 1
18 4130000426 报警按钮开关LD62Z-050 ALARM BUTTON SWITCH LD62Z-050 Y 1
19 4130000021 组合开关LG13-ZHK COMBINED SWTICH LG13-ZHK Y 1
20 4130000499 喷水开关JK931-01PS SPRAY WATER BUTTON-SWITCH JK931-01PS Y 1
21 4130000493 刮雨器开关JK931-01GYQ WIPER BUTTON-SWITCH JK931-01GYQ Y 1
22 4130000496 盖板JK931-01GB CAP JK931-01GB Y 1
23 4130000491 后照灯开关JK931-01HZD
BACKWARD LIGHTING BUTTON-SWITCH
JK931-01HZD
Y 1
24 4130000490 前照灯开关JK931-01QZD FORWARD LIGHTING BUTTON-SWITCH JK931-01QZD Y 1
25 4130000494 后大灯开关JK931-01HDD REAR BIG LAMP BUTTON-SWITCH JK931-01HDD Y 1
26 4130000871 闪光器MFA/024-1H2 FLASH APPARATUS MFA/024-1H2 Y 1
27 4130000587 蜂鸣器SFM-27 ALARM APPARATUS SFM-27 Y 2
28 4130000309 保险丝盒BX2203HB-1 FUSE BOX BX2203HB-1 Y 1
29 4130000331 备用插头8JA002262-001 STANDBY PLUG 8JA002262-001 Y 1
30 4130000332 备用插座8JB001946-011 STANDBY SOCKET 8JB001946-011 Y 1
31 4130000861 压力传感器360-081-030-100 PRESSURE TRANSDUCER 360-081-030-100 Y 1
32 4130000879 过渡接头R1/4 TRANSITION JOINT R1/4 Y 1
33 4130000860 压力传感器360-081-037-008 PRESSURE TRANSDUCER 360-081-037-008 Y 1
34 4130000878 过滤接头M10*1 FILTERING JOINT M10*1 Y 1
35 4130000065 变矩器油温传感器WG202A
TORQUE CONVERTER OIL TEMPERATURE SENSOR
WG202A
Y 1
36 4130000887 转速传感器ZG901(M18*1.5*50)
REVOLUTION SPEED TRANSDUCER
ZG901(M18*1.5*50)
Y 1
