Description

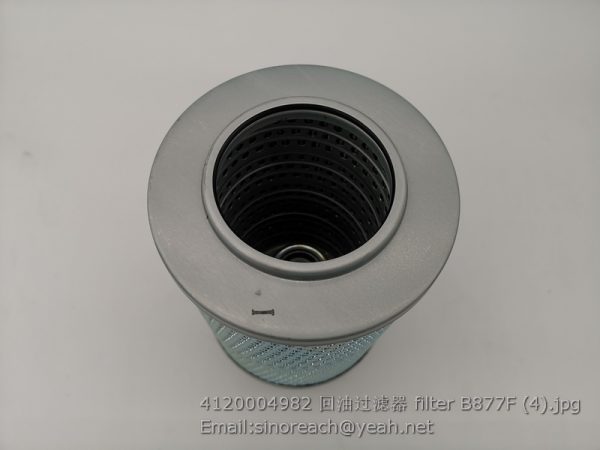

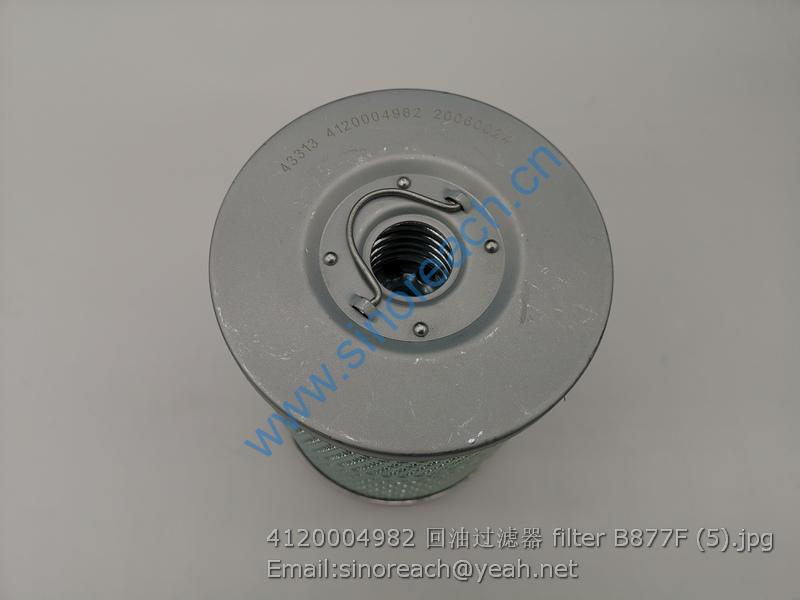

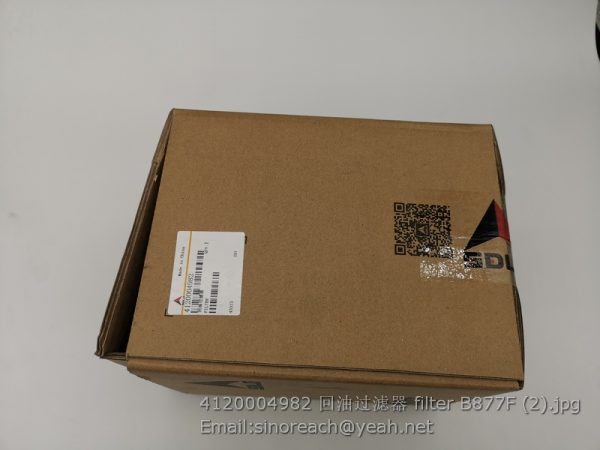

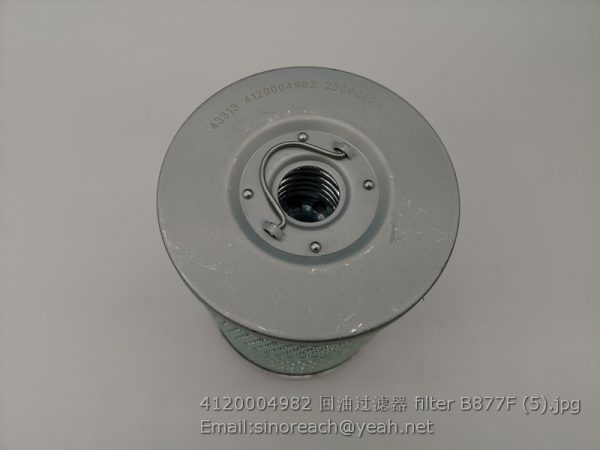

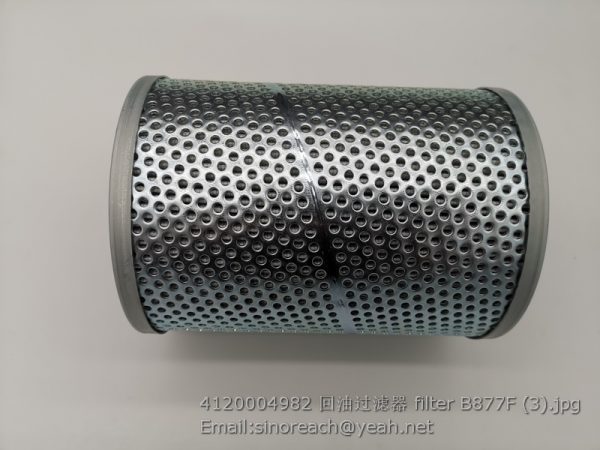

4120004982 filter

1 26100005481 液压油箱体 Hydraulic fluid tank N 1
2 26100005511 回油法兰盘 Flange Y 1
3 4030000303 O形圈GB3452.1-195*3.55G O-ring Y 1
4 26100005091 弹簧 Spring Y 1
5 4120000761 液压油箱换气过滤器L1.0807-51 Breather cap Y 1
6 26100006301 加油法兰盖 Flange Y 1
7 4030000304 O形圈GB3452.1-155*3.55G O-ring Y 1
8 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 18
9 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 2
10 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
11 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
12 26100006331 锁板 Plate Y 1
13 4110000807 圆形油标YB-M42*1.5 Level gauge Y 1
14 4120004983 液压油箱吸油过滤器 Filter insert Y 1
15 4030000732 O形圈GB3452.1-150*3.55G O-ring Y 1
16 26100006601 吸油法兰盘 Flange Y 1
17 4120002692 螺塞VSTI18×1.5ED Plug Y 2
18 26100004901 丝堵 Plug Y 1
19 4030000701 矩形密封圈ED22X1.5X-24.3*19.6*1.5 Sealing Y 1
20 4120004982 液压油箱回油滤芯 Filter Y 1
21 26100004951 弹簧座 Spring seat Y 1

1 26110006271 吸油钢管 Pipe Y 2
2 4041000027 分体法兰LGB117-312551 Flange half Y 2
3 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
4 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8
5 4120007900 胶管F462CA19181210-900-PG900 Hose assembly Y 1
6 4120007290 胶管F462CA19181210-980-PG980 Hose assembly Y 1
7 4017000007 喉箍JB8870-d60 Clamp Y 4
8 4017000006 喉箍JB8870-d100 Clamp Y 2
9 26110006261 吸油胶管 Hose Y 1
10 4030001319 O形圈GB3452.1-128*2.65G O-ring Y 1
11 4120007368 三联泵31/31/31 Gear pump Y 1
12 4013000016 螺母GB6170-M16EpZn-8 Nut Y 2
13 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 2
14 4012000025 螺柱GB898-M16*40EpZn-8.8 Stud Y 2
15 4120001115 法兰接头M1M1HK-12 Nipple Y 3
16 4120006799 胶管F462CA19181210-850-PG850 Hose assembly Y 1

1 4120007368001 泵体21000361 Pump body N 1
2 4120007368002 泵体21000399 Pump body N 1
3 4120007368003 泵体21000400 Pump body N 1
4 4120007368004 前盖21600182 Cover N 1
5 4120007368005 止推板25935007 Plate N 3
6 4120007368006 止推板25935010 Plate N 1
7 4120007368007 止推板25935029 Plate N 1
8 4120007368008 止推板25935033 Plate N 1
9 4120007368009 齿轮轴32741080 Drive shaft N 1
10 4120007368010 齿轮轴32741087 Drive shaft N 1
11 4120007368011 齿轮轴32741088 Drive shaft N 1
12 4120007368012 齿轮轴32747115 Drive shaft N 3
13 4120007368013 螺栓34409080 Screw N 4
14 4120007368014 螺钉37185000 Screw N 1
15 4120007368015 垫圈37583900 Washer N 4
16 4120007368016 E型密封圈39656140 Sealing ring N 3
17 4120007368017 E型密封圈39656142 Sealing ring N 2
18 4120007368018 E型密封圈39656144 Sealing ring N 1
19 4120007368019 方型密封圈39666150 Sealing ring N 2
20 4120007368020 方型密封圈39666155 Sealing ring N 1
21 4120007368021 弹性挡圈40018000 Retaining ring N 2
22 4120007368022 油封40850000 Sealing ring N 1
23 4120007368023 E型挡圈41387150 Sealing ring N 3
24 4120007368024 E型挡圈41387152 Sealing ring N 3
25 4120007368025 滑动轴承42395055 Plain bearing N 1
26 4120007368026 滑动轴承42395081 Plain bearing N 9
27 4120007368027 滑动轴承42414990 Plain bearing N 2
28 4120007368028 接轴45371001 Shaft N 1
29 4120007368029 接轴45381003 Shaft N 1
30 4120007368030 套49326000 Bushing N 12

1 4190000178 接头EW22LOMDA3C Nipple Y 1
2 4120005232 胶管F481CACF222212-800 Hose Y 1
3 4190000205 接头GE18LR3/4EDOMDA3C Nipple Y 2
4 4120000919 过渡接头EW18LOMDA3C Nipple Y 2
5 26060002191 右脚踏 Pedal Y 1
6 26060002181 左脚踏 Foot rest Y 1
7 4021000304 关节轴承GB9161-SI8T/K Spherical plain bearing Y 4
8 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
9 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 4
10 26120007851 垫圈 Washer Y 4
11 4120006791 胶管F462CACE181810-670 Hose assembly Y 1
12 4120002287 接头GE22LR3/4EDOMDCF Nipple Y 1
13 26120004261 连杆 Connecting rod Y 2
14 26120004191 销轴 Pin Y 4
15 4120007008 脚踏操纵机构总成 Control mechanism Y 1
16 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 4
17 26120013541 连杆 Rod Y 2
18 4120005498 多路阀HC-D6/2 Control valve Y 1
19 4014000526 螺钉GB70.1-M10*70flZnyc-8.8-480 Screw Y 3
