Description

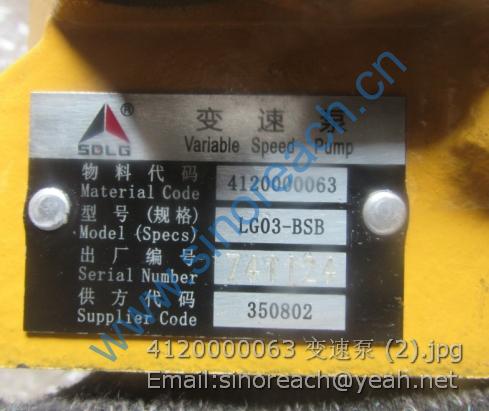

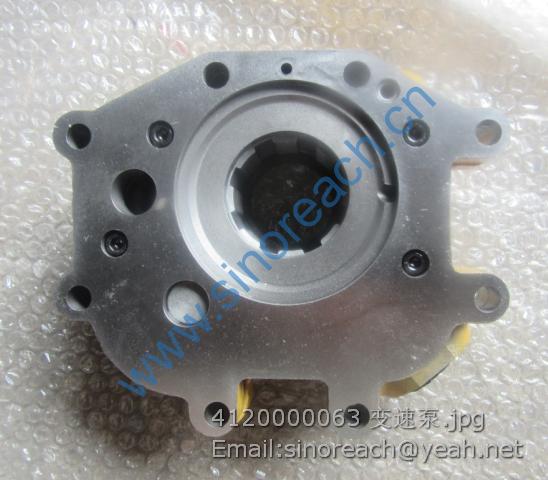

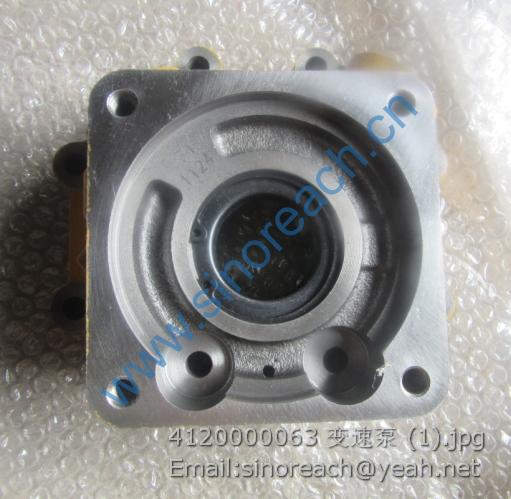

4120000063 Variable speed pump

29120004041 TWO-WAY MASS
4120000448 PRESSURE SELECTION VALVE SF8-C
4041001146 PIPE LGB124-004110
29120010801 RETURN PIPE OF TRANSITION BLOCK
29120011471 RETURN PIPE OF SELECTOR VALVE
29120010771 MOUNTED PLATE
29120010791 TRANSITION BLOCK
4041000774 PLUG LGB13501421
4041000043 FLANGE LGB117310490
4041000731 PIPE LGB107-010098
4041001301 PIPE LGB163-012106
29120016351 MOUNTED PLATE
29120016741 CLAMP
29120016951 MOUNTED PLATE
4041000010 FLANGE LGB117-314651
4030000130 O-RING GB3452.1-47.5*3.55G
29120010691 FEEDING TUBE OF MULTIPLE UNIT VALVE
29120016541 TUBE
29120015401 FITTING
4041001023 JOINT LGB143-01608
4030000240 O-RING GB3452.1-8.00*1.80G
4030000026 O-RING GB3452.1-32.5*3.55G
29120015431 CLAMP
4041001188 CUSHION LGB123-0219
4041000869 CUSHION LGB123-0740
29120015711 CLAMP
4041000958 U-BOLT LGB159-03040
F2-2911000805 WORKING PUMP ASSEMBLY
29110004021 INTAKE OIL TUBE OF PUMP
4030000235 O-RING GB3452.1-43.7*3.55G
29110004031 INTAKE OIL HOSE OF PUMP
29110004041 OUT OIL TUBE OF PUMP
4041000056 FLANGE LGB117-312550
4030000029 O-RING GB3452.1-37.5*3.55G
4041001034 PIPE LGB165-004030
29120009921 JOINT
4030000057 WASHER JB1002-14-T2
4120001058 GEAR PUMP CBGj3100/1010-XF
29110000041 SEALING WASHER
4041001033 PIPE LGB165-004100
F3-2913000829 LIFTING CYLINDER ASSEMBLY
29130004121 BIG CHAMBER STEEL TUBE OF RIGHT LIFTING CYLINDER
4030000279 O-RING GB3452.1-25*3.55G
4041000027 FLANGE LGB117312551
4120000867 LIFT CYLINDER HSGF-125*70*771-1240
29130004131 OIL TUBE OF SMALL CHAMBER RIGHT LIFTING CYLINDER
29130008301 SMALL CHAMBER THREE-WAY TUBE OF LIFTING CYLINDER
4030000029 O-RING GB3452.1-37.5*3.55G
4041000137 FLANGE LGB117306400
29130008311 FROM VALVE TO LEFT LIFTING CYLINDER SMALL CHAMBER TUBE
29130008321 FROM VALVE TO LEFT LIFTING CYLINDER BIG CHAMBER TUBE
29130008351 BIG CHAMBER THREE-WAY TUBE OF LIFTING CYLINDER
29130013331 HOSE
29130004081 CLAMP
29130004091 STEADY REST A
29130004071 BIG CHAMBER TUBE OF LEFT LIFTING CYLINDER
29130004021 OIL TUBE OF SMALL CHAMBER LEFT LIFTING CYLINDER
29130004111 STEADY REST B
29130008331 FROM VALVE TO RIGHT LIFTING CYLINDER BIG CHAMBER TUBE
29130008341 FROM VALVE TO RIGHT LIFTING CYLINDER SMALL CHAMBER TUBE
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
F4-2914001105 TILT CYLINDER ASSEMBLY
29140009881 INDICATING ROD OF BUCKET
4120001083 TILT CYLINDER HSGF-140*80*502-952P
29140011711 INDICATING PLATE OF BUCKET
29370015701 FRAME OF ADJACENT SWITCH
4130000882 ADJACENT SWICH E55-D15B1
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
29140008441 BIG CHAMBER TUBE OF TILT CYLINDER
4030000026 O-RING GB3452.1-32.5*3.55G
4130000883 ADJACENT SWICH E55-D15B1/08
29370015681 BRACKET
29140007551 INDICATIONG PLATE OF LIFTING CYLINDER
4041000703 TUBE LGB106-010120
4041000043 FLANGE LGB117310490
29140008411 OIL TUBE OF BIG CHAMBEROF TILT CYLINDER
4030000029 O-RING GB3452.1-37.5*3.55G
4041000027 FLANGE LGB117312551
29140008401 OIL TUBE OF SMALL CHAMBEROF TILT CYLINDER
4130000869 AUXILIARY RELAY 024-1Z6GD2
29140004061 STEADY REST A
4041000958 U-BOLT LGB159-03040
29140004071 STEADY REST B
F5-2910000950 HYDRAULIC TANK ASSEMBLY
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
4030000232 O-RING GB3452.1-170*3.55G
29100000051 SPRING
29100000041 FLANGE CAP
29100004071 TOP OIL-SUCTION FLANGE
29100004061 STRAIN CORE
29100007641 OIL RETURNING FLANGE
4120000093 GAUGE LEVEL YWZ-200
29100000361 FLANGE CAP
4120000099 BALL VALVE
29100008641 OIL-SUCTION FLANGE
4190000008 RING MAGNET LG03-CT76*32*15
4041000192 PLUG LGB13503341
4041000765 O-RING LGB168-12931
29100009061 FITTING
29100008551 SIDE BROAD
4120000452 OIL-SUPPLYING FILTER SFM-323M
4120001088 GAS-EXCHANGE FILTER L1.00807-51
29100009991 BLIND FLANGE
4030000233 O-RING GB3452.1-65*3.55G
4030000452 O-RING GB3452.1-160*3.55G
4041000680 PLUGGING LGB142-03016
4030000241 O-RING GB3452.1-20.0*1.80G
F6-4120001083 TILT CYLINDER(371401)
4120000868008 BUSHING
4120000868009 COVER
4120000868011 COVERΦ25
4120000868012 COVER 52X26X11
4120000868013 STEEL BALL 5
4120000868006 SUPPORTING RING RB132-S140*14.8*2.5
4120000868003 FABRICATE SEALING RB132-CKW1400
4120000868007 SEALING MEMBER AGGREGATE
4120000868005 SUPPORTING RING RB132-G80*29.5*2.5
4120000868002 SEALING RING RB132-CKS0800
4120000868004 SUPPORTING RING RB132-G80*9.5*2.5
4120000868 TILT CYLINDER HSGF-140*80*502-952
4120000868001 PUSTRING 80*90*6.3/8.3
4120000868017 PISTON ROD
4120000868018 COVER
4120000868020 SPHERICAL PLAIN BEARING
F7-4120001083 DUMP CYLINDER
4120001083102 PISTON ROD HSGF-140/80*502-1
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120001083104 CYLINDER COVER HSGF-180/90*542-2
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
