Description

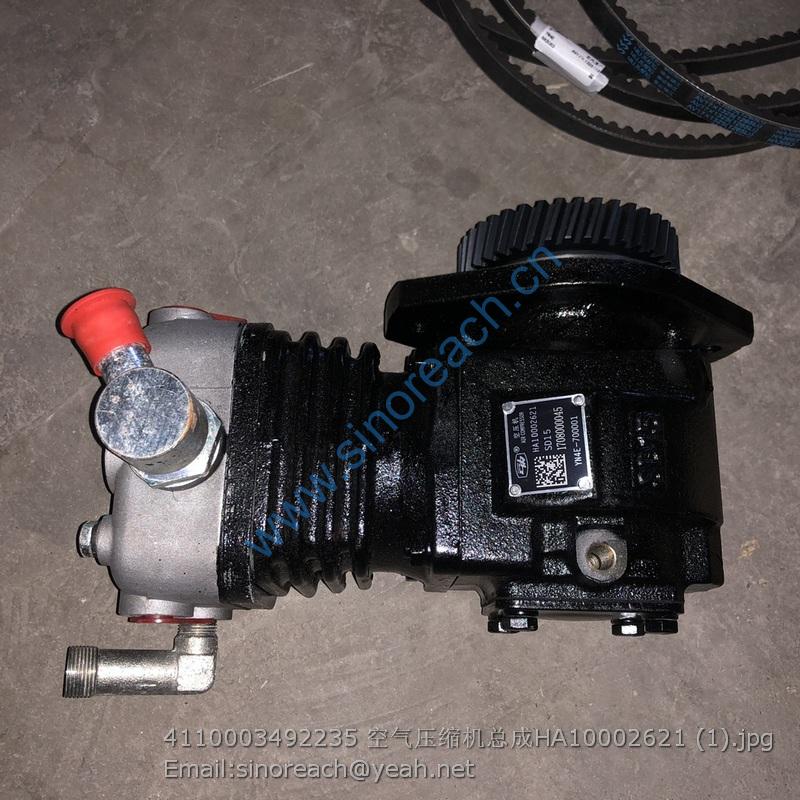

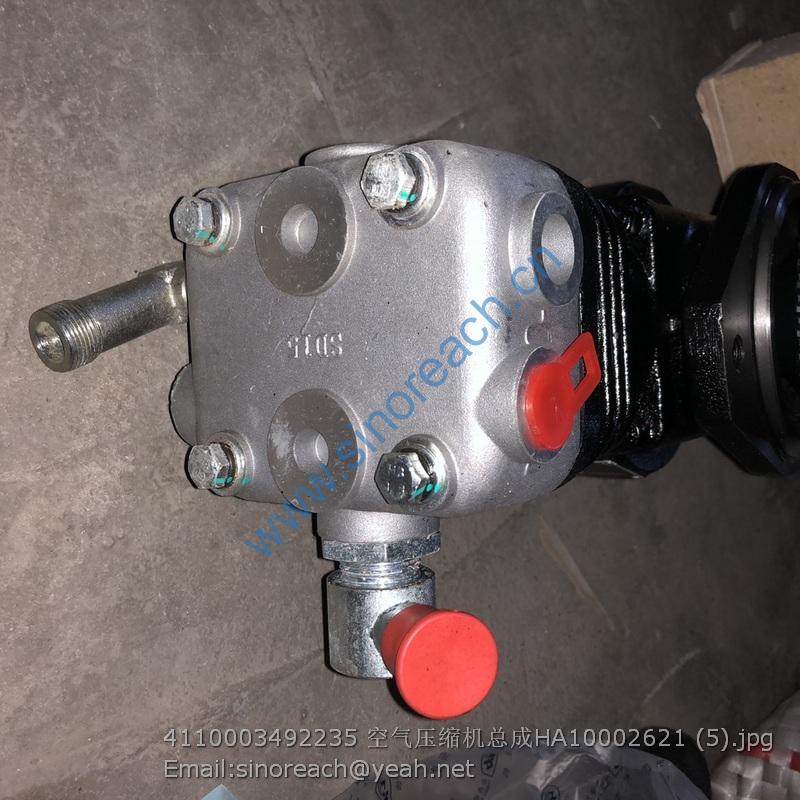

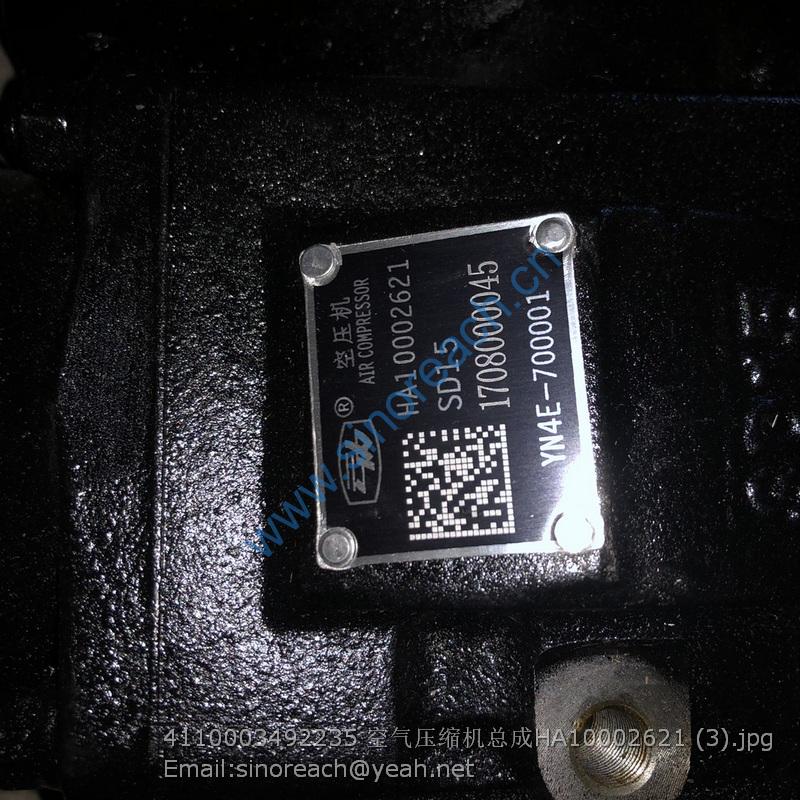

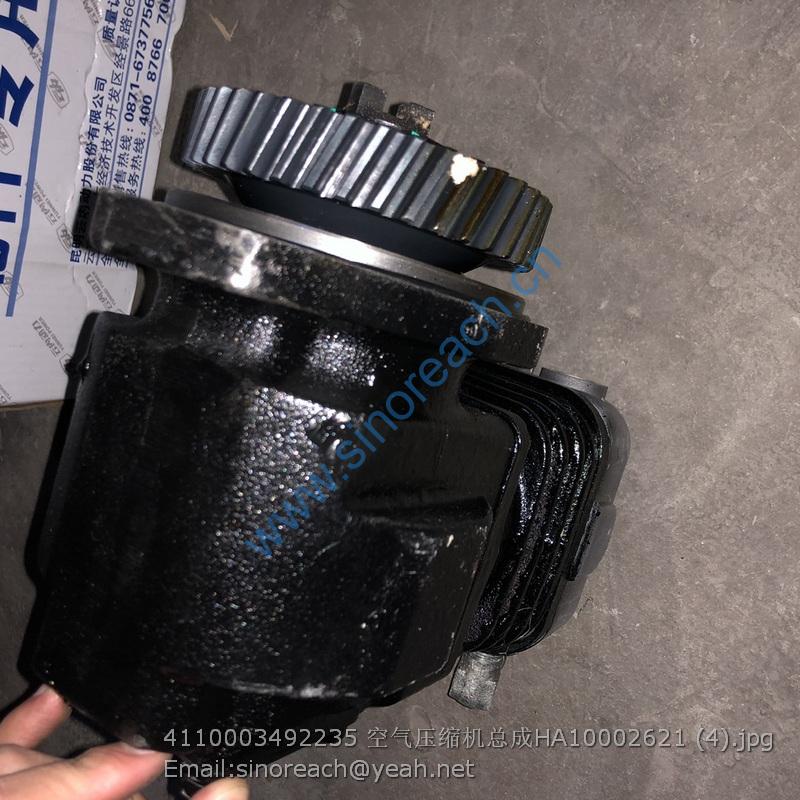

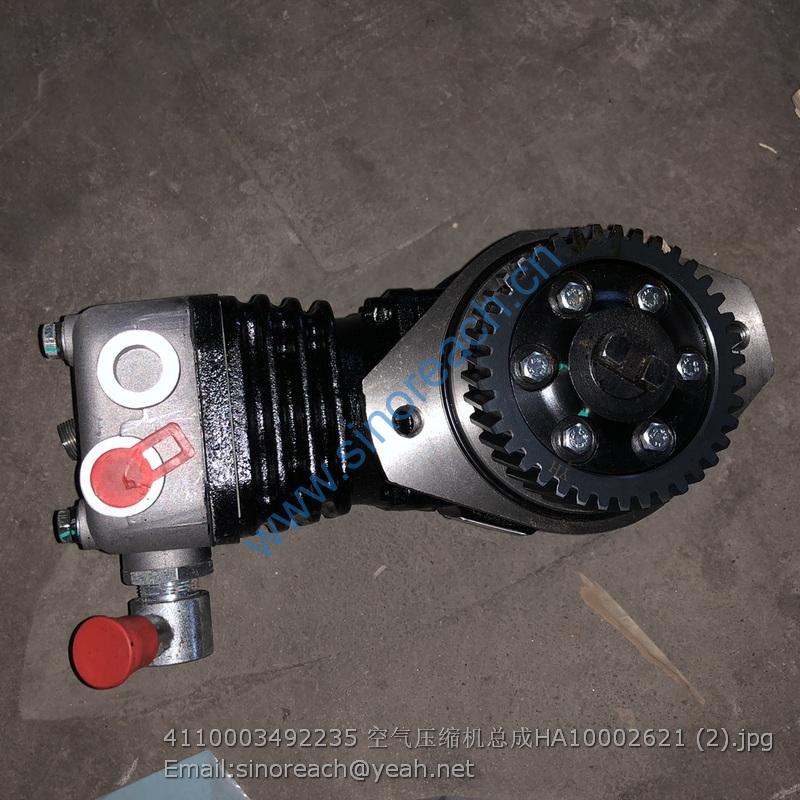

4110003492235 HA10002621 YN4E-700001 Air compressor
31 29220009031 三通接头 Three-way nipple Y 2
32 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 6
33 29220011131 固定板 Anchor plate Y 1
34 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1
35 29220020131 前桥右油管 Brake pipe Y 1
36 4041002783 软管LGB173-206057 Hose assembly Y 1
37 29220016531 弯接头总成 Nipple Y 2
38 29220017601 直接头 Nipple Y 3
39 29220024791 进气胶管-390 Hose assembly Y 1
40 4120006889 气制动阀HP3514AD-1(LinG)35゜A Brake valve Y 1
41 4120003757 制动灯开关YK209KLA Pressure switch Y 1
42 4041002782 软管LGB173-106069 Hose assembly Y 2
43 29220024801 进气胶管-1230 Hose assembly Y 1
44 4190001839 扎丝LG13-ZS4*160 Cable tie Y 2
45 29220018641 压块 Block Y 3
46 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 6
47 29220021121 钢管总成G Brake pipe Y 1
48 29220026721 空气源管理器模块 Water separator N 1
49 29220017521 钢管 Brake pipe Y 1
50 29220020171 后桥右油管 Brake pipe Y 1
51 4120009242 加力泵LG22-JLB-D Pneumatic cylinder Y 1
52 4120008464 加力泵呼吸器 Breather cap Y 1
1 29220021061 钢管总成D Brake pipe Y 1
2 4011001470 螺栓GB16674.1-M8*70flZnyc-8.8-480 Bolt Y 4
3 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4
4 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
5 29220021001 钢管总成A Brake pipe Y 1
6 29220021021 钢管总成B Brake pipe Y 1
7 29220021041 钢管总成C Brake pipe Y 1
8 29220024751 管排支架 Bracket Y 1
9 29220021211 压块 Block Y 2
10 29220021221 中心压块 Block Y 2
11 29220021101 钢管总成F Brake pipe Y 1
12 29220021081 钢管总成E Brake pipe Y 1
1 29220024381 底板 Bracket Y 1
2 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4
3 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4
4 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4
5 29220024391 护板总成 Protecting plate Y 1
6 4041002734 软管LGB173-106090 Hose assembly Y 1
7 29220026731 进气胶管 Hose assembly Y 1
8 29220000171 垫圈 Washer Y 1
9 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4
10 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4
11 29220018311 下盖板 Cover plate Y 1
12 4120006027 空气源管理器 Water separator Y 1
13 29220000811 垫圈 Washer Y 1
14 29220017601 直接头 Nipple Y 1
15 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
16 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
17 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
18 29220024411 支架 Bracket Y 1
