Description

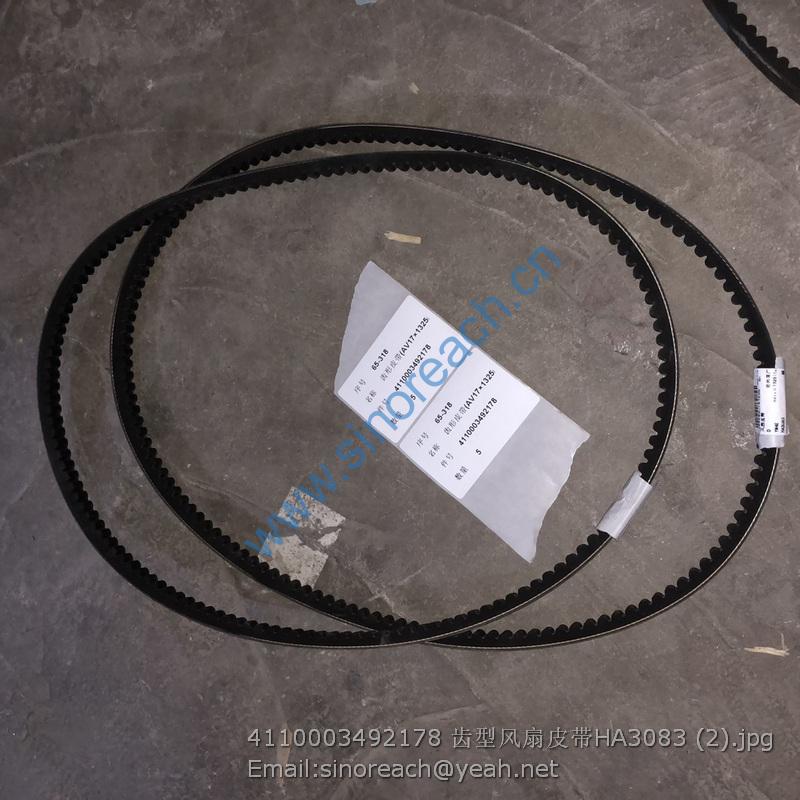

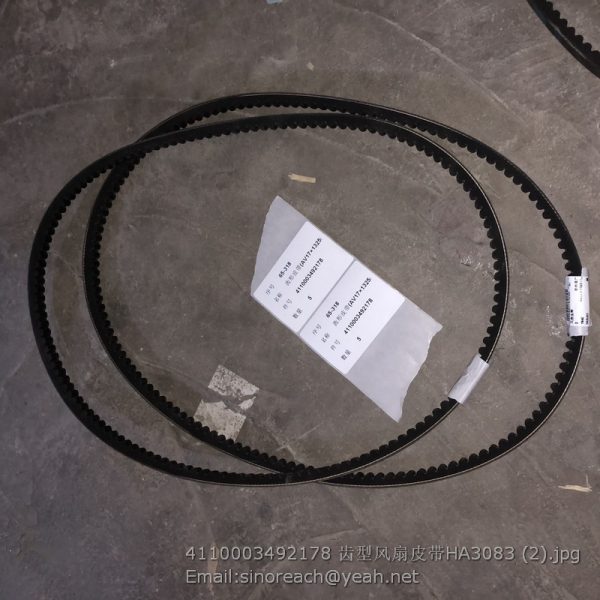

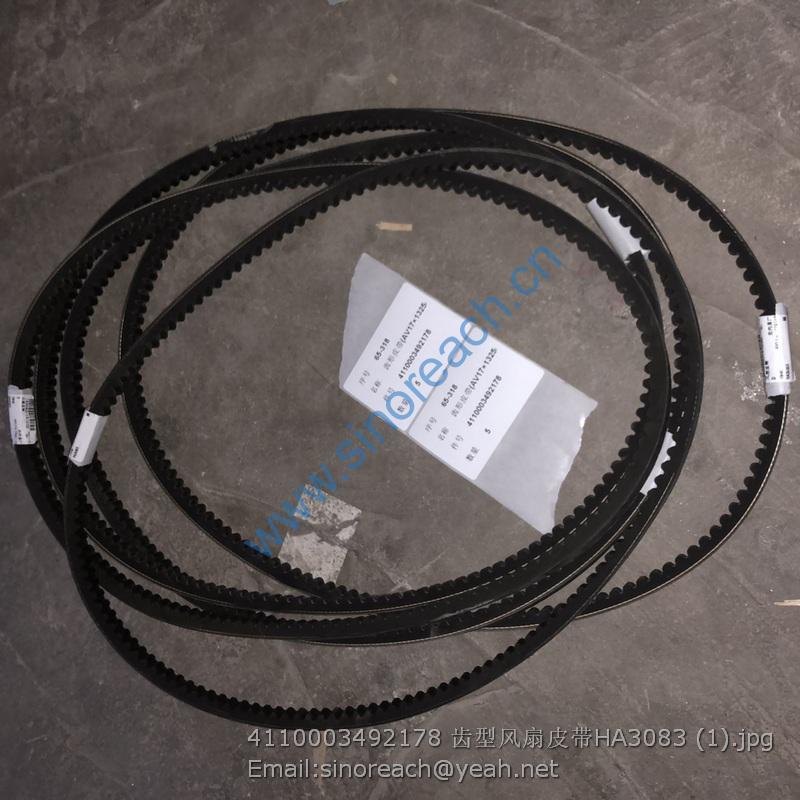

4110003492178 HA3083 Belt

31 4041001023 组合接头LGB143-01608 Nipple Y 1
32 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1
33 4041000602 软管LGB124-004170 Hose Y 1
34 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4
35 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 5
36 29120029541 滤油器固定板 Plate Y 1
37 4041000774 螺塞LGB135-01422 Plug Y 3
38 4041000767 O形圈LGB168-11124 O-ring Y 3
39 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 3
40 29120034901 油路块总成 Block Y 1
41 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1

1 4120006566001 端盖2022000018 End cover N 2
2 4120006566002 过载阀2022000035 Valve N 1
3 4120006566003 阀体2022000062 Valve body N 1
4 4120006566004 阀座2022000032 Valve seat N 1
5 4120006566005 阀体2022000022 Valve body N 1
6 4120006566006 卸荷阀总成2022000047 Valve N 1
7 4120006566007 阀座2022000019 Valve seat N 2
8 4120006566008 动臂联端盖2022000003 End cover N 1
9 4120006566009 动臂联阀杆2022000015 Valve rod N 1
10 4120006566010 转斗联阀杆2022000016 Valve rod N 1
11 4120006566011 隔套2022000013 Spacer sleeve N 2
12 4120006566012 转斗联端盖2022000007 End cover N 1
13 4120006566013 活塞2022000004 Piston N 1
14 4120006566014 弹簧2022000005 Spring N 1
15 4120006566015 盖2022000006 End cover N 1
16 4120006566016 阀块2022000052 Valve block N 1
17 4120006566017 挡圈2022000051 Retaining ring N 1
18 4013000260 P-螺母GB6173-M24*2-05 Nut gb6173-m24*2-05 Y 1
19 4120006566018 过载阀2022000036 Valve N 1
20 4120006566019 过载阀2022000049 Valve N 1

1 4120006636 多路阀KM300-II-19A Control valve Y 1
2 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
3 29120020701 多路阀进油钢管 Pipe Y 1
4 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 2
5 4011001520 螺栓GB5782-M12*65flZnyc-8.8-480 Screw Y 2
6 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8
7 4041000133 直接头LGB120-01414 Nipple Y 5
8 4041000767 O形圈LGB168-11124 O-ring Y 9
9 4190000204 三通接头ET08LOMDA3C Three-way nipple Y 1
10 4041000604 直接头LGB120-01614 Nipple Y 2
11 4041001023 组合接头LGB143-01608 Nipple Y 2
12 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
13 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 3
14 4041001047 组合接头LGB143-01406 Nipple Y 3
15 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 4
16 29120019571 多路阀支架 Bracket Y 1
17 4011001585 螺栓GB5782-M10*80flZnyc-10.9-480 Bolt Y 3
18 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6
19 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 3
20 4011001468 螺栓GB16674.1-M14*35flZnyc-8.8-480 Bolt Y 4
21 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 2
22 29120019601 管夹 Clamp Y 1
23 29120019561 多路阀固定板 Valve plate Y 1
24 29120019611 固定板 Plate Y 1
25 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 2
26 29120033221 多路阀回油钢管 Pipe Y 1
27 4011001355 螺栓GB5782-M12*70flZnyc-8.8-480 Screw Y 4
28 4041000774 螺塞LGB135-01422 Plug Y 2
