Description

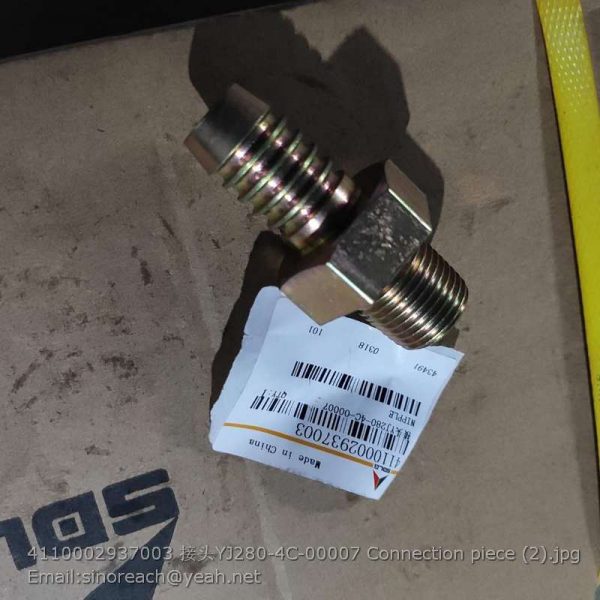

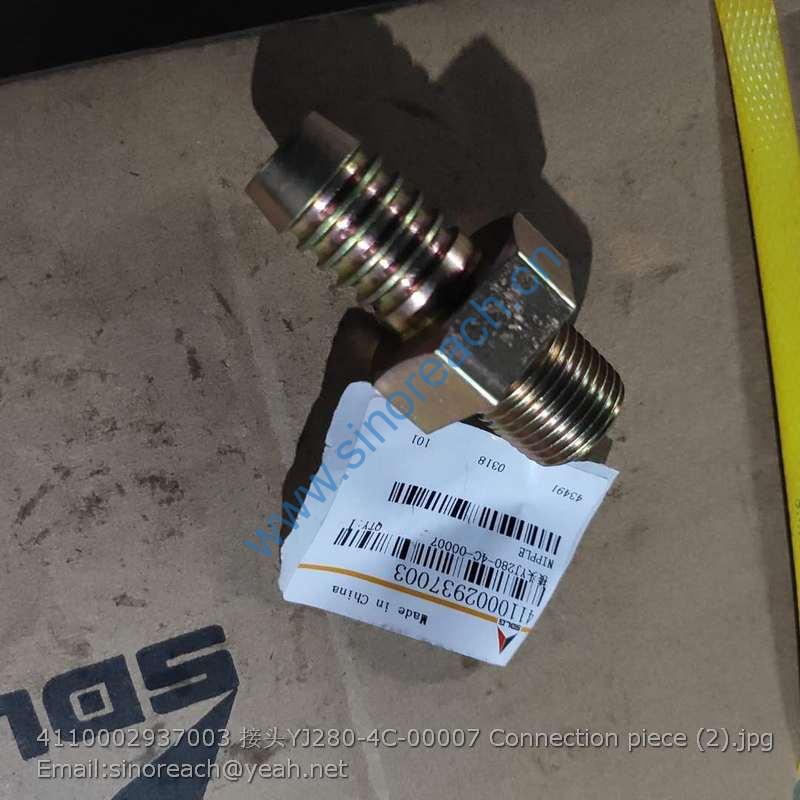

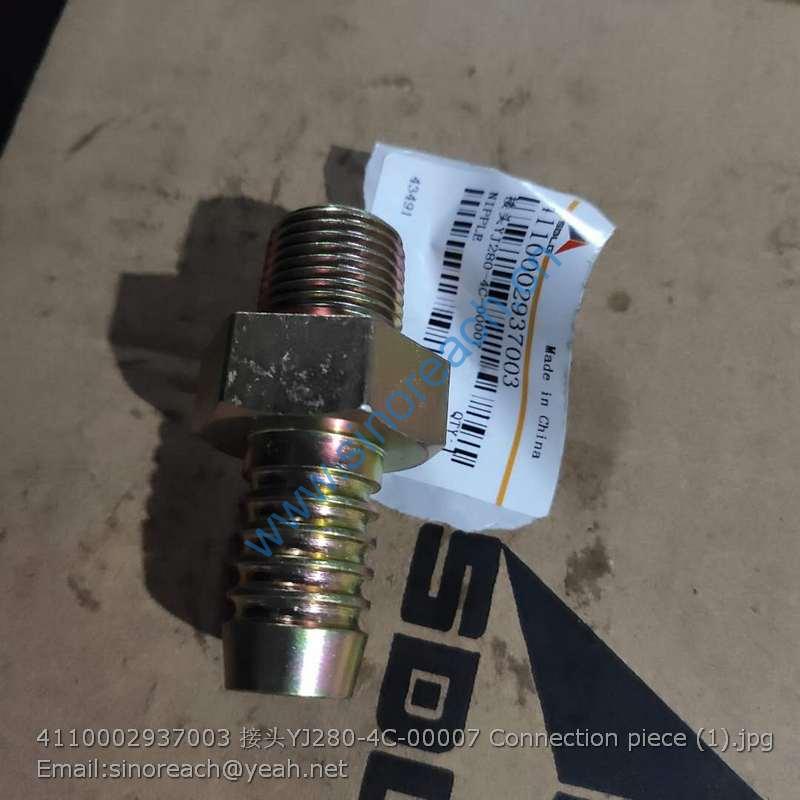

4110002937003 Connection piece YJ280-4C-00007 SDLG
31 4120000370013 阀体DXS-08 Valve body Y 1
32 4120002027034 O型圈16X1.8GB3452.1-82 O-ring Y 2
33 4120002027033 O型圈20X1.8GB3452.1-82 O-ring Y 2
34 4120002027035 O型圈11.8X1.8GB3452.1-82 O-ring Y 1
35 4120002432424 螺塞DXS-18-04 Plug Y 1
36 4120002027002 手柄组件DXS-01 Control kit Y 1
37 4120000370014 橡胶罩DXS-09 Cover Y 1
38 4120000370005 手柄接头DXS-02 Nipple Y 1
39 4120002027036 螺母M12GB6170-86 Nut Y 1
40 4120002027037 小垫圈-20-140HVGB848-85 Washer Y 1
41 4120002027038 铰座DXS-07-01 Seat N 1
42 4120002027048 长销DXS-07-06 Pin Y 1
43 4120002027040 铰接DXS-07-02 Attaching link N 1
44 4120004305001 铰座DXS-07-07 Bracket Y 1
45 4110001321160 螺母GB6170-86 M6 DIN934 8 0637 Nut N 4
46 4120002027042 压销DXS-03-01 Pin N 4
47 4120002027043 挡圈8GB895.1-86 Retaining ring N 4
48 4120002027044 压销座DXS-03-03 Pin N 4
49 4120002027045 压板DXS-03-02 Cover Y 4
50 4120000370009 固定板DXS-04 Plate Y 1
51 4120004305002 安装板DXS-07-03b Fixation plate Y 1
52 4120002027047 短销DXS-07-04 Pin N 2
53 2810000357004 螺母M20-04（GB6172-86） Nut Y 1
54 4110001321157 弹性圆柱销GB879-86 6×30 DIN1481 Spring pin Y 1
55 4120002027049 压杆1DXS-10-01 Plate Y 2
56 4120002027050 压杆2DXS-12-01 Plate Y 2
1 4120001153 动臂油缸HSGL-90*50*640-965 Lifting cylinder Y 2
2 29130006521 左动臂缸小腔钢管 Pipe Y 1
3 29130006531 左动臂缸大腔钢管 Pipe Y 1
4 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 4
5 29130006541 右动臂腔小腔钢管 Pipe Y 1
6 29130006551 右动臂缸大腔钢管 Pipe Y 1
7 29130008271 动臂联三通钢管 Pipe Y 1
8 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
9 4041000582 直接头LGB120-02630 Nipple Y 2
10 4041000685 O形圈LGB168-12631 O-ring Y 2
11 4041000827 软管LGB128-406080 Hose assembly Y 2
12 4041001375 软管LGB128－406070 Hose assembly Y 2
13 29130006561 动臂联三通钢管 Pipe Y 1
14 29130009681 管夹 Clamp Y 2
15 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
16 29130006571 动臂联大腔二通钢管 Pipe Y 2
17 29130006581 动臂联小腔二通钢管 Pipe Y 2
18 4041001225 U形螺栓LGB159-11826 U-bolt Y 4
19 4041001226 底板LGB160-1826 Bracket Y 4
20 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8
21 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 8
22 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 2
23 29130006591 动臂缸胶管 Hose assembly Y 4
1 4120001153020 缸筒总成24A130000 Cylinder tube Y 1
2 4120001153021 活塞杆总成24A110000 Piston rod Y 1
3 4120001153022 缸盖24A170000 Cover Y 1
4 4120001153023 衬套24S250202 50*55*20 Bushing Y 1
5 4120001153024 钢丝挡圈-孔用24C001070 D58.6*2t Retaining ring Y 1
6 4120001153025 密封件包 Sealing ring kit Y 1
7 4120001153025 密封件包 Sealing ring kit Y 1
8 4120001153025 密封件包 Sealing ring kit Y 1
9 4120001153025 密封件包 Sealing ring kit Y 1
10 4120001153026 钢丝挡圈-孔用24C001090 D65.6*2t Retaining ring Y 1
11 4120001153025 密封件包 Sealing ring kit Y 1
12 4120001153025 密封件包 Sealing ring kit Y 1
13 4120001153025 密封件包 Sealing ring kit Y 1
14 4120001153027 活塞24A180000 D90*48L Piston Y 1
15 4120001153025 密封件包 Sealing ring kit Y 1
16 4120001153025 密封件包 Sealing ring kit Y 1
17 4120005685008 螺钉-内六角凹端紧定24T908161 M8*16L Screw Y 1
18 4120001153028 尼龙块24C002110 D8*7.5 Block N 1
19 4120001153025 密封件包 Sealing ring kit Y 2
20 4120001153029 轴套24A150100 D50.2*D60*45L Bushing Y 1
21 4120006315008 固定座24C003010 Seat Y 1
1 4041000582 直接头LGB120-02630 Nipple Y 2
2 4041000685 O形圈LGB168-12631 O-ring Y 2
3 29140019951 转斗联大腔钢管 Pipe Y 1
4 4041002083 U形螺栓LGB159-02028 U-bolt Y 4
5 4041001240 底板LGB160-2028 Bracket Y 4
6 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 8
7 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8
8 29140019991 转斗缸大腔胶管 Hose Y 1
9 29140019971 转斗联小腔钢管 Pipe Y 1
10 29140020001 转斗缸小腔胶管 Hose Y 1
11 4011001239 螺栓GB5783-M12*20flZnyc-8.8-480 Bolt Y 2
12 29140007551 动臂指示板 Indicator plate Y 1
13 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
14 29140019941 转斗缸大腔钢管 Pipe Y 1
15 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1
16 4120006960 转斗油缸HSGL-100*55*412-779A Tilt cylinder Y 1
17 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
18 29140006531 管夹 Clamp Y 1
19 4041000187 直接头LGB120-02622 Nipple Y 1
20 4041000771 O形圈LGB168-11924 O-ring Y 1
21 4041000774 螺塞LGB135-01422 Plug Y 1
22 4041000767 O形圈LGB168-11124 O-ring Y 1
23 29140011701 转斗指示板 Indicator plate Y 1
24 4011001201 螺栓GB5783-M14*35flZnyc-10.9-480 Screw Y 2
25 4013000410 螺母GB6170-M14flZnyc-8-480 Nut Y 2
26 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4
