Description

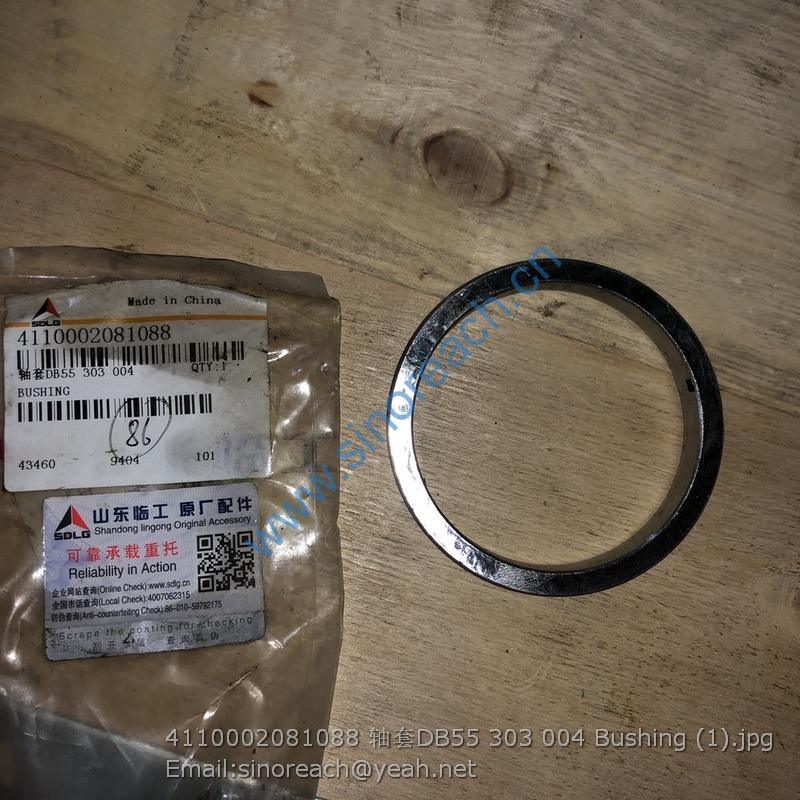

4110002081088 Bushing DB55 303 004 SDLG
1 4190001832 扎丝RTGB-200ST Cable tie Y 8
2 29440001882 ECU线束 Wiring harness Y 1
3 14400342 扎带 Strip clamp Y 1
4 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1
5 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 1
6 4045000015 电瓶线LGB340-50*350P1L8L12-4 Battery cable Y 1
7 29440001361 预热电源线 Cable harness Y 1
8 26370002431 红电瓶线护套 Cable sleeve Y 2
9 4130001988 接触器JCC200/1C24·48A Relay Y 1
10 4014000023 螺钉GB818-M5*10EpZn-4.8 Screw Y 2
11 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 2
12 29440001351 预热继电器电源线 Cable harness Y 1
13 4014000063 螺钉GB818-M6*25EpZn-4.8 Screw Y 4
14 4130000869 中间继电器024-1Z6GD2 Relay Y 1
15 4190001839 扎丝LG13-ZS4*160 Cable tie Y 12
16 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 3
1 4043000179 左边斗齿LGB304-A2-1 Bucket tooth Y 1
2 4015000001 垫圈GB1230-16EpZn-45 Washer Y 14
3 4013000016 螺母GB6170-M16EpZn-8 Nut Y 14
4 29170031571 铲斗 Bucket body Y 1
5 4043000108 斗齿LGB304-A1-1 Bucket tooth Y 4
6 4040000007 螺栓LGB002-M16*70 Bolt Y 12
7 4040000009 螺栓LGB002-M16*40 Bolt Y 2
8 4043000180 右边斗齿LGB304-A3-1 Bucket tooth Y 1
9 29170031561 铲斗总成 Bucket Y 1
1 4110002081080 圆螺母M33×1.5 DB55 303 017 Round nut Y 2
2 4015000396 P-垫圈GB858-33 Washer Y 2
3 4110002081081 压板DB55 303 007 Washer Y 2
4 4030000237 O形圈GB3452.1-34.5*3.55G O-ring Y 1
5 4110002081082 法兰DB55 303 002 Bearing flange Y 1
6 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 6
7 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
8 4110002081083 唇形密封圈FB60×80×8/F GB/T13871.1- Sealing ring Y 2
9 4110002081084 纸垫DB55 303 016 Sealing ring N 1
10 4110002081085 油封座DB55 303 009 Sealing retainer Y 1
11 4110002081086 调整垫片DB55 303 010 Shim Y 1
12 4021000171 P轴承GB297-30308 Roller bearing Y 2
13 4110002081087 齿轮DB55 303 006 Gear Y 1
14 4110002081088 轴套DB55 303 004 Bushing Y 1
15 4110002081089 输出轴DB55 303 001 Output shaft Y 1
16 4110002081090 轴套DB55 303 005 Bushing Y 1
17 4030000030 O形圈GB3452.1-40.0*2.65G O-ring Y 2
18 4110002081091 纸垫DB55 303 015 Sealing ring Y 1
19 4014000134 螺钉GB70.1-M10*30EpZn-8.8 Screw Y 8
20 4015000525 E-垫圈GB93-10flZnyc-480 Washer Y 8
21 4110002081092 唇形密封圈FB50×70×8 GB/T13871.1- Sealing ring Y 2
22 4110002081093 油封盖DB55 303 008 Cover Y 1
23 4110002081094 法兰DB55 303 003 Bearing flange Y 1
