Description

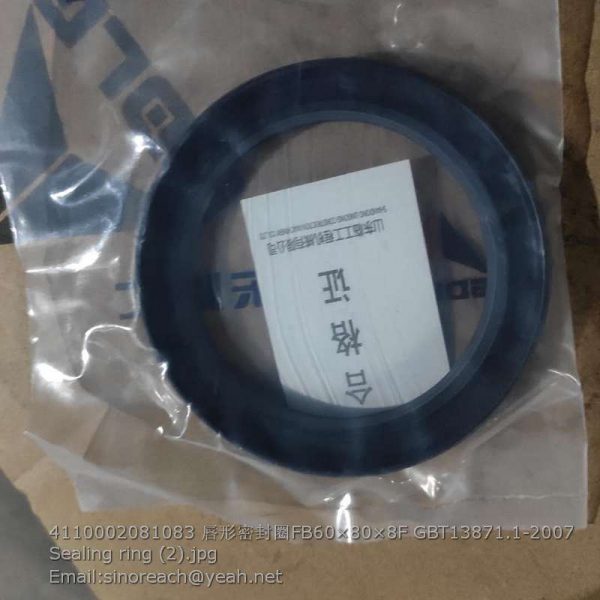

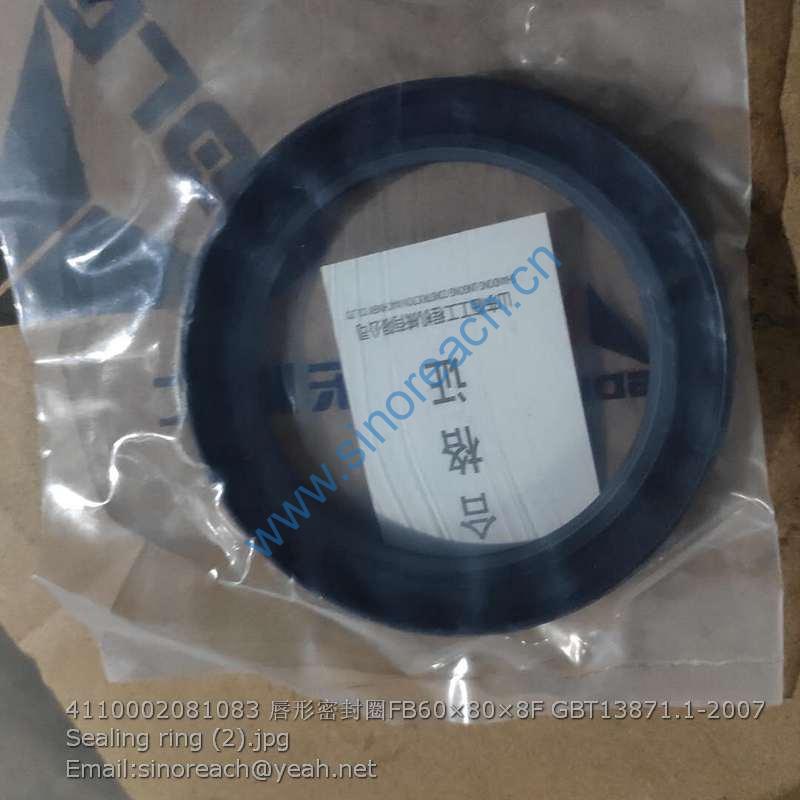

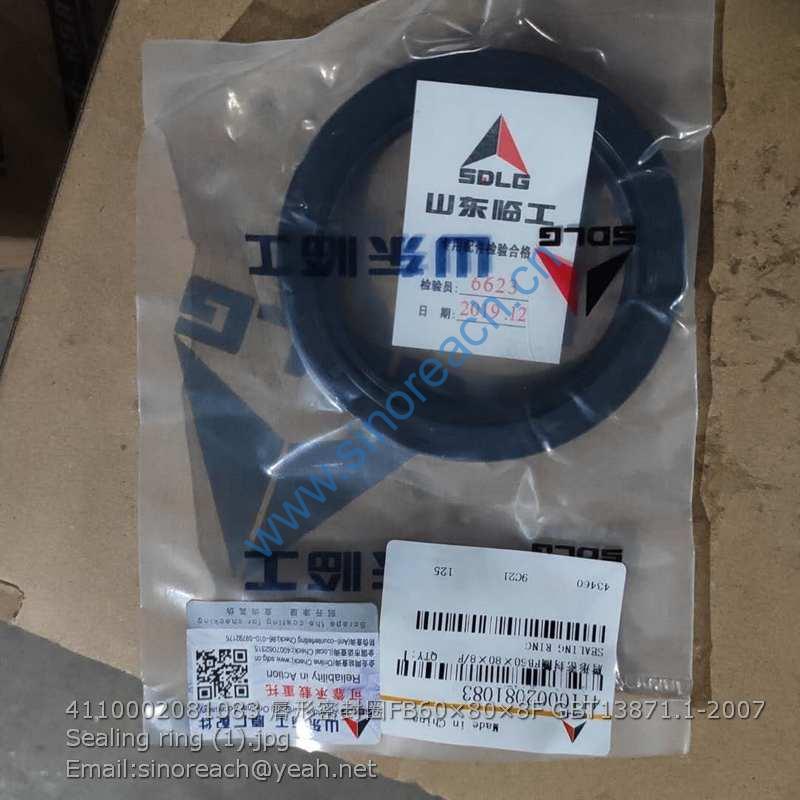

4110002081083 Sealing ring FB60×80×8F GBT13871.1-2007 SDLG
1 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 7
2 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 11
3 29350011481 左支撑架 Bracket Y 1
4 4011001273 螺栓GB5783-M6*20flZnyc-8.8-480 Screw Y 6
5 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 6
6 4041002386 管夹LGB169-B25*12.5 Clamp Y 7
7 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 7
8 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 7
9 4043001353 卡子胶条LGB320-U350 Sealing strip Y 1
10 29350011491 右支撑架 Bracket Y 1
11 29350013612 空调系统 Air conditioning unit N 1
12 4190000019 扎丝LG13-ZS3*150 Cable tie Y 10
13 29310022301 橡胶套 Rubber sleeve Y 2
14 29350010311 出水管 Hose Y 1
15 29350010321 进水管 Hose Y 1
16 29350010231 支架 Bracket Y 1
17 29290012761 空调接口风道 Air duct Y 1
18 29350010241 支架 Bracket Y 1
19 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 8
20 4130000075 螺栓GB16674-M6*12EpZn-8.8 Screw Y 3
21 29350010291 过渡管 Copper tube Y 2
22 4017000024 环箍QC390-D26 Clamp Y 4
23 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 2
24 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 2
25 29350011751 储液器支架 Bracket N 1
26 29350013291 压缩机支架 Bracket Y 1
27 4011000311 螺栓GB5782-M10*135EpZn-8.8 Screw Y 1
28 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2
29 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 1
30 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 1
31 26350003331 调整螺杆 Adjusting bar Y 1
32 4013000016 螺母GB6170-M16EpZn-8 Nut Y 2
33 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 1
34 29350009731 固定块 Block Y 1
35 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 1
36 4110000624 皮带A17-370 Belt Y 1
37 4041002384 管夹LGB169-A25*12.5 Clamp Y 7
38 29350013621 支架 Bracket Y 1
1 4130002207 冷凝器总成 Condenser Y 1
2 4120006243 压冷管 Hose Y 1
3 4120008457 冷储管 Hose N 1
4 4011000276 螺栓GB5783-M6*25EpZn-8.8 Bolt Y 5
5 4015000035 垫圈GB93-6-65Mn Spring washer Y 6
6 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 6
7 4130002912 控制面板 Panel Y 1
8 4130002911 蒸发器总成 Evaporator Y 1
9 4190002765 压力开关 Switch Y 1
10 4130002316 空调线束 Wiring harness Y 1
11 4190002764 蒸压管 Hose Y 1
12 4120008458 储蒸管 Hose N 1
13 4019000023 扎丝 LG13-ZS4*185 Cable tie Y 2
14 4190003468 排水管组件 Water pipe Y 2
15 4190002863 储液器 Reservoir Y 1
16 4011000440 螺栓GB5783-M6*40EpZn-8.8 Bolt Y 2
17 4013000211 螺母GB889.1-M6EpZn-8 Nut Y 2
18 4190002864 储液器支架 Bracket Y 1
19 4011000291 螺栓GB5783-M6*30EpZn-8.8 Screw Y 1
20 4011001074 螺栓GB5786-M10*1.25*35EpZn-8.8 Screw Y 1
21 4015000025 垫圈GB93-10-65Mn Spring washer Y 1
22 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 1
23 4190002758 压缩机 Compressor Y 1
1 29350010161 上壳 Closure Y 1
2 4190002843 蒸发风机 Fan Y 1
3 4130002629 蒸发器线束 Cable harness Y 1
4 4190002845 固定卡 Clamp Y 9
5 4190002826 换热器芯体组件 Cell core Y 1
6 29350010181 下壳 Closure Y 1
7 4190002822 膨胀阀 Expansion valve Y 1
8 4190002848 连接管组件 Hose Y 1
9 4190002830 固定板 Bracket Y 1
10 4190002827 蒸发器芯体 Cell core Y 1
11 4190002825 传感器 Sensor N 1
12 4130002630 继电器 Relay Y 2
13 4013000210 螺母GB889.1-M8EpZn-8 Nut Y 6
14 4014000302 螺钉GB819.1-M5*12EpZn-4.8 Screw Y 4
15 4014000397 螺钉GB70.1-M5*40EpZn-8.8 Screw Y 2
16 4014000398 螺钉GB818-M5*25EpZn-4.8 Screw Y 2
17 4015000034 垫圈GB93-5-65Mn Spring washer Y 2
18 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 2
1 4120002207001 冷凝器壳体GKL33-5.0D-10 Closure Y 1
2 4120002207002 冷凝风机TB5417 Fan Y 1
3 4120002207003 冷凝器芯GKL33-5.0D-20 Condenser Y 1
4 4120002207004 冷凝器进风网GKL33-5.0D-30 Fan guard Y 1
5 4120002207005 PU不干胶T7101-316-20-3 Rubber plate Y 2
6 4120002207006 PU不干胶T7103-490-25-10 Rubber plate Y 2
7 4130002211001 螺栓GB90748-M6*16 Screw Y 4
8 4190002907009 铭牌T0021 Name plate N 1
9 4014000428 P-螺钉GB845-ST4.2*16-C-H Screw Y 6
10 4190002123012 螺栓GB5787-86 M6%x16 Y 4
11 4013000358 螺母GB6187.1-M6EpZn-8 Nut Y 4
