Description

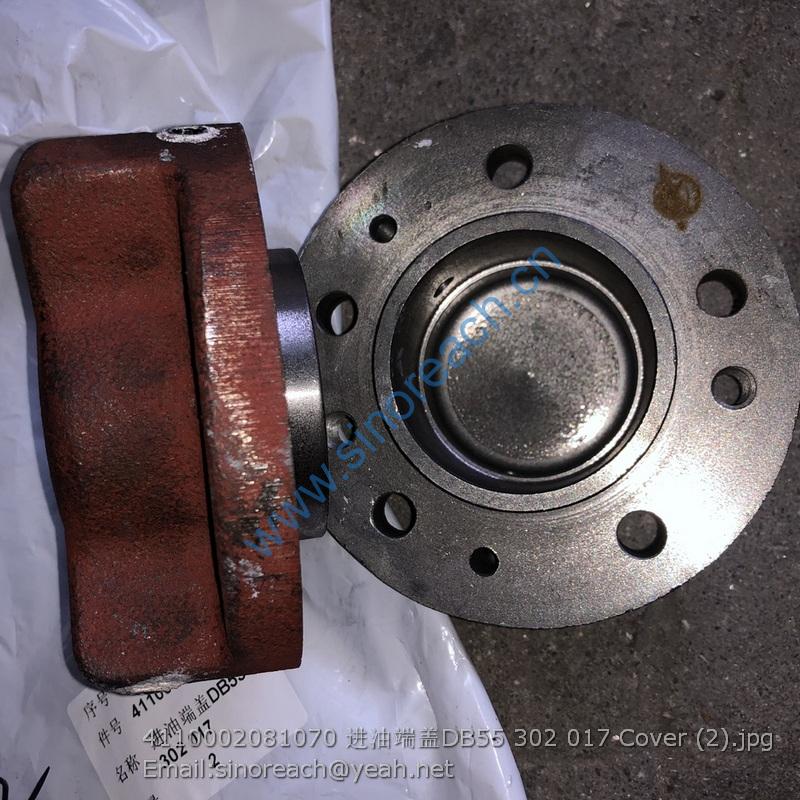

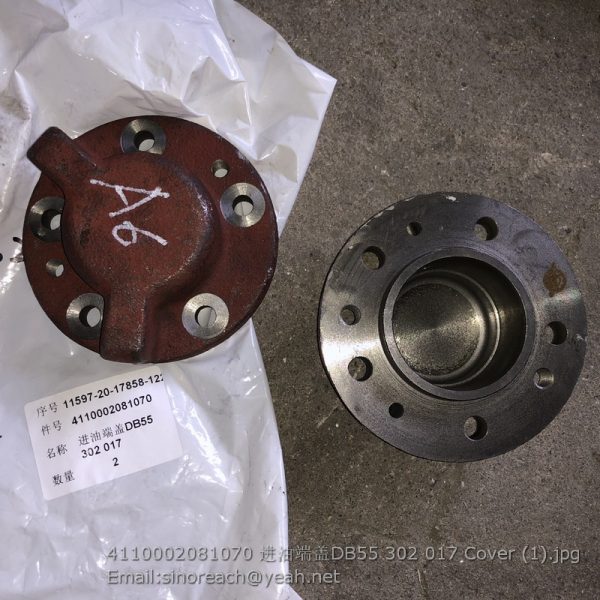

4110002081070 Cover DB55 302 017 SDLG

ey Part No. Description Spare parts Y/N Qty Remarks
1 4043000171 垫片LGB303-55*90*2 Shim Y 1
2 4043000170 垫片LGB303-55*90*1 Shim Y 1
3 29160007641 销轴 Pin Y 1
4 29160007621 压盘 Lock ring Y 1
5 4043000169 轴套LGB302-55*80B3 Bushing Y 2
6 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 12
7 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 12
8 29160007671 销轴 Pin Y 2
9 4043002088 轴套LGB302-50*50A2 Bushing Y 3
10 29160007631 锁销 Lock pin Y 2
11 29160007611 盖板 Cover plate Y 1
12 4043002086 轴套LGB302-60*90A2 Bushing Y 2
13 4043000137 销轴LGB301-50*75*135-40Cr Weld pin Y 4
14 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 6
15 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 6
16 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9
17 4043000226 P-轴套LGB302-50*58A2 Bushing Y 2
18 4043000138 销轴LGB301-75*109*200-40Cr Weld pin Y 1
19 4043002089 轴套LGB302-75*110A2 Bushing Y 1
20 29160007691 压板 Plate Y 2
21 4015000166 挡圈GB894.1-22-65Mn Retaining ring Y 2
22 4011001593 螺栓GB5782-M16*115flZnyc-8.8-480 Screw Y 1
23 4013000393 螺母GB6170-M16flZnyc-8-480 Nut Y 2
24 4043000331 垫片LGB303-75*130*1 Shim Y 2
25 4043000332 垫片LGB303-75*130*2 Shim Y 1
26 4043000067 垫片LGB303-50*100*1 Shim Y 4
27 4043000333 垫片LGB303-50*100*2 Shim Y 2
28 4043002168 销轴LGB301-50*75*135-1200G Weld pin Y 2

1 4041000796 直接头LGB120-02628 Nipple Y 1
2 4041000779 O形圈LGB168-12331 O-ring Y 1
3 29120006551 组合直角接头 Nipple Y 1
4 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1
5 29190007751 泵出油胶管 Hose assembly Y 1
6 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4
7 29190008061 压盖 Flange half Y 1
8 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
9 4120001084 双联泵CBGj2050/1010-XF Gear pump Y 1
10 29110000043 泵用密封垫 Gasket Y 1
11 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
12 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
13 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
14 29190007761 泵吸油钢管 Pipe Y 1
15 4030000031 O形圈GB3452.1-42.5*3.55G O-ring Y 1
16 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 4
17 4017000018 喉箍JB8870-d70 Clamp Y 2
18 4090000042 吸油胶管HG4-763-51*490 Hose assembly Y 1
19 4011000095 螺栓GB5783-M16*35EpZn-8.8 Screw Y 6
20 4015000305 垫圈GB96.1-16EpZn-300HV Retaining ring Y 6

1 4120001084001 螺钉44010103180 Screw Y 4
2 4120000171043 弹簧垫圈41050200600 Spring washer Y 2
3 4120000171042 平垫圈21061900110 Washer Y 2
4 4120000171044 挡圈41060100200 Retaining ring Y 1
5 4120000171045 旋转轴唇形密封圈43020200100 Sealing ring Y 2
6 4120000171046 挡圈41060100100 Retaining ring Y 1
7 4120001084002 前盖21060200110 Cover Y 1
8 4120000171048 环形密封圈 44020100300 Sealing ring Y 1
9 4120000171049 滚针轴承42010100100 Needle bearing Y 4
10 4120000171050 定位套21020900110 Spacer sleeve Y 4
11 4120000171051 耳形挡片21020800110 Retaining ring Y 2
12 4120000171052 耳形密封垫21020700110 Sealing washer Y 2
13 4120000171053 侧板21020600110 Side board Y 2
14 4120001084003 主动齿轮轴21061009010 Drive shaft Y 1
15 4120001084004 从动齿轮轴21020409010 Shaft Y 1
16 4120001084005 泵体21061709010 Pump body Y 1
17 4120000171057 环形密封圈 44020100600 Sealing ring Y 1
18 4120001084006 中间体21061200210 Centering block Y 1
19 4120000171059 挡圈41060100600 Retaining ring Y 1
20 4120000171060 环形密封圈 44020100200 Sealing ring Y 1
21 4120000171061 滚针轴承42010100300 Needle bearing Y 4
22 4120000171062 定位套21010900110 Spacer sleeve Y 4
23 4120000171063 耳形挡片21010800110 Retaining ring Y 2
24 4120000171064 耳形密封垫21010700110 Sealing washer Y 2
25 4120000171065 侧板21010600110 Side board Y 2
26 4120000171066 主动齿轮轴21061101010 Drive shaft Y 1
27 4120000171067 从动齿轮轴21010401010 Shaft Y 1
28 4120000171068 泵体21071801010 Pump body Y 1
29 4120000171069 O形圈43010102400 O-ring Y 1
30 4120005081016 环形密封圈 44020100100 Sealing ring Y 1

1 4120000171070 后盖21070500110 Cover Y 1
32 4120000171071 直动式溢流阀46000000100 Valve Y 1
33 4120000171072 螺钉44010100180 Screw Y 4
34 4120000171073 弹簧垫圈41050200800 Spring washer Y 4
35 4120000171074 密封件包 Sealing ring kit Y 1

1 29200010591 转向柱总成 Steering column N 1
2 4120003949 转向器BZZ5-320A Control valve Y 1
3 4041000564 直接头LGB120-02620 Nipple Y 4
4 4041000783 O形圈LGB168-11724 O-ring Y 4
5 29200010851 过渡接头 Nipple Y 1
6 4041000774 螺塞LGB135-01422 Plug Y 2
7 4041000767 O形圈LGB168-11124 O-ring Y 2
8 4041000187 直接头LGB120-02622 Nipple Y 2
9 4041000771 O形圈LGB168-11924 O-ring Y 2
10 4041002124 软管LGB165-010085 Hose Y 1
11 29200008561 转向器出油钢管A Pipe Y 1
12 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
13 4041000133 直接头LGB120-01414 Nipple Y 1
14 4041000775 O形圈LGB168-21124 O-ring Y 1
15 29200004031 转向器出油钢管B Hose assembly Y 1
16 4041000131 直接头LGB120-01412 Nipple Y 3
17 4041000784 O形圈LGB168-10924 O-ring Y 3
18 4041002438 软管LGB165-003095 Hose assembly Y 1
19 4120000709 优先阀VLE-150 Priority valve Y 1
20 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 2
21 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2
22 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
23 4041000590 软管LGB127-010110 Hose assembly Y 1
24 29200007931 直角接头 Nipple Y 1
25 29200007841 优先阀反馈油管 Hose assembly Y 1
