Description

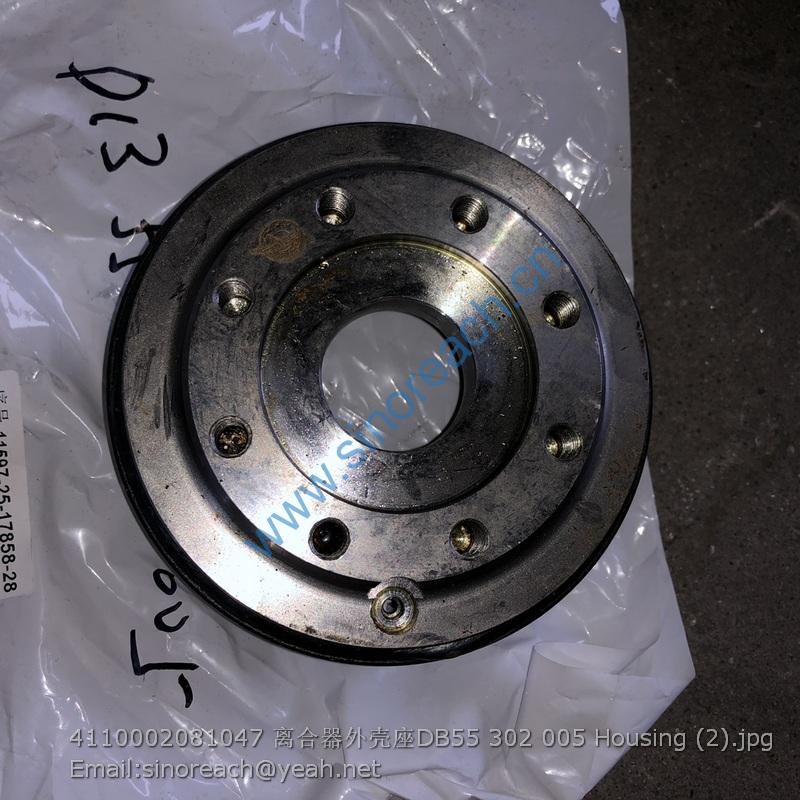

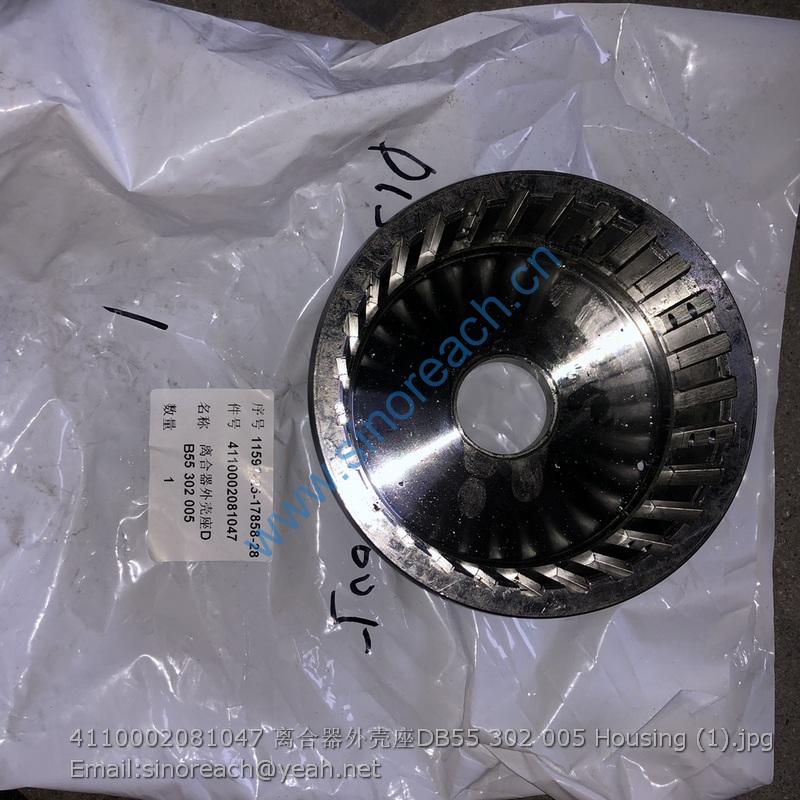

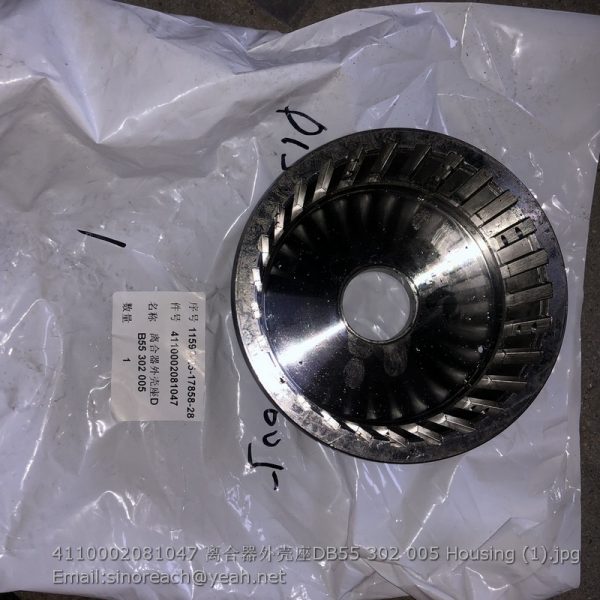

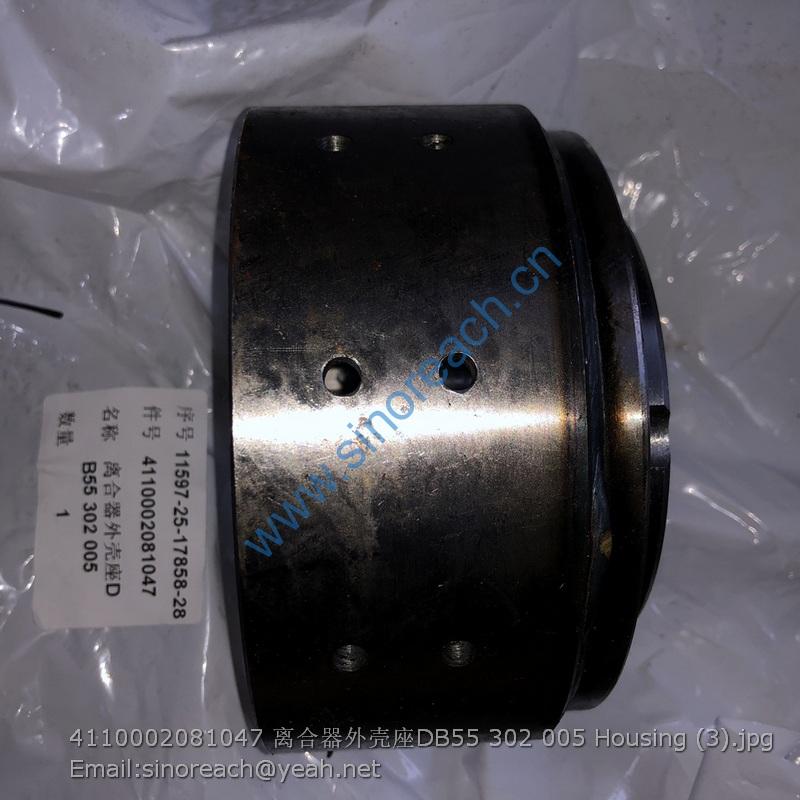

4110002081047 Housing DB55 302 005 FOR SDLG loader parts

1 4013000220 螺母GB810－M20*1.5EpZn－8 Nut Y 1
2 4015000285 垫圈GB858－20 Washer Y 1
3 4110000038171 垫圈 ZL20-032011 20 Washer Y 1
4 4030000178 O形圈GB3452.1-30.0*3.55G O-ring Y 1
5 4110002081040 法兰DB55 302 002 Bearing flange Y 1
6 4110002081041 防尘罩DB55 302 003 Dust cover Y 1
7 4110002081042 输入轴DB55 302 001 Input shaft Y 1
8 4110000499294 唇形密封圈GB9877.1-88 FB45*62*8 Sealing ring Y 1
9 4011000744 P螺栓GB21-M10*30-8.8 Bolt gb21-m10*30-8.8 Y 9
10 4015000025 垫圈GB93-10-65Mn Spring washer Y 9
11 4110000038038 输入轴端盖ZL20-030008 Cover plate Y 1
12 4110000038048 纸垫ZL20-030002 Paper pillow Y 1
13 4110002081043 调整垫片ZL20-032016 Shim Y 1
14 4021000167 P轴承GB297-32207 Bearing Y 2
15 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 8
16 4110002081044 止动片DB55 302 016 Retaining plate Y 4
17 4110002081045 圆柱销8m6×22 GB/T119.1-2000 Pin Y 2
18 4110002081046 齿轮DB55 302 004 Gear Y 1
19 4110002081047 离合器外壳座DB55 302 005 Housing Y 1
20 4110002081048 离合器外壳DB55 302 007 Closure Y 1
21 4110000038191 阀座 ZL20-032109 Seat Y 1
22 4090000126 钢球GB308-5-GCr15 Ball Y 1
23 4030001255 P-O形圈GB3452.1-45*2.65G O-ring Y 1
24 4110002081049 封油圈DB55 302 009 Sealing ring Y 1
25 4110002081050 活塞DB55 302 008 Piston Y 1
26 4110002081051 内摩擦片DB55 302 024 Friction disc Y 9
27 4110002081052 外摩擦片DB55 302 023 Friction disc Y 10
28 4110000076190 承压板4642308185 Anchor plate Y 1
29 4110002081054 弹性挡圈0730 513 415 Retaining ring N 1
30 4110002081055 弹簧DB55 302 012 Spring Y 1

1 4120001821201 活塞杆 Piston rod Y 1
2 4120001821202 密封件包 Sealing ring kit Y 1
3 4120001821202 密封件包 Sealing ring kit Y 1
4 4120001821202 密封件包 Sealing ring kit Y 1
5 4120001821202 密封件包 Sealing ring kit Y 2
6 4120001821202 密封件包 Sealing ring kit Y 1
7 4120001821202 密封件包 Sealing ring kit Y 1
8 4120001821202 密封件包 Sealing ring kit Y 1
9 4120001821203 缸盖 Cover Y 1
10 4120001821204 缸体 Cylinder Y 1
11 4120001821205 活塞 Piston Y 1
12 4120001821202 密封件包 Sealing ring kit Y 1
13 4120001821202 密封件包 Sealing ring kit Y 1
14 4120001821202 密封件包 Sealing ring kit Y 1
15 4120001821202 密封件包 Sealing ring kit Y 1
16 4120003179016 螺钉GB77-M8×10 Screw Y 1
17 4090000126 钢球GB308-5-GCr15 Ball Y 1
18 4021000248 关节轴承GB9163-GE35ES Spherical plain bearing Y 1
19 4015000272 P挡圈GB893.1-55-65Mn Retaining ring Y 1
20 4120001821206 衬套 Bushing Y 1

1 29220001251 制动器管接头 Nipple Y 4
2 4030000552 O形圈 O-ring Y 8
3 29220001261 制动器接头块 Block Y 4
4 29220021481 前桥右油管 Brake pipe Y 1
5 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 10
6 29220000131 三通接头 Three-way nipple Y 2
7 4041002549 软管LGB153-202050 Hose assembly Y 1
8 29220021501 前桥左油管 Brake pipe Y 1
9 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 10
10 29220008981 压板 Plate Y 5
11 29220021531 前桥过渡钢管 Brake pipe Y 1
12 29220025511 制动油管 Hose assembly Y 1
13 29220016531 弯接头总成 Nipple Y 2
14 4120003757 制动灯开关YK209KLA Pressure switch Y 2
15 4120003758 气制动阀LY60E Brake valve Y 2
16 29220000811 垫圈 Washer Y 12
17 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 1
18 29220008451 直接头 Nipple Y 1
19 29220017601 直接头 Nipple Y 6
20 4041002788 软管LGB173-106035 Hose assembly Y 1
21 4041002025 软管LGB145-202069 Hose assembly Y 1
22 29220019291 过渡接头 Nipple Y 1
23 4041002827 软管LGB173-006080 Hose assembly Y 1
24 29220023331 加力泵固定板 Bracket Y 1
25 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 8
26 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8
27 29220022651 制动软管 Hose assembly Y 1
28 29220001231 加力泵管接头 Bolt Y 2
29 4030000551 O形圈 O-ring Y 4
30 29220001241 加力泵接头块 Nipple Y 2

31 29220020892 后桥左油管 Brake pipe Y 1
32 29220020912 后桥右油管 Brake pipe Y 1
33 4041001027 软管LGB153-202046 Hose assembly Y 1
34 29220021551 后桥过渡钢管 Brake pipe Y 1
35 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 4
36 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 16
37 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8
38 4120001985 空气加力泵SL20 Air cylinder N 2
39 29010000041 螺栓 Screw Y 2
40 29220021561 三通管 Three-way nipple Y 1
41 29220025061 制动高温气管-950 Hose assembly Y 1
42 29220023351 储气罐固定支架 Bracket Y 1
43 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4
44 29220017801 储气罐 Air tank N 1
45 4011000281 螺栓GB16674-M6*40EpZn-8.8 Bolt Y 2
46 4120002025 梭阀VS22 Shuttle valve Y 1
47 29220025041 固定板 Plate Y 1
48 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 2
49 4041002786 软管LGB173-106037 Hose assembly Y 1
50 4041002828 软管LGB173-006060 Hose assembly Y 1
51 29220012381 三通接头 Three-way nipple Y 1
