Description

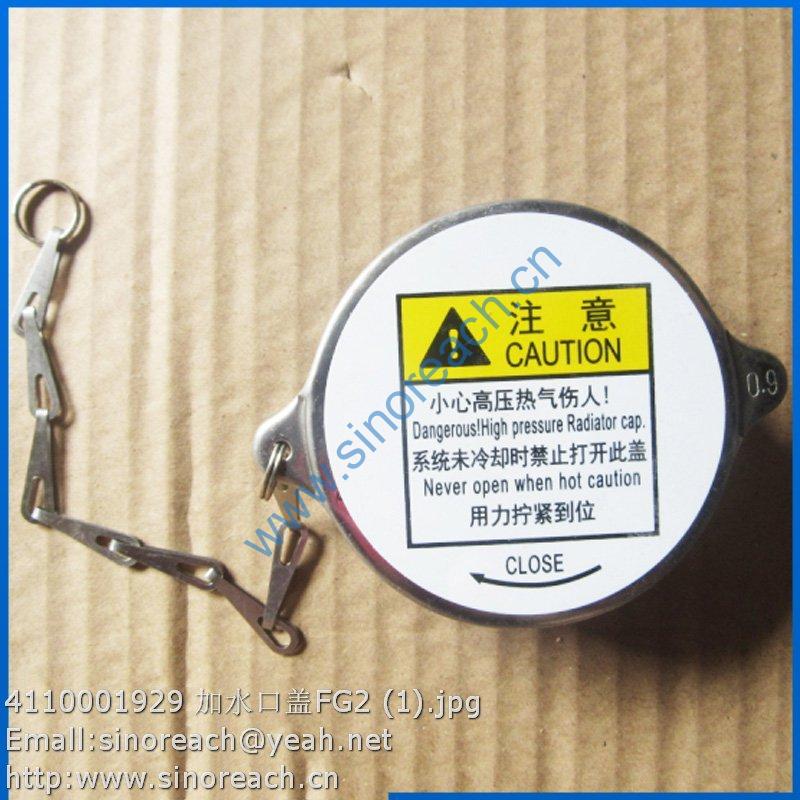

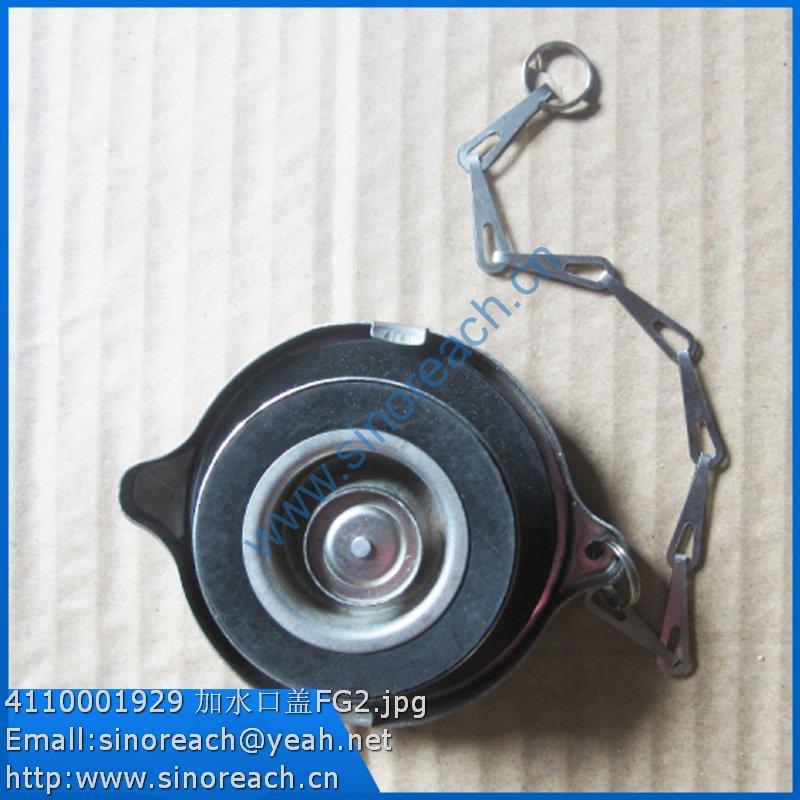

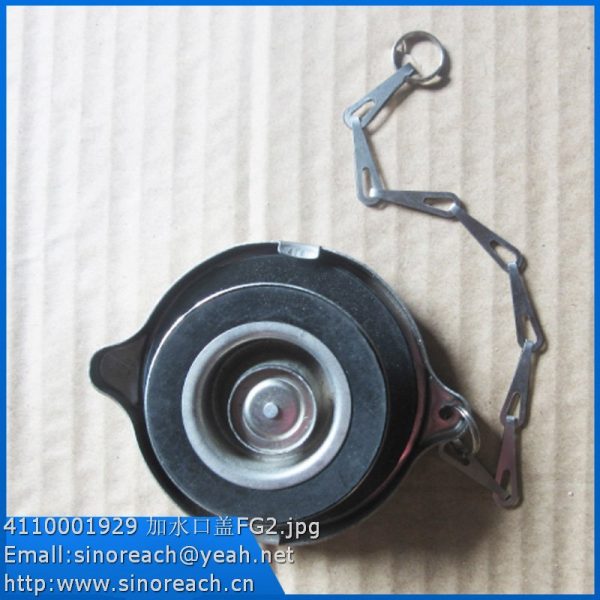

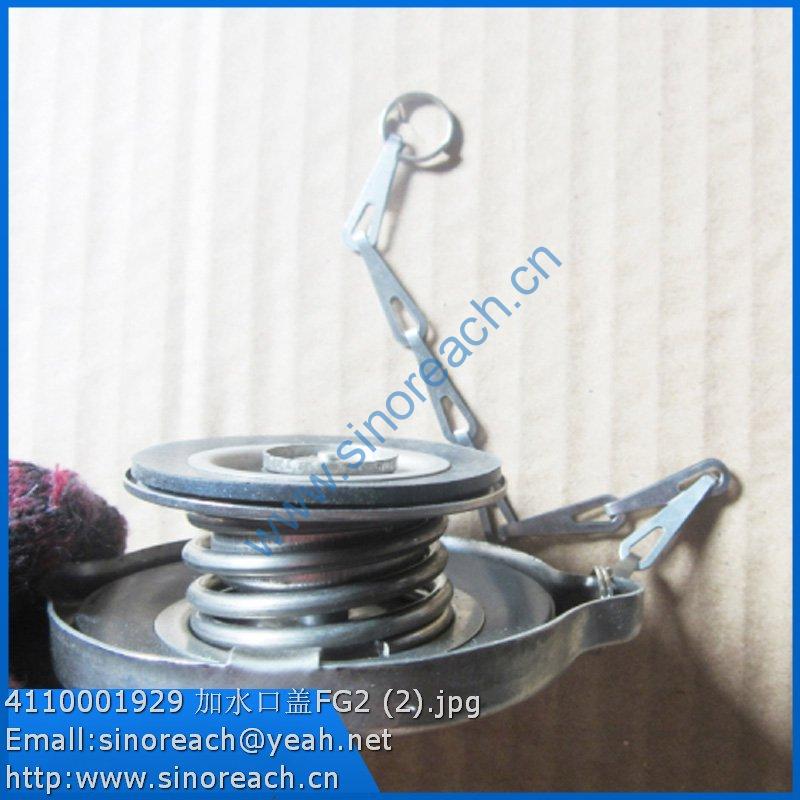

4110001929 Water tank cover FG2

4041000011 FLANGE LGB117-314650
4030000029 O-RING GB3452.1-37.5*3.55G
4041000056 FLANGE LGB117-312550
4012000003 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8
4013000011 NUT GB6170-M12 EpZn-8
4015000168 WASHER GB97.1-12EpZn-300HV
29190005041 INTANKE TUBE
4017000018 CLAMP JB8870-d70
I2-2920000501 STEERING UNIT ASSEMBLY
29200007771 FEEDBACK OIL PIPE OF PRIORITY VALVE
4011000475 BOLT GB16674-M10*30EpZn-8.8
4120000018 STEERING WHEEL
4120000019 STEERIGN COLUMN FZ2-770-HEaF
4041000564 JOINT LGB120-02620
4041000783 O-RING LGB168-11724
29200004031 OUTLET TUBE FROM STEERING DEVICE(B)
4030000501 O-RINGGB3452.1-15.0*1.80G
29200008561 OUTLET TUBE FROM STEERING DEVICE(A)
29200005031 OIL INLET PIPE OF STEERING GEAR
4041001267 PIPE LGB164-010140
29200005071 ADJUSTING SHIM
29200005041 OIL RETURN PIPE OF PRIORITY VALVE
4011000402 BOLT JB999-M33*2*50-35
4030000063 WASHER JB1002-33-T2
4011000053 BOLT GB5782-M10*90EpZn-8.8
4015000162 WASHER GB97.1-10EpZn-300HV
4120000129 PRIORITY VALVE YXL-F250F
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
4120000987 STEERING GEAR BZZ6-630
4041000131 JOINT LGB120-01412
4041000784 O-RING LGB168-10924
29200005051 INLET TUBE OFPRIORITY VALVE
4011000475 BOLT GB16674-M10*30EpZn-8.8
4030000029 O-RING GB3452.1-37.5*3.55G
4041000056 FLANGE LGB117-312550
4011000319 BOLT JB999-M12*1.5*28EpZn-35
4030000056 WASHER JB1002-12-T2
I3-2921000501 STEERING CYLINDER ASSEMBLY
29210004081 TUBE
4030000275 O-RING GB3452.1-22.4*3.55G
4011000481 BOLT GB16674-M8*30Ep.Zn-8.8
4011000277 BOLT GB16674-M8*40EpZn-8.8
29210004091 TUBE
4041000563 PIPE LGB128006078
4120001004 STEERING CYLINDER HSGL-80*45*327-594
29210007661 OIL INLET PIPE OF STEERING CYLINDER
29210005021 CLAMPING PLATE
29210004071 RUBBER BAR
4011000503 BOLT GB5782-M10*80EpZn-8.8
4015000197 WASHER GB96.1-10EpZn-300HV
4013000007 NUT GB6170-M10EpZn-8
I4-4120001004 STEERING CYLINDER（371401）
4120001004009 SPHERICAL PLAIN BEARING
4120001004010 HOLDING BLOCK
4120001004007 SEALING MEMBER AGGREGATE
4120001004016 CYLINDER COVER
4120001004007 SEALING MEMBER AGGREGATE
4120001004007 SEALING MEMBER AGGREGATE
4120001004007 SEALING MEMBER AGGREGATE
4120001004007 SEALING MEMBER AGGREGATE
4120001004007 SEALING MEMBER AGGREGATE
4120001004019 PISTON ROD
4120001004007 SEALING MEMBER AGGREGATE
4120001004007 SEALING MEMBER AGGREGATE
4120001004012 PISTON
4120001004007 SEALING MEMBER AGGREGATE
4120001004008 CYLINDER BODY
4015000261 CHECK RING GB893.1-62-65Mn
I5-4120001004 STEERING CYLINDER
4120001004113 PISTON ROD HSGL-80/45*327-1
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004110 CYLINDER COVER HSGL-80/45*327-2
4120001004101 SEALING MEMBER AGGREGATE
4120001004104 CYLINDER BODY HSGL-80/45*327-3
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004101 SEALING MEMBER AGGREGATE
4120001004109 PISTON HSGL-80/45*327-4
4014000237 SCREW GB70.1-M6*16-8.8
4021000199 SPHERICAL PLAIN BEARING
4015000261 CHECK RING GB893.1-62-65Mn
J1-2922000520 SERVICE BRAKE ASSEMBLY
29220001251 CONNECTOR
4030000552 O-RING
29220001261 ARRESTER CONNECTOR
29220004131 TUBE OF FRONT AXLE(LEFT)
29220000131 CONNECTOR
4011000455 BOLT GB16674-M8*25EpZn-8.8
4030000311 PLUG JB1000-M10*1EpZn-35
4041001231 PIPE LGB153-202226
4120001795 BRAKE CONTROL VALVE LY60F
4130000521 SWITCH OF BRAKE LIGHT
29220001201 JOINT
29220001191 CONNECTOR
29220000531 AIR RESERVOIR
