Description

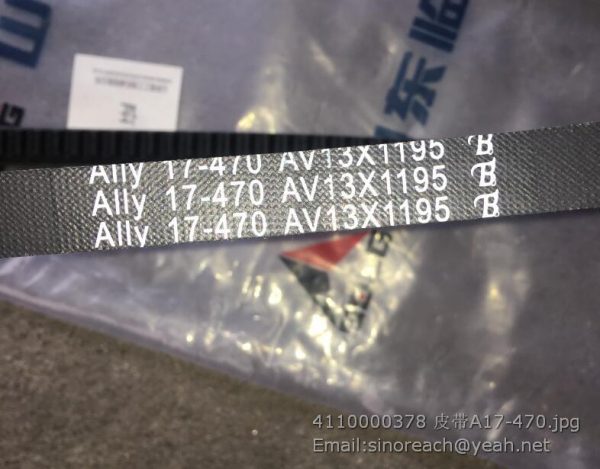

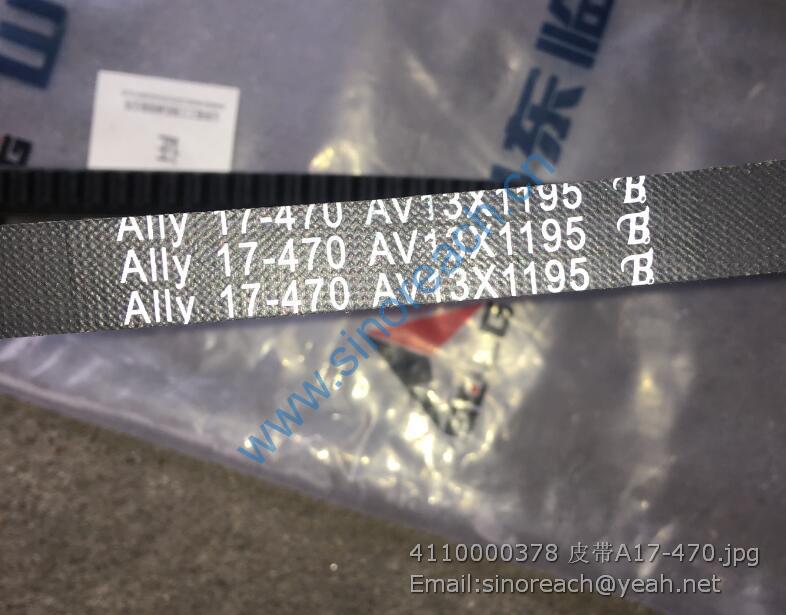

4110000378 BELT A17-470
19 4130000419 ZG30.06XG储液罐 RECEIVER Y 1
20 4130000417 ZG30.05X2冷凝器 CONDENSATOR Y 1
21 4130000633 蒸发器总成 EVAPORATOR ASSEMBLY Y 1
22 4120001514 管路：冷凝器-储液罐2100 PIPE CONDENSER-RECEIVER Y 1
23 4120001515 管路：储液罐-蒸发器2100 PIPE RECEIVER-EVAPORATOR Y 1
24 4120001812 管路：蒸发器-压缩机2600 PIPE EVAPORATOR-COMPRESSOR Y 1
25 4120001809 管路：压缩机-冷凝器2400 PIPE COMPRESSOR-CONDENSATOR Y 1
26 4110000310 皮带AV13*1170 BELT AV13*1170 Y 1
27 4110000379 皮带AV13X1250 BELT AV13X1250 Y 1
28 4110000378 皮带A17-470 BELT A17-470 Y 1
1 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 4
2 4190001114 空调LG936D3 AIR CONDITIONER LG936D3 Y 1
3 4011000154 螺栓GB16674-M6*20EpZn-8.8 BOLT GB16674-M6*20EpZn-8.8 N 3
4 4011000533 螺栓GB5782-M18*50EpZn-8.8 BOLT GB5782-M18*50EpZn-8.8 N 2
5 4015000182 垫圈GB97.1-18EpZn-300HV WASHER GB97.1-18EpZn-300HV N 2
6 4015000029 垫圈GB93-18-65Mn WASHER GB93-18-65Mn N 2
7 29350008112 托板 SUPPORT PLATE Y 2
8 29350008951 压缩机支架 COMPRESSOR SUPPORT Y 1
9 4011000085 螺栓GB5783-M10*35EpZn-8.8 BOLT GB5783-M10*35EpZn-8.8 N 8
10 4013000007 螺母GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 N 12
11 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 8
12 4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 8
13 29350007801 前支板 FRONT SUPPORTING PLATE Y 1
14 4011000474 螺栓GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8 N 9
15 29350007791 后支板 REAR SUPPORTING PLATE Y 1
16 29350007881 储液罐支架 DRYER BEARING Y 1
17 4013000028 螺母GB6170-M6EpZn-8 NUT GB6170-M6EpZn-8 N 2
18 4130000420 SE5H14压缩机 COMPRESSOR ASSEMBLY Y 1
1 29370009371 启动马达线 LINE FROM SWITCH TO MOTOR Y 1
2 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 9
3 29370009341 蓄电池接地线 EARTH WIRE Y 2
4 4130000427 电源开关K01K18-A POWER SWITCH K01K18-A Y 1
5 29370009361 蓄电池串联线 STORAGE BATTERY WIRE Y 1
6 4130000057 蓄电池6-QW-120B BATTERY 6-QW-120B Y 2
7 4130000694 接触器MZJ-100A/006 CONTACTOR MZJ-100A/006 Y 1
8 4014000061 螺钉GB818-M4*10EpZn-4.8 SCREW GB818-M4*10EpZn-4.8 N 2
9 4190000020 扎丝LG13-ZS4*250 CLIP LG13-ZS4*250 Y 50
10 26370001911 管夹 CLAMP Y 5
11 4130000009 双音盆形喇叭DL125-24V ELECTRIC HORN DL125-24V Y 1
12 4011000152 螺栓GB16674-M6*10EpZn-8.8 BOLT GB16674-M6*10EpZn-8.8 N 2
13 4130000542 前左组合灯LFLDH4-24V LEFT FRONT HEAD LAMP LFLDH4-24V Y 1
14 4130000543 前右组合灯LFRDH4-24V RIGHT FRONT HEAD LAMP LFRDH4-24V Y 1
15 4130000329 隔膜式压力开关0166-40404-1-016 PRESS SWITCH 0166-40404-1-016 Y 1
16 4130000326 接近开关WEK200-IV ADJACENT SWITCH Y 1
17 4130000278 隔膜式压力开关310-LGK DISSEPIMENT PRESSURE SWITCH310-LGK Y 1
18 29370015421 前车架线束 BODY WIRING HARNESS OF FRONT FRAME Y 1
19 29370015431 后车架线束 REAR BODY WIRING HARNESS Y 1
20 4130000213 后尾灯LRTD－24V REAR LAMP LRTD－24V Y 2
21 4130000121 倒车蜂鸣器KSHM-12F4 ANNUNCIATOR KSHM-12F4 Y 1
22 4130000615 前照灯QZD-1 FORWARD LIGHTING QZD-1 Y 4
23 29370015441 仪表台线束 PANEL HARNESS Y 1
24 4014000026 螺钉GB818-M6*16EpZn-4.8 SCREW GB818-M6*16EpZn-4.8 N 4
25 4015000207 垫圈GB97.1-6EpZn-300HV WASHER GB97.1-6EpZn-300HV N 4
26 4130000545 后大灯LRDH4-24V REAR LARGE LAMP LRDH4-24V Y 2
27 29370009331 后罩线束 COVER HARNESS Y 1
28 29370015471 仪表盘总成Y936D INSTRUMENT PANEL ASSEMBLY Y936D Y 1
29 29370012771 仪表台总成 PANEL ASSEMBLY N 1
30 4014000048 螺钉GB818-M5*12EpZn-4.8 SCREW GB818-M5*12EpZn-4.8 N 3
31 4015000110 垫圈GB97.1-5EpZn-300HV WASHER GB97.1-5EpZn-300HV N 3
32 4130000869 中间继电器024-1Z6GD2 AUXILIARY RELAY 024-1Z6GD2 Y 3
33 4130000496 盖板JK931-01GB CAP JK931-01GB Y 13
34 4130000498 侧边单框架JK931-01CKJ SIDE FRAME JK931-01CKJ Y 6
35 4130000497 中间单框架JK931-01ZKJ MIDDLE FRAME JK931-01ZKJ Y 7
36 4130000060 手制动开关LA39-01Z HAND BRAKE SWITCH LA39-01Z Y 1
