Description

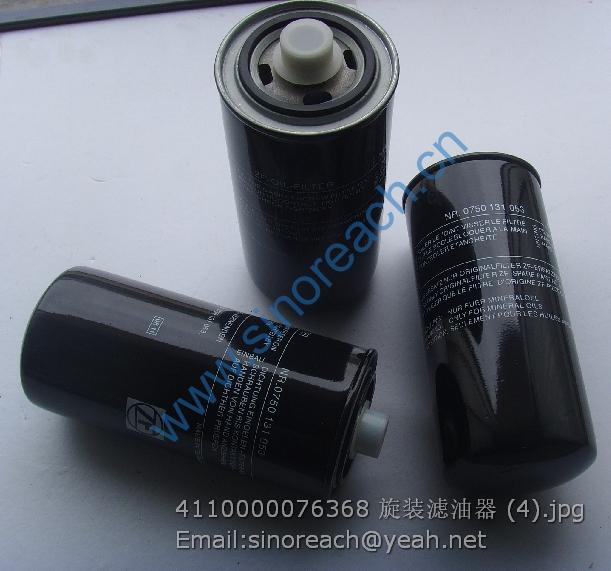

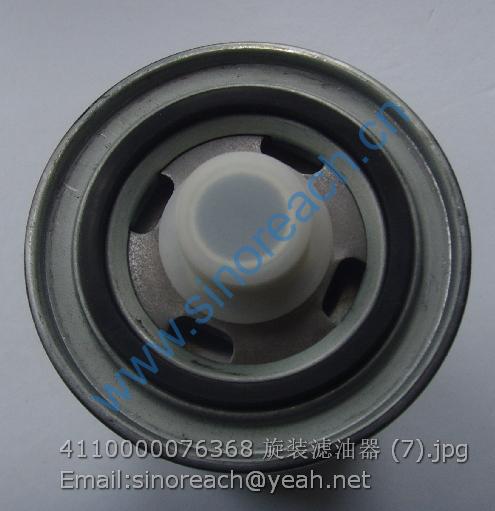

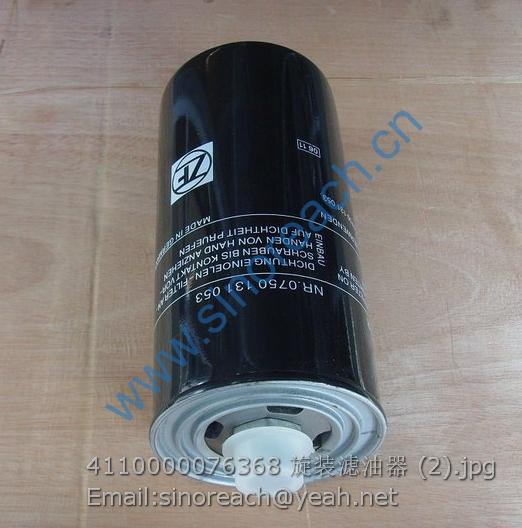

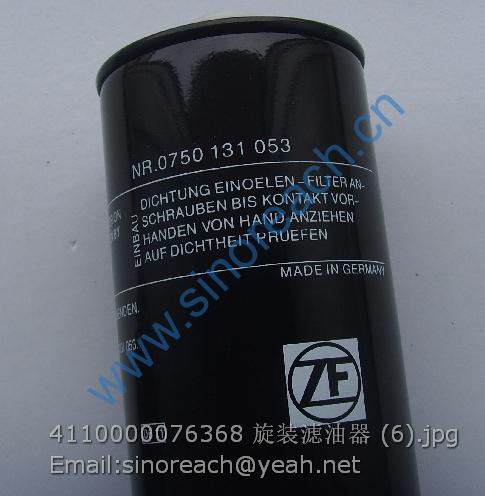

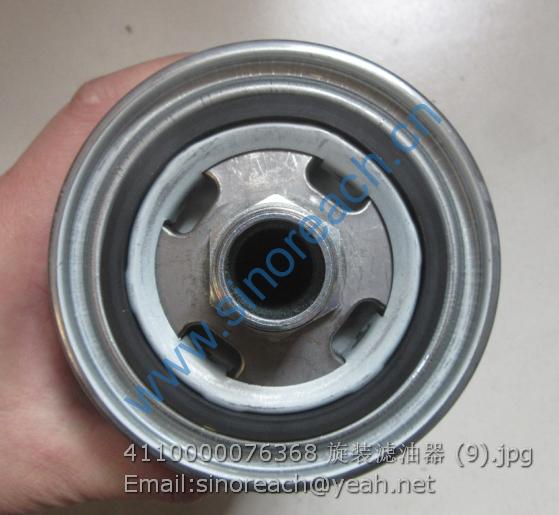

4110000076368 Oil filter 0750 131 053H W030600003 860116177 860116239 860117214 60C0087 7200000559 0750131053H SP100275 3901000014

1 4110000076392 取力器轴 YD13 354 017 Shaft Y 1
2 4110000367018 球轴承 6209 N/C3 0750 116 259 Bearing Y 1
3 4110000076365 轴用弹性挡圈 0630 503 011 HSP85 Retaining ring Y 2
4 4110000076211 轴用挡圈 0630 501 033 45*1.75 DIN471 Retaining ring Y 1
5 4110000076382 纸垫 YD13 354 005 Gasket N 1
6 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 12
7 4110000076383 取力输出轮毂 YD13 354 016 Housing Y 1
8 4110000076393 传动齿轮 YD13 354 002 Gear Y 1
9 4110000367024 轴用弹性挡圈630513068 Retaining ring Y 1
10 4110000367135 滚针轴承HK4516 45*52*16 0635 303 104 Bearing Y 1
11 4110000367025 孔用弹性挡圈630513016 Retaining ring Y 2

1 4110000076394 取力器轴 YD13 355 019 Shaft Y 1
2 4110000076393 传动齿轮 YD13 354 002 Gear Y 1
3 4021000017 滚动轴承GB276-6209 Ball bearing Y 1
4 4021000017 滚动轴承GB276-6209 Ball bearing Y 1
5 4110000076395 泵法兰 YD13 355 008 Flange Y 1
6 4110000076359 纸垫 YD13 355 004 Gasket N 1
7 4012000042 螺柱GB898-M8*18-8.8 Stud Y 1
8 4110000076396 吸油管 YD13 221 006 Tube Y 1
9 4110000367130 油管组件4642 211 001 Pipe Y 1
10 4110000076320 管接头 YD13 321 002 M14*1.5/M18*1.5 Nipple Y 1
11 4110000076370 紫铜垫圈 0634 801 038 14 Washer Y 4
12 4013000033 螺母GB6170-M8EpZn-8 Nut Y 1
13 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 1

1 29070016071 车轮总成 Wheel assembly N 2
2 29070025221 AL20W前驱动桥总成 Front axle Y 1
3 4011000395 螺栓GB5785-M24*2*110EpZn-8.8 Screw N 8
4 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 8
5 4110000003 轮胎GB2980-17.5-25 Tire N 2
6 4190000413 轮辋 Rim Y 2

1 29070025231 轮边减速器总成 Hub reduction N 2
2 4015000120 垫圈JB1002-16-T2 Washer Y 2
3 29070025241 磨损指示器 Wear indicator N 2
4 29070025252 桥壳 Axle casing Y 1
5 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
6 29070019791 前桥标牌 Name plate N 1
7 29070023071 透气嘴 Breather cap Y 1
8 4013000425 螺母GB6173-M10*1flZnyc-05-480 Nut Y 1
9 4016000124 销GB119.2-10u8*30 Pin Y 2
10 29070025261 半轴 Shaft half Y 2
11 4011001659 螺栓GB5782-M16*185-10.9 Bolt Y 40
12 29070009511 垫圈 Washer Y 40
13 4120001740 放气嘴 Nipple Y 2
14 29070018391 放气嘴座 Seat Y 2
15 4041000767 O形圈LGB168-11124 O-ring Y 2
16 29070022641 轮辋螺母M18 Nut Y 20
17 4041000779 O形圈LGB168-12331 O-ring Y 6
18 29050013351 放油螺塞 Plug Y 6
19 29070019762 主传动总成 Final drive Y 1
20 29070015981 垫圈 Washer Y 14
21 4011001430 螺栓GB5786-M12*1.25*35flZnyc-10.9- Bolt Y 141 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 3050900007 垫圈 Washer Y 1
3 3050900172 垫片 Shim Y 1
4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1
5 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 1
6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7
7 29090007961 垫圈 Washer Y 31
8 29070019901 密封盖 Sealing cover Y 1
9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
10 29070019911 轴承套 Bearing bushing Y 1
11 4021000139 滚动轴承GB297-31312 Roller bearing Y 1
12 4021000105 滚动轴承GB297-32214 Ball bearing Y 2
13 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1
14 29070015981 垫圈 Washer Y 1
15 29070019941 调整螺母 Adjusting nut Y 2
16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
17 29050015481 垫圈10 Washer Y 2
18 3050900024 锁紧片 Lock washer Y 2
19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 16
20 29070019961 隔套 Sleeve Y 1
21 29070019971 调整垫片 Spacer sleeve Y 1
22 29070019981 调整垫片 Spacer sleeve Y 1
23 29070019991 调整垫片 Spacer sleeve Y 1
24 29070020001 调整垫片 Spacer sleeve Y 1
25 29070020011 调整垫片 Spacer sleeve Y 1
26 29070020021 调整垫片 Spacer sleeve Y 1
27 29070020031 调整垫片 Spacer sleeve Y 1
28 29070020041 调整垫片 Spacer sleeve Y 1
29 3050900011 调整垫片 Shim Y 5
30 29070010611 调整垫片 Shim Y 4
