Description

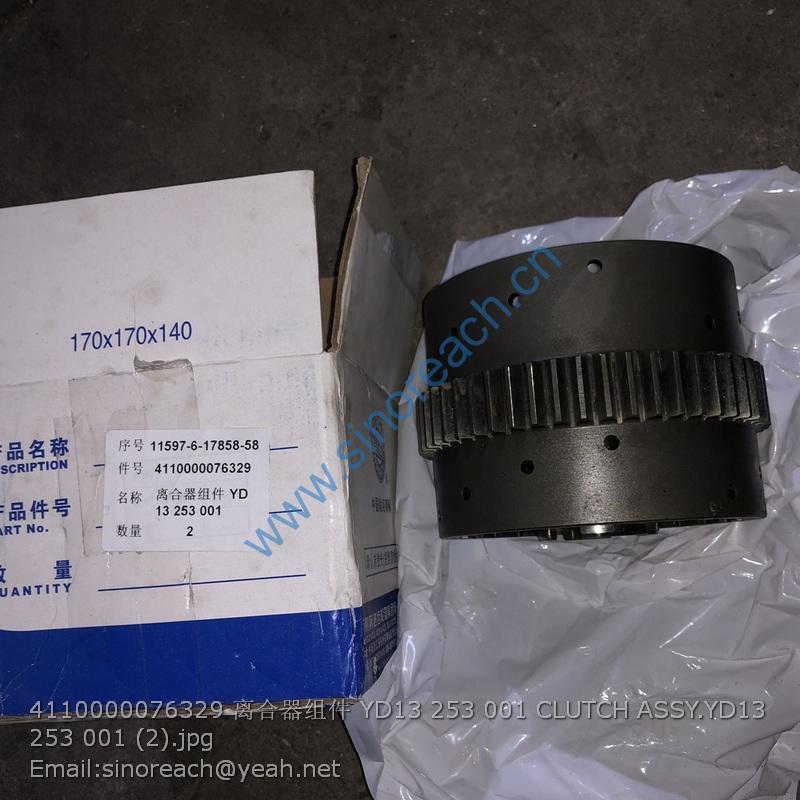

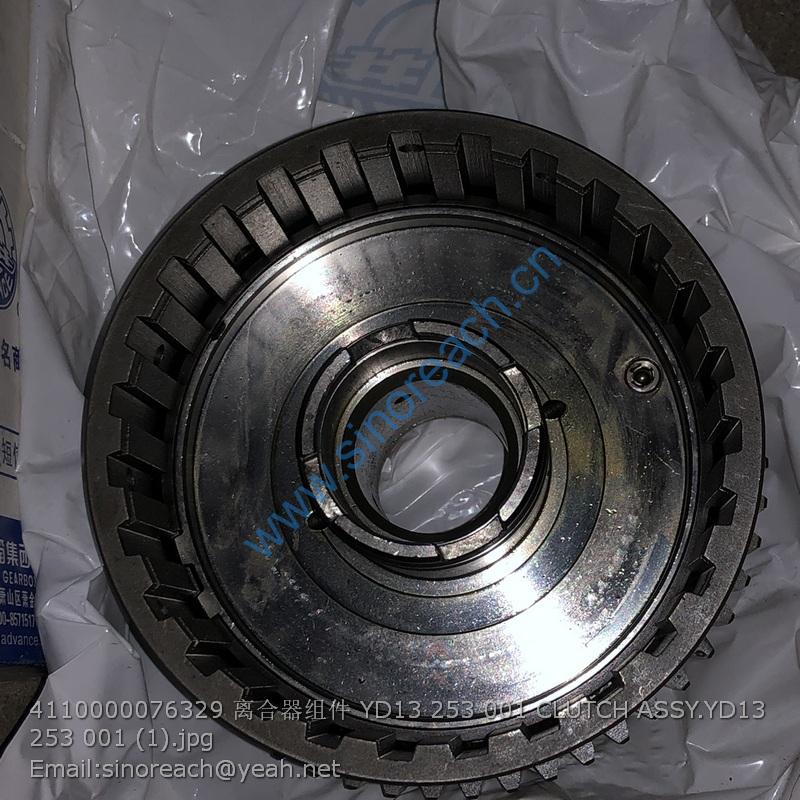

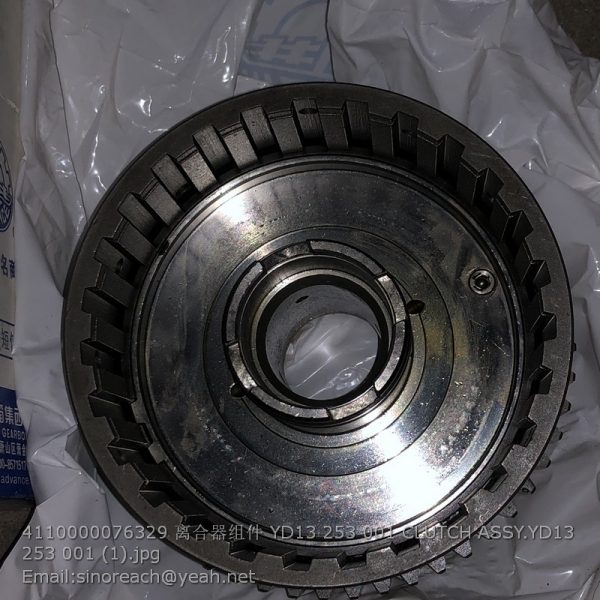

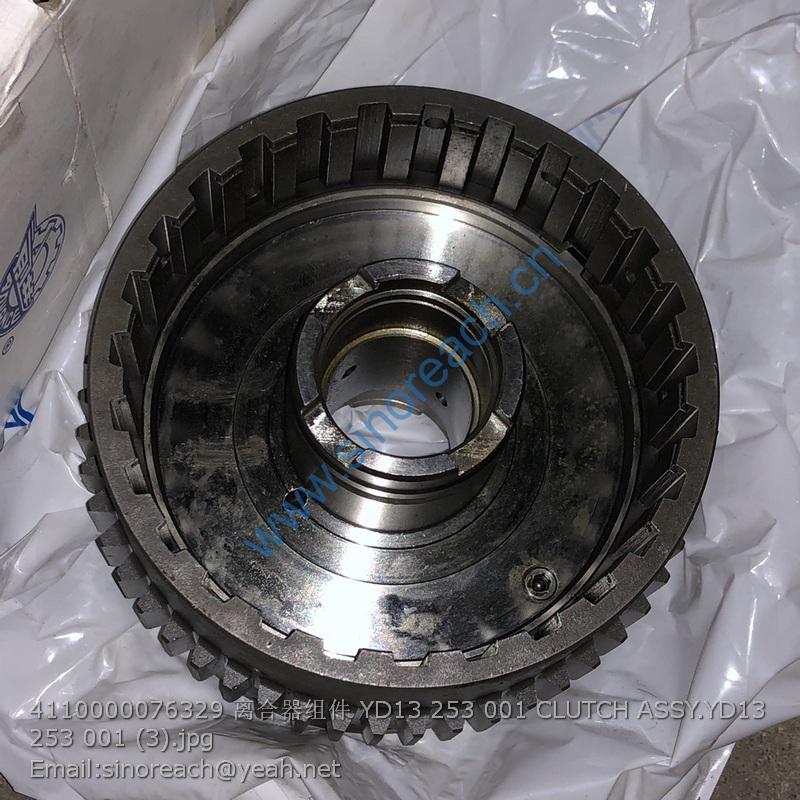

4110000076329 CLUTCH KIT YD13 253 001 4110000145077 GEAR 4110000145079 W43001121 W43001118 YD13 LG938 WHEEL LOADER TRANSMISSION PARTS

1 4110000076362 轴 YD13 353 012 (153) Shaft Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-ring Y 1
3 4110000076258 搭扣密封环0734401106 Sealing ring Y 3
4 4012000042 螺柱GB898-M8*18-8.8 Stud Y 3
5 4013000033 螺母GB6170-M8EpZn-8 Nut Y 3
6 4110000076270 调整垫片0769120468 Shim Y 1
7 4110000076289 齿轮 YD13 353 002 (K4) Z=32 Gear Y 1
8 4110000076246 承磨垫 0730 150 774 DUP Washer Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 Bearing Y 1
10 4110000076190 承压板4642308185 Anchor plate Y 2
11 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
12 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
13 4110000076352 异形密封环 0750 112 141 Sealing ring Y 2
14 4110000076199 止动片4644351094 Extension bar Y 1
15 4110000076191 止动片4642308555 Extension bar Y 1
16 4110000076353 异形密封环 0750 112 140 Sealing ring Y 2
17 4110000076251 压力弹簧0732041183 Tension spring Y 2
18 4110000076189 导向环4642308083 Retaining ring Y 4
19 4110000076298 挡圈 0630 531 346 AV55 Retaining ring Y 2
20 4110000076302 导向环 4642 308 084 Retaining ring Y 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 Needle bearing Y 1
22 4110000076294 弹性挡圈 0730 513 610 Retaining ring Y 1
23 4110000076062 滚针轴承O635303204 Needle bearing Y 1
24 4110000076295 弹性挡圈 0730 513 611 Retaining ring Y 1
25 4110000076296 弹性挡圈0769 124 115 Retaining ring Y 2
26 4110000076247 承磨垫 0730 150 779 DUP Washer Y 1
27 4110000076290 齿轮 YD13 353 011 (K3) Z=55 Gear Y 1
28 4110000076322 滚子组 0750 119 048 Roller Y 1
29 4110000076329 离合器组件 YD13 253 001 Clutch kit Y 1
30 4110000076067 外摩擦片 0501 309 329 S=2,0 Friction disc Y 16

31 4110000076069 内摩擦片 4642 308 332 S=2.0 Friction disc Y 8
32 4110000076068 内摩擦片 4642 308 330 S=1.5 Friction disc Y 2
33 4110000076107 内摩擦片 4642 308 331 S=2.5 Friction disc Y 2
34 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 Friction disc N 1
35 4110000076407 离合器K3/K4 YD13 153 006 Clutch N 1

1 4110000076347 涡轮轴 YD13 302 002 Turbine shaft Y 1
2 4021000021 滚动轴承GB276-6308 Ball bearing Y 1
3 4110000076397 调整垫片 4607 302 010 Shim Y 1
4 4110000076210 轴用挡圈0630 501 031 40*1.75 Retaining ring Y 1
5 4110000076342 输入齿轮YD13 302 004 Z=50 Gear Y 1
6 4021000182 轴承GB283-NJ209E Roller bearing Y 1
7 4110000076256 搭扣密封环0734317252 Sealing ring Y 1
8 4110000076335 配油法兰YD13 302 001 Flange Y 1
9 4110000367051 WG180箱纸垫 Gasket Y 1
10 4110000076025 泵轮轴承座4642 301 136 Seat Y 1
11 4110000076357 纸垫 YD13 302 005 Gasket N 1
12 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 8
13 4110000076027 搭扣密封环0734 401 078 Sealing ring Y 1
14 4110000367070 滚针轴承HK75*83*16 0735 298 027 Needle bearing Y 1
15 4110000076367 轴用密封圈 0750 111 231 75*100*10 Sealing ring Y 1
16 4110000076317 辅助驱动轴 YD13 302 003 Drive shaft Y 1
17 4110000076030 搭扣密封环 0634 402 025 Sealing ring Y 1
18 4110000367051 WG180箱纸垫 Gasket Y 1
19 4110000076032 齿轮泵O501004171 Gear pump Y 1
20 4021000106 P滚动轴承GB276-6206 Ball bearing Y 1
21 4022000018 键GB1096-6*22-35 Flat key Y 1
22 4021000106 P滚动轴承GB276-6206 Ball bearing Y 1
23 4011000303 螺栓GB5782-M8*85EpZn-8.8 Bolt Y 4
24 4011000588 螺栓GB5782-M8*110EpZn-8.8 Screw Y 4
25 4110000076209 轴用挡圈0630 501 024 30*1.5 Retaining ring Y 1
26 4110000076282 变速箱密封垫（全套YD13箱使用）-杭齿 Gasket kit Y 1

1 4110000076312 阀体4642 306 152 Valve body N 1
2 4110000076174 锁片4620306248 Locking plate N 1
3 4110000076292 弹簧0732 040 838 Spring N 1
4 4110000076172 阀芯4620306245 Valve rod N 1
5 4110000076248 弹簧0732040837 Spring N 1
6 4110000076244 隔套0730061778 Casing N 1
7 4110000076122 垫片O769120747 Washer N 6
8 4110000076285 衬套4620 306 247 Bushing N 1
9 4110000076184 阀芯4642306094 Valve rod N 1
10 4110000076253 弹簧0732041254 Spring N 1
11 4110000076175 挡销4620306252 Pin N 1
12 4110000076216 O 形圈0634303118 O-ring Y 1
13 4110000076314 阀芯 4620 306 413 Valve rod N 1
14 4110000076255 挡销0732041390 Pin N 1
15 4110000076178 固定板4620306414 Anchor plate N 1
16 4110000076315 阀芯 4644 306 549 Valve rod N 1
17 4110000076194 固定板4644306241 Anchor plate N 1
18 4110000076176 阀芯4620306255 Valve rod N 1
19 4110000076250 弹簧0732041154 Spring N 1
20 4110000076253 弹簧0732041254 Spring N 1
21 4110000076183 阀芯4642306093 Valve rod N 1
22 4110000076175 挡销4620306252 Pin N 1
23 4110000076216 O 形圈0634303118 O-ring Y 1
24 4110000076180 锁片4642306049 Locking plate N 1
25 4110000076299 挡销 4644 306 549 Pin N 1
26 4110000076253 弹簧0732041254 Spring N 1
27 4110000076185 阀芯4642306095 Valve rod N 1
28 4110000076253 弹簧0732041254 Spring N 1
29 4110000076186 阀芯4642306096 Valve rod N 1
30 4110000076175 挡销4620306252 Pin N 1
