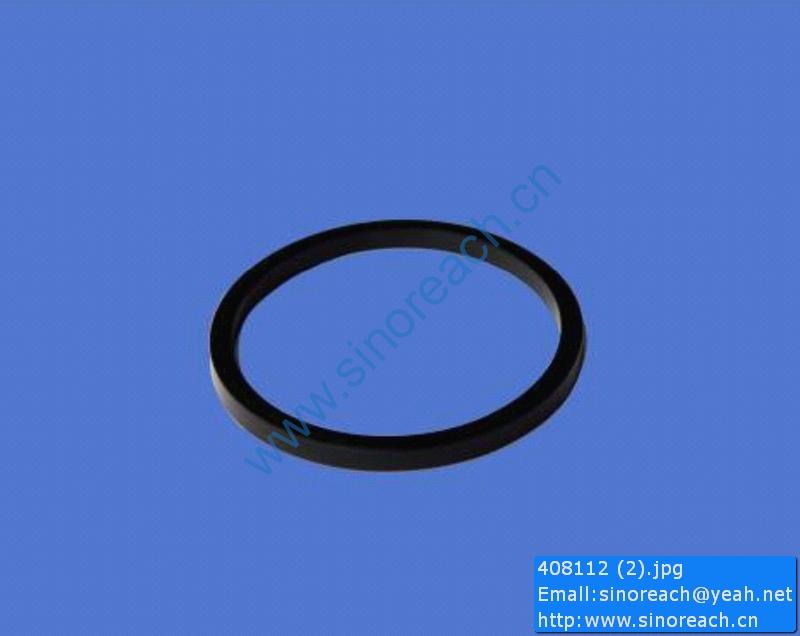

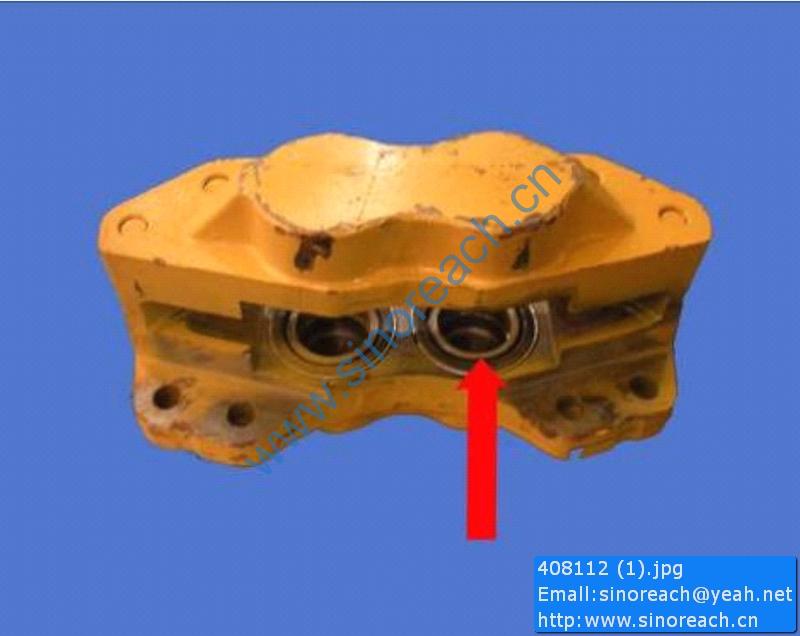

408112 Rectangular sectioned seal ring φ75×φ85×5 for CDM843 CDM853 CDM855 CDM855E spare parts

28 402203 罩轮 Housing wheel 1
29 402236 O型密封圈 O-ring 1
30 GB/T276 轴承210（90×50×20） Bearing 210(90×50×20) 1
31 402207 一级涡轮罩 First stage turbine hood 1
32 402206 一级涡轮壳 First stage turbine housing 1
33 GB/T869 沉头铆钉 Rivet 12
34 GB/T276 轴承113（100×65×18） Bearing 113(100×65×18) 1
35 GB/T893.1 孔用挡圈 50 Hole ring 50 1
36 402212-13 二级涡轮 Second stage turbine 1
37 402209 一级涡轮 First stage turbine 1
38 GB/T894.1 轴用挡圈 80 Shaft retainer 80 1
39 402217 导轮 Idler wheel 1
40 402226 压板 Press plate 1
41 GB/T5780 螺栓 M12×45 Bolt M12×45 12
42 402229 弹簧 Spring 1 LG853.02.01-007
43 402204 回油接头 Oil return connector 1 LG853.02.01-014
44 402232 垫片 Pad 2
45 402231A 弹簧 Spring 1 LG853.02.01-010
46 402230A 盖板 Cover board 1 LG853.02.01-009
47 402233 进口阀杆 Inlet valve stem 2 LG853.02.01-008
48 402228A 阀盖 Valve cap 1 LG853.02.01-006
49 GB/T5780 螺栓 M10×28 Bolt M10×28 8
50 402111A 接头 Connector 2 LG853.02.01-005
51 402106 铜垫圈 Copper washer 2 LG853.02.01-004
52 402238 花键垫片 Spline washer 1
53 402234 出口阀芯 Outlet spool 1 LG853.02.01-015

1 GB/T93 垫圈18 Washer 18 4
2 GB/T6170 螺母M18 Nut M18 2
3 403035 弧形垫圈 Camber washer 2 LG853.03-001
4 403031 橡胶垫 Rubber pad 2 LG853.03-002
5 GB/T5782 螺栓 M18×140 Bolt M18×140 2
6 LG50EX.03.01 变速箱总成 Transmission assembly 1
7 GB/T5783 螺栓 M8×16 Bolt M8×16 2
8 GB/T97.1 垫圈 8 Washer 8 2
9 GB/T93 垫圈 8 Washer 8 2
