Description

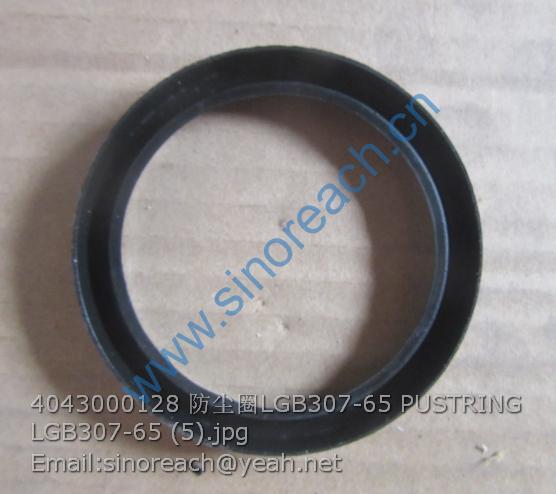

4043000128 PUSTRING LGB307-65 sdlg

1 29020015331 燃油箱总成 Fuel tank Y 1
2 4120000099 球阀MBS216-1/2″ Valve Y 2
3 4015000187 垫圈GB96.1-24EpZn-300HV Washer Y 2
4 4015000031 垫圈GB93-24-65Mn Spring washer Y 2
5 4011000117 螺栓GB5785-M24*2*150EpZn-8.8 Screw Y 1
6 4013000040 螺母GB6171-M20*2EpZn-8 Nut Y 1
7 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 1
8 4011000114 螺栓GB5785-M20*2*60EpZn-8.8 Bolt Y 1
9 4120000046 胶管JB8406-A10*560 Hose assembly Y 1
10 4017000015 喉箍JB8870-d25 Clamp Y 1
11 4130002221 油量传感器RG2266型-M87 Fuel level sensor Y 1
12 4014000048 螺钉GB818-M5*12EpZn-4.8 Screw Y 5
13 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5
14 29020006851 垫片 Spacer Y 1

1 29020015341 燃油箱体 Fuel tank N 1
2 4110000613 带锁加油滤清器QL8 Fuel filter Y 1
3 4110000807 圆形油标YB-M42*1.5 Level gauge Y 2
4 29020006561 透气钢管 Tube Y 1
5 29020006571 盖板 Cover plate Y 1
6 4030000022 O形圈GB3452.1-200*7.00G O-ring Y 1
7 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 6
8 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 6
9 29020015351 滤油器总成 Oil filter Y 1
10 3010900068 垫圈 Washer Y 1
11 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4
12 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 2
13 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
14 29020006591 护板 Protecting plate Y 1
