Description

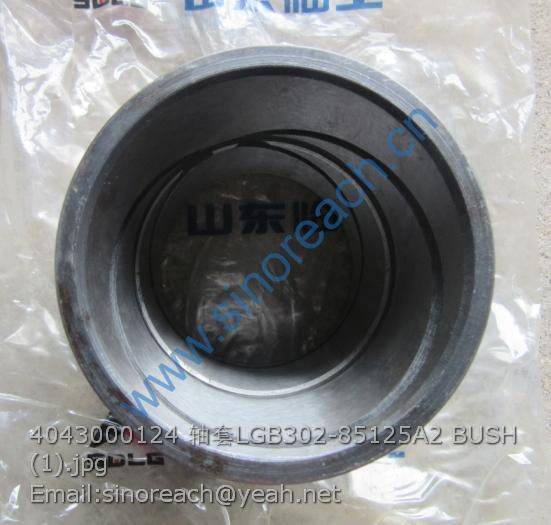

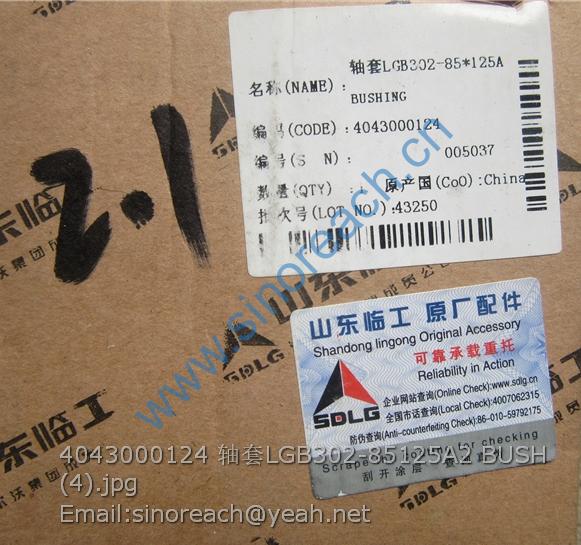

4043000124 BUSHING LGB302-85*125A2 sdlg wheel loader parts for SDLG wheel loader LG936L

1 4043000218 轴套LGB302-60*58A2 Bushing Y 4
2 4043000121 轴套LGB302-60*50A2 Bushing Y 2
3 4043000124 轴套LGB302-85*125A2 Bushing Y 1
4 4043000123 轴套LGB302-65*80A2/LGB302-65*80B2 Bushing Y 2
5 4043000112 销轴LGB301-60*95*170-40Cr Weld pin Y 5
6 4043000660 销轴LGB301-85*132*245/2-40Cr Pin Y 1
7 4043000725 销轴LGB301-60*85*150/2G-40Cr Weld pin Y 2
8 4043000127 防尘圈LGB307-60 Sealing ring Y 12
9 4043000056 防尘圈LGB307-85 Sealing ring Y 2
10 4043000035 垫片LGB303-85*130*1 Shim Y 4
11 4043000128 防尘圈LGB307-65 Sealing ring Y 4
12 4043000126 垫片LGB303-60*100*2 Shim Y 6
13 4043000125 垫片LGB303-60*100*1 Shim Y 10
14 4043000129 O形圈LGB308-98*8 O-ring Y 6
15 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8
16 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 7
17 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 7
18 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 1
19 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 1

1 29190011401 盖板 Cover plate Y 1
2 29110000043 泵用密封垫 Gasket Y 1
3 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 4
4 29190013921 转向泵总成 Steering pump assembly N 1

1 4017000013 喉箍JB8870-d90 Clamp Y 4
2 29110004031 工作泵吸油胶管 Hose Y 1
3 29190013102 转向泵吸油钢管 Pipe Y 1
4 4011000337 螺栓GB16674-M12*60EpZn-8.8 Bolt Y 4
5 4030000235 O形圈GB3452.1-43.7*3.55G O-ring Y 1
6 29190013091 转向泵至优先阀胶管 Hose assembly Y 1
7 29190013111 进油法兰 Flange Y 1
8 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
9 4011000230 螺栓GB16674-M10*65EpZn-8.8 Bolt Y 4
10 4041000041 堵塞LGB142-02208 Plug Y 1
11 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 1
12 29120007651 接头 Nipple Y 2
13 29120014931 垫圈 Washer Y 2
14 4120001058 双联泵CBGj3100/1010-XF Gear pump Y 1
15 29110000043 泵用密封垫 Gasket Y 1
16 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
17 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
18 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
19 4041002233 软管LGB128-004036 Hose assembly Y 1
20 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4
21 29190011601 法兰接头 Joint Y 1
22 4041000056 分体法兰LGB117-312550 Flange half Y 1
23 4190001832 扎丝RTGB-200ST Cable tie Y 2
24 4041002278 软管LGB125-004097 Hose assembly Y 1
25 4041000709 直接头LGB120-01616 Nipple Y 1
26 4040000019 O形圈LGB168-21324 O-ring Y 1
27 4041001023 组合接头LGB143-01608 Nipple Y 1
28 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1

1 29200010621 转向柱总成 Steering column N 1
2 29200009671 转向器出油钢管A Pipe Y 1
3 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2
4 29200009691 转向器出油钢管B Pipe Y 1
5 29200010651 转向器BZZ6-630A总成 Diverter valve N 1
6 4041001047 组合接头LGB143-01406 Nipple Y 2
7 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 2
8 4041002230 软管LGB129-003075 Hose assembly Y 1
9 4013000033 螺母GB6170-M8EpZn-8 Nut Y 1
10 4041002410 管夹LGB169-A12*10 Clamp Y 2
11 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2
12 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 1
13 4041002412 管夹LGB169-A20*10 Clamp Y 1
14 29200010641 板 Plate Y 1
15 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 2
16 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 2
17 4041002211 软管LGB128-010046 Hose assembly Y 1
18 4041000767 O形圈LGB168-11124 O-ring Y 2
19 4041000774 螺塞LGB135-01422 Plug Y 1
20 29200010631 优先阀VLH-240S-14总成 Priority valve N 1
21 4013000158 螺母GB889.1-M12EpZn-8 Lock nut Y 2
22 4011000054 螺栓GB5782-M12*120EpZn-8.8 Bolt Y 2
23 29200010471 平垫圈-12 Washer Y 2
24 4041002413 管夹LGB169-A25*10 Clamp Y 1
25 4041002540 软管LGB164-003110 Hose assembly Y 1
26 4190001832 扎丝RTGB-200ST Cable tie Y 2
27 4041002790 软管LGB165-010143 Hose assembly Y 1
28 4041000796 直接头LGB120-02628 Nipple Y 1
29 4041001264 O形圈LGB168-22331 O-ring Y 1
30 4041000133 直接头LGB120-01414 Nipple Y 1

1 4120003892 转向柱LG20-ZXZ-19 Steering column Y 1
2 4120003680 方向盘FXP-953 Steering wheel Y 1
3 29200009371 固定支架 Bracket Y 1
4 29200009081 橡胶套 Rubber sleeve Y 1
5 29200009091 管夹 Clamp Y 1
6 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 2
7 4011000136 螺栓GB16674-M10*85EpZn-8.8 Bolt Y 4
8 29200009311 钢管 Pipe Y 4
9 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 4
10 29200009321 钢管 Pipe Y 4
11 29200009361 橡胶块 Rubber mat Y 1
12 29200009561 盖板 Cover plate Y 1
13 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 1
14 4013000028 螺母GB6170-M6EpZn-8 Nut Y 6
15 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 6
16 29200009431 管夹 Clamp Y 4
17 4011000194 螺钉GB818-M6*12EpZn-4.8 Screw Y 6
18 29200009421 管夹 Clamp Y 1
19 4014000048 螺钉GB818-M5*12EpZn-4.8 Screw Y 2
20 29200009301 压板 Plate Y 1
21 29200009411 管夹 Clamp Y 2
