Description

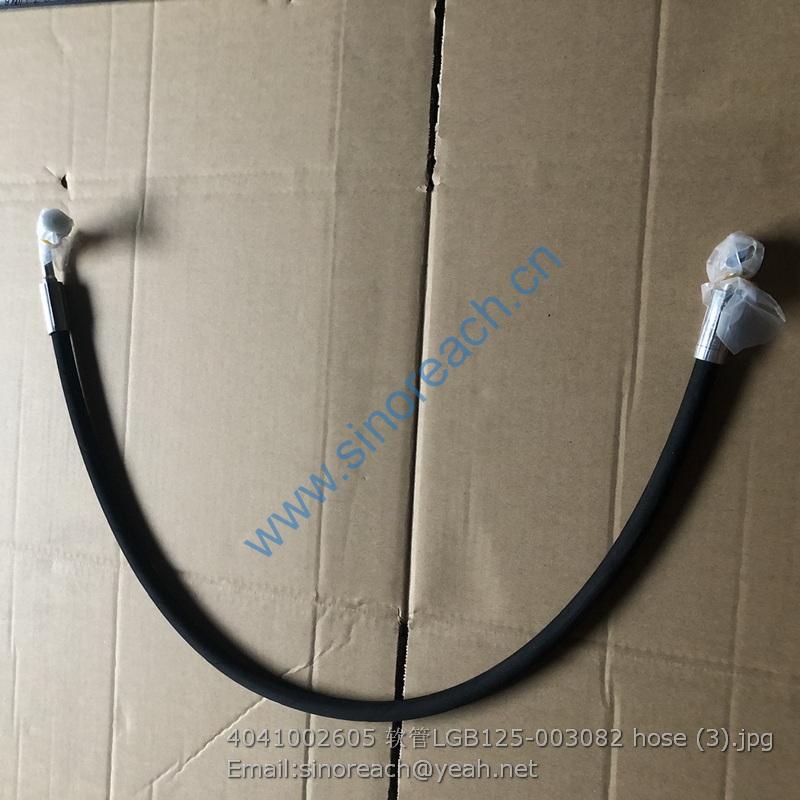

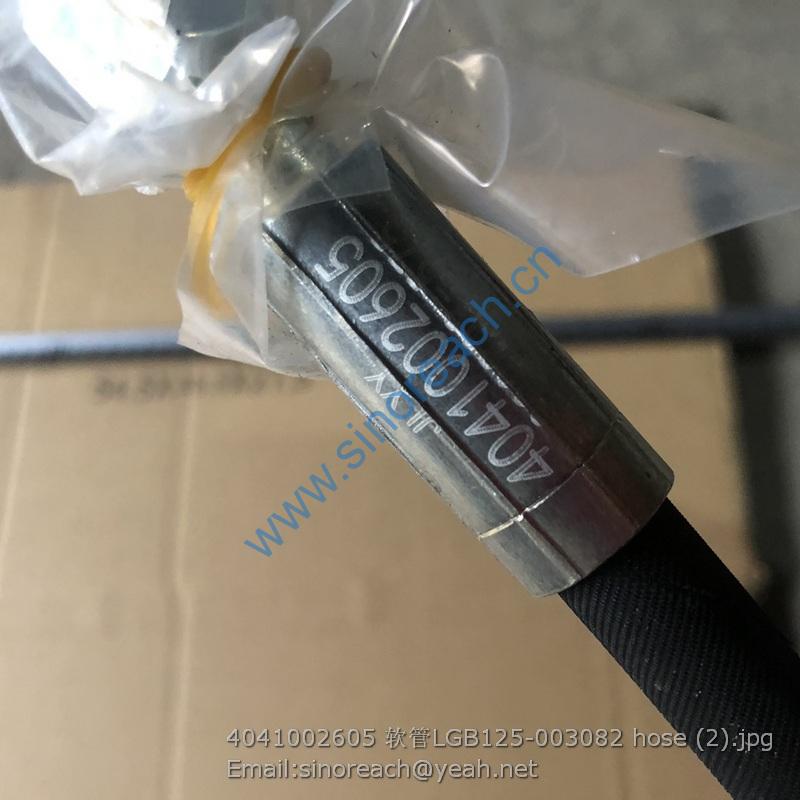

4041002605 LGB125-003082 hose
1 4120005894001 阀体CN211000001 Valve body N 1
2 4120005894002 端盖（限位）CN211000004 End cover N 1
3 4120005894003 端盖CN211000005 End cover N 1
4 4120005894004 浮动活塞3510300261 Piston N 1
5 4120005894005 弹簧3510904389 Spring N 1
6 4120005894006 端盖螺塞3510300128-D1 Plug N 1
7 4120005894007 O形密封圈020225N0552 Sealing ring Y 1
8 4120005894008 端盖（液控）CN211000003 End cover N 2
9 4120005894009 隔离套3510300032 Spacer sleeve N 2
10 4120005894010 O形密封圈020135N0674 Sealing ring Y 4
11 4120005894011 阀杆（动臂）3510300105 Valve rod N 1
12 4120005894012 阀杆（铲斗）3510300109 Valve rod N 1
13 4120005894013 弹簧座3510300263-D1 Spring seat N 2
14 4120005894014 弹簧3510500175 Spring N 2
15 4120005894015 弹簧座3510300262-D1 Spring seat N 2
16 4120005894016 限位螺钉3510300260 Screw N 2
17 4120005894017 螺栓GB/T5783-M8×35-8.8 Screw N 8
18 4120005894018 溢流阀分总成3519001114 Valve Y 3
19 4120005894018 溢流阀分总成3519001114 Valve Y 1
20 4120005894019 单向阀芯3510904062 Valve rod N 2
21 4120005894020 弹簧3510900078 Spring N 4
22 4120005894021 螺塞3510300051 Plug N 2
23 4120005894022 O形密封圈3912881204 Sealing ring N 2
24 4120005894023 O形密封圈0905028N0674 Sealing ring Y 1
25 4120005894024 螺塞3902800200 Plug N 1
26 4120005894025 O形密封圈3510904054 Sealing ring N 1
27 4120005894026 螺塞3510300038 Plug N 1
28 4120005894027 螺堵PCMM10047-2 Plug N 2
29 4120005894028 垫圈OR11.3*2.2* Washer N 2
31 4120005894030 挡圈3510500130 Retaining ring N 1
32 4120005894031 螺母GB/T6172.1-M24 Nut N 1
33 4120005894032 O形密封圈CO0625A Sealing ring N 2
34 4120005894033 阀块CN211000002 Valve block N 1
35 4120005894034 活塞3510300129 Piston N 1
36 4120005894035 弹簧3913581146 Spring N 1
37 4120005894036 垫片（0.5mm）3460500122 Shim N 1
38 4120005894037 螺塞346030082 Plug N 1
39 4120005894038 O形密封圈020114V0894 Sealing ring N 1
40 4120005894039 过渡阀块CN211000013 Valve block N 1
41 4120005894040 螺钉GB/T70.1-M8×65 Screw N 2
42 4120005894041 堵塞3510300086 Plug N 1
43 4120005894042 O形密封圈030924N0552 Sealing ring Y 1
44 4120005894043 单向阀芯3510300035 Valve rod N 2
45 4120005894044 O形密封圈030914N0552 Sealing ring Y 2
46 4120005894045 单向阀螺塞3510300036 Plug N 2
47 4120005894046 活塞帽3510300085A Cover N 1
48 4120005894047 螺钉GB/T73-M5×6 Screw N 1
49 4120005894048 弹簧CN211000047 Spring N 1
50 4120005894049 密封件3510500094 Sealing N 1
51 4120005894050 弹簧座3510300091 Spring seat N 1
52 4120005894051 O形密封圈050701N0552 Sealing ring N 1
53 4120005894052 O形密封圈020219N0552 Sealing ring Y 2
54 4120005894053 垫片（1mm）3510300266-D1 Shim N 1
1 4120006636 多路阀KM300-II-19A Control valve Y 1
2 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
3 29120019991 进油钢管 Pipe Y 1
4 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 2
5 4011001520 螺栓GB5782-M12*65flZnyc-8.8-480 Screw Y 2
6 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8
7 4041000133 直接头LGB120-01414 Nipple Y 5
8 4041000767 O形圈LGB168-11124 O-ring Y 7
9 4190000204 三通接头ET08LOMDA3C Three-way nipple Y 1
10 4041000604 直接头LGB120-01614 Nipple Y 2
11 4041001023 组合接头LGB143-01608 Nipple Y 2
12 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
13 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 3
14 4041001047 组合接头LGB143-01406 Nipple Y 3
15 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 4
16 29120019571 多路阀支架 Bracket Y 1
17 4011001467 螺栓GB5782-M10*80flZnyc-8.8-480 Bolt Y 3
18 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6
19 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 3
20 4011001468 螺栓GB16674.1-M14*35flZnyc-8.8-480 Bolt Y 4
21 4011001432 螺栓GB16674-M10*20flZnyc-8.8-480 Screw N 2
22 29120019601 管夹 Clamp Y 1
23 29120019561 多路阀固定板 Valve plate Y 1
24 29120019611 固定板 Plate Y 1
25 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 2
26 29120020001 多路阀回油钢管 Pipe Y 1
27 4011001355 螺栓GB5782-M12*70flZnyc-8.8-480 Screw Y 4
