Description

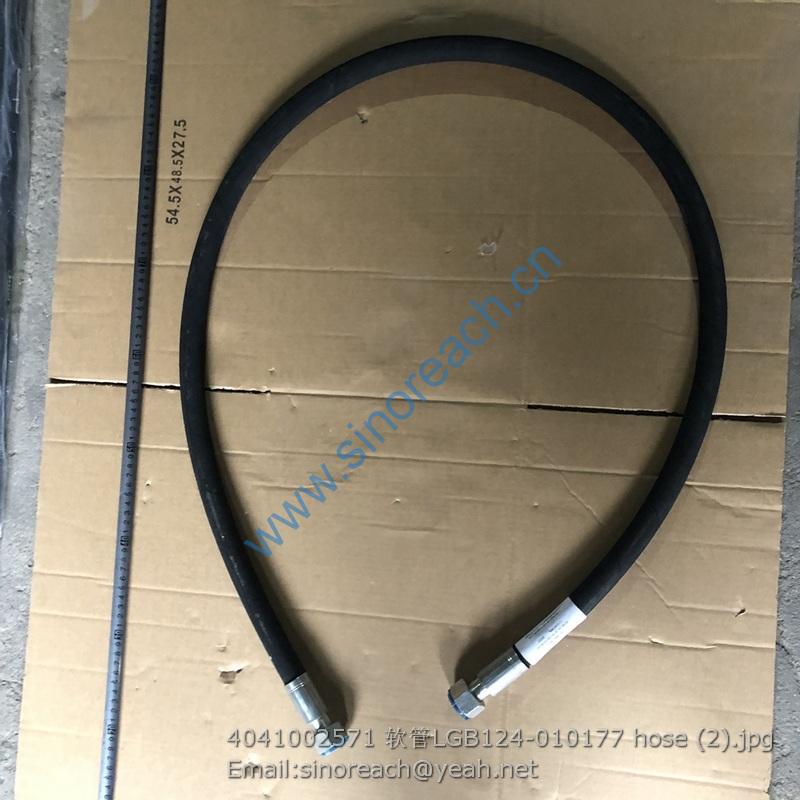

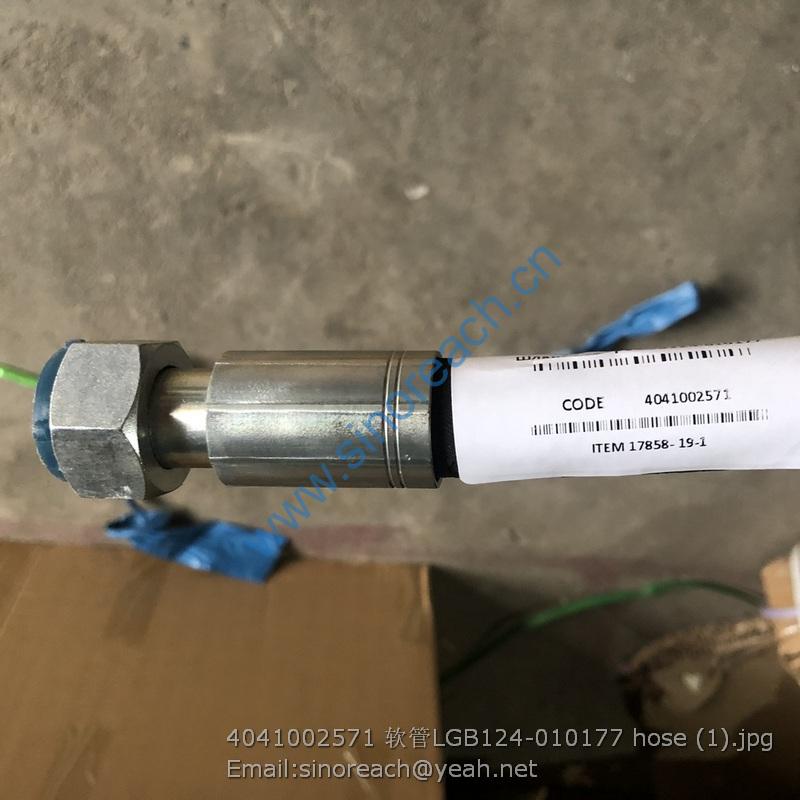

4041002571 LGB124-010177 hose

31 29250013221 挡泥瓦 Front fender N 1
32 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 12
33 29250013231 衬板 Nut plate Y 1
34 29250010051 橡胶板 Plate Y 1
35 11220539 钢管 Steel pipe Y 8
36 11220538 减震垫 Damper mat Y 16
37 29250013711 走线胶套 Rubber sleeve Y 1
38 29250010091 锁定杆 Rod Y 1
39 29250010121 锁定销轴 Pin Y 2
40 29270013901 链条 Chain Y 1
41 29280010021 挂钩 Tensioning hook Y 1
42 29270000081 卡环 Lock ring Y 2
43 29250010081 橡胶板 Rubber plate Y 1
44 29250013251 衬板 Nut plate Y 1
45 29250018241 右灯架 Lamp bracket Y 1
46 4043001456 销轴LGB301-80*170N*320-1A10G Weld pin Y 2
47 29250012911 走线胶套 Rubber sleeve Y 2
48 29250013211 走线胶套 Rubber sleeve Y 2

1 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10
2 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 10
3 29270017471 支架 Bracket N 1
4 29250000291 通油螺栓 Bolt Y 5
5 29250000301 垫片 Shim Y 15
6 4043000374 垫片LGB303-45*80*1 Shim Y 4
7 29270020201 油管 Lubricating pipe Y 1
8 29270020221 油管 Lubricating pipe Y 1
9 29270009101 走线胶套 Rubber sleeve Y 2
10 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
11 29270010071 上铰接销 Pin Y 1
12 29270010081 防尘圈 Sealing ring Y 2
13 4015000270 挡圈GB893.1-120-65Mn Retaining ring Y 2
14 4021000243 关节轴承GB9163-GE80ES Spherical plain bearing Y 1
15 29270009421 塑料塞 Plastic plug Y 2
16 29270010881 下铰接销 Pin Y 1
17 29270010131 套 Bushing Y 2
18 4030000260 旋转轴唇形密封圈GB9877.1-B100*125*12 Sealing ring Y 2
19 4011001316 螺栓GB16674.1-M12*120flZnyc-8.8-480 Screw Y 8
20 29270010181 盘 Flange Y 1
21 29270010161 垫片 Shim Y 1
22 29270010151 垫片 Shim Y 2
23 29270010171 垫片 Shim Y 1
24 4021000244 滚动轴承GB297-33216 Roller bearing Y 2
25 29270010141 盘 Flange Y 1
26 4013000385 螺母GB6177.1-M12flZnyc-10-480 Nut Y 8
27 29270010891 套 Grommet Y 1
28 29270010241 垫片 Shim Y 1
29 29270010251 垫片 Shim Y 1
30 29270010231 垫片 Shim Y 1

31 29270010221 垫片 Shim Y 1
32 29270010261 盘 Flange Y 1
33 4011001328 螺栓GB5783-M16*50flZnyc-8.8-480 Screw Y 4
34 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 8
35 4011001267 螺栓GB5782-M16*90flZnyc-8.8-480 Screw Y 4
36 29270010271 转向销轴 Pin Y 2
37 4043001044 卡子胶条LGB320-U180 Sealing strip Y 1
38 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 4
39 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4
40 29270012871 右盖板 Plate Y 1
41 29270017631 油管 Lubricating pipe N 2
42 4190001829 缓冲器 Absorber Y 2
43 29270014461 油管 Lubricating pipe Y 1
44 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 16
45 4011001304 螺栓GB5783-M10*45flZnyc-8.8-480 Screw Y 8
46 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8
47 29270012232 左盖板 Cover plate Y 1
48 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 4
49 4013000020 螺母GB6170-M20EpZn-8 Nut Y 4
50 4011000220 螺栓GB5783-M20*55EpZn-8.8 Bolt Y 4
51 29250014121 接头 Nipple Y 5
52 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 6
53 4015000035 垫圈GB93-6-65Mn Spring washer Y 2
54 29250000311 管夹 Clamp Y 1
55 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 2
