Description

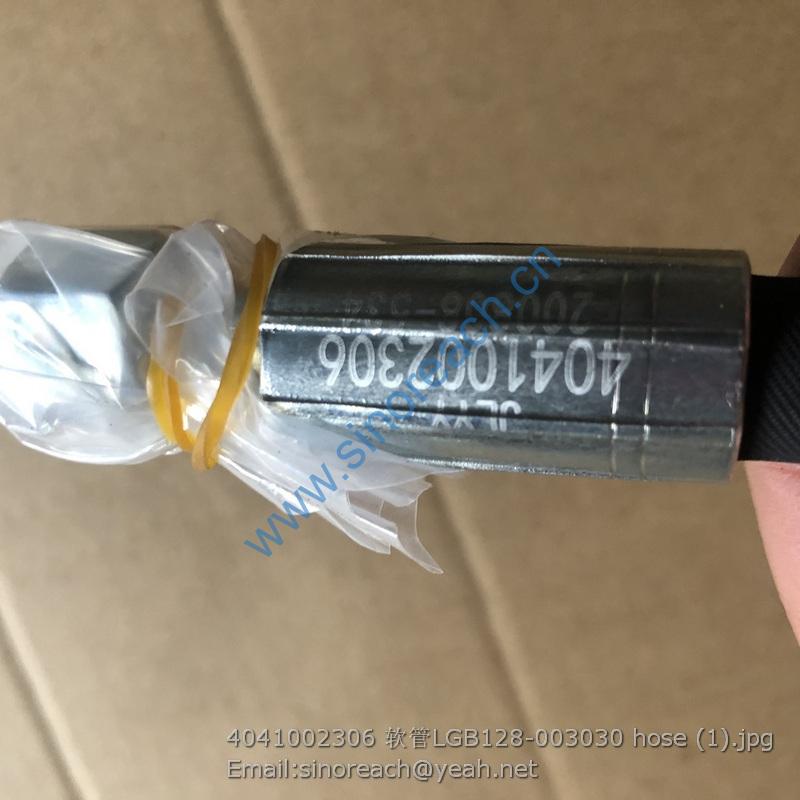

4041002306 LGB128-003030 hose SDLG



1 4041002113 软管LGB127-204165 Hose Y 2
2 4041000604 直接头LGB120-01614 Nipple Y 2
3 4041000767 O形圈LGB168-11124 O-ring Y 4
4 4041000133 直接头LGB120-01414 Nipple Y 2
5 4014000527 螺钉GB70.1-M8*45flZnyc-8.8-480 Screw Y 2
6 4015000036 垫圈GB93-8-65Mn Spring washer Y 2
7 4120001741 液压锁BQ2201-7E Check valve Y 1
8 29180015041 胶管A Hose assembly Y 1
9 29180015051 胶管B Hose assembly Y 1
10 29180012921 隔板接头 Nipple Y 1
11 4013000380 螺母GB6173-M14*1.5flZnyc-05-480 Nut Y 2
12 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 2
13 29180012391 隔板接头 Nipple Y 1
14 4041002306 软管LGB128-003030 Hose assembly Y 1
15 4041002305 软管LGB128-003041 Hose assembly Y 1
16 4011001244 螺栓GB16674-M12*40flZnyc-8.8-480 Screw Y 4
17 4120004913 双杆缸HSGF-50*30*135-460 Hydraulic cylinder Y 1
18 29180012441 调整垫片 Shim Y 4
19 29180012451 调整垫片 Shim Y 4

31 4011000770 螺栓GB5782-M12*30EpZn-8.8 Screw Y 4
32 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4
33 29010000041 螺栓 Screw Y 2
34 29220000811 垫圈 Washer Y 4
35 29220000821 三通管 Three-way nipple Y 1
36 29220001241 加力泵接头块 Nipple Y 2
37 29220001231 加力泵管接头 Bolt Y 2
38 4030000551 O形圈 O-ring Y 4
39 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 8
40 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 4
41 4120000675 加力泵LG22-JLB Air cylinder N 2
42 29010000031 管夹 Clamp Y 1
43 29220010401 后桥左油管 Brake pipe Y 1
44 29220014941 储气罐 Air tank Y 1

1 4120001985006 塑料堵盖HP3.5-40-41 M12*1.2 Plastic plug Y 1
2 4120000675503 端盖 HP3.5-90C-03 Cover Y 1
3 4120000675504 密封件包 Sealing kit Y 1
4 4120000675505 油缸 HP3.5-90C-01B Cylinder Y 1
5 4014000055 螺钉GB70.1-M12*30EpZn-8.8 Screw Y 1
6 4120000675506 油缸活塞头 HP3.5-90C-02A-02 Brake piston Y 1
7 4120001985010 阀杆 HP3.5-40-04 Valve rod Y 1
8 4120001985011 阀门 HP3.5-40-05 Valve Y 1
9 4120001985012 进油接头HP3.5-40-11 Nipple Y 1
10 4120001985013 进油阀衬套 HP3.5-40-08A Bushing Y 1
11 4120001985014 进油阀弹簧HP3.5-40-06 Spring Y 1
12 4120001985015 进油阀弹簧座HP3.5-40-07 Spring seat Y 1
13 4015000282 垫圈GB93-3-65Mn Washer Y 1
14 4014000581 P-螺钉GB818-M3*5EpZn-4.8 Screw Y 1
15 4120001985016 油杯滤网HP3.5-40-16B Strainer Y 1
16 4120001985017 油杯膜片HP3.5-40-14 Diaphragm Y 1
17 4120001985018 油杯盖HP3.5-40-15A M85*2 Cover Y 1
18 4120001985019 螺母M27*1.5 Nut Y 1
19 4120000675504 密封件包 Sealing kit Y 2
20 4120001985020 油杯体HP3.5-40-17FT Cup Y 1
21 4120000675507 连接圈HP3.5-90-04D Attaching frame Y 1
22 4120001985027 呼吸螺栓总成HP.FC-00 Bolt Y 1
23 4120000675508 汽缸体HP3.5-90-07 Cylinder block Y 1
24 4015000485 P-垫圈GB7244-8 Washer Y 6
25 4011000632 螺栓GB5783-M8*16-8.8 Bolt Y 6
26 4120000675504 密封件包 Sealing kit Y 1
27 4016000377 P-销GB119.2-3*8 Pin Y 1
28 4013000428 P-螺母GB810-M45*1.5EpZn-8 Nut Y 1
29 4120000675509 汽缸回位弹簧HP3.5-90-05D Spring Y 1
30 4120000675504 密封件包 Sealing kit Y 1
