Description

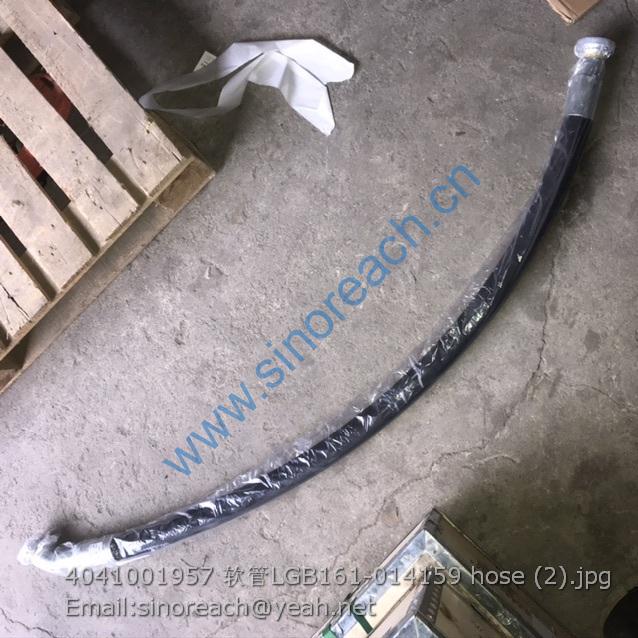

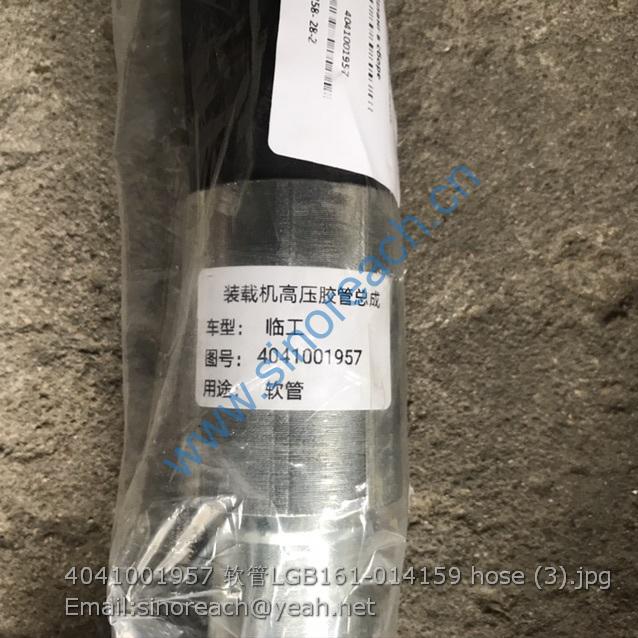

4041001957 LGB161-014159 hose sdlg
1 4041001957 软管LGB161-014159 Hose assembly Y 1
2 4011001242 螺栓GB16674-M12*35flZnyc-8.8-480 Screw N 16
3 4041000011 分体法兰LGB117-314650 Flange half Y 4
4 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 4
5 29120019981 橡胶块支架 Bracket Y 1
6 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 5
7 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4
8 29120019511 橡胶管夹-50 Clamp Y 2
9 29120019531 压板 Plate Y 1
10 4011000817 螺栓GB5782-M10*100EpZn-8.8 Screw Y 2
11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4
12 29120023671 多路阀进油胶管 Hose assembly Y 1
13 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8
14 4041000056 分体法兰LGB117-312550 Flange half Y 2
15 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
16 29120016351 固定板 Anchor plate Y 2
17 29120016741 管夹 Clamp Y 4
18 4011001303 螺栓GB16674.1-M8*90flZnyc-8.8-480 Screw Y 4
19 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
20 29120019621 先导管支架 Bracket Y 1
21 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4
22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 7
23 4190000056 扎丝LG13-ZS3*200 Cable tie Y 5
24 4190001832 扎丝RTGB-200ST Cable tie Y 5
25 26310002061 自扎帆布套 Tarpaulin cover Y 1
26 29120022901 油路块总成 Block Y 1
27 4041002098 软管LGB163-014103 Hose Y 1
28 4041000767 O形圈LGB168-11124 O-ring Y 1
29 4041000604 直接头LGB120-01614 Nipple Y 1
30 4041001023 组合接头LGB143-01608 Nipple Y 1
31 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1
32 4041000766 直接头LGB120-01818 Nipple Y 1
33 4041000768 O形圈LGB168-11524 O-ring Y 1
34 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1
35 4041001063 组合接头LGB143-01810 Nipple Y 1
36 4041002505 软管LGB164-005115 Hose assembly Y 1
37 29120020071 弯板 Plate Y 1
38 4041001362 软管LGB124-003280 Hose assembly Y 1
39 4041001554 软管LGB125-003070 Hose assembly Y 1
40 4041002512 软管LGB124-003218 Hose assembly Y 1
41 4041002513 软管LGB164-004220 Hose assembly Y 1
42 4041001858 软管LGB124-003210 Hose Y 2
1 29120029501 先导阀PCL403-35-B部装总成 Control lever assembly N 1
2 29120029511 液压操纵主管路和先导管路 Hydraulic control assembly N 1
3 29120029491 多路阀KM300-II-19A部装总成 Control valve assembly N 1
4 4041000767 O形圈LGB168-11124 O-ring Y 5
5 4041000604 直接头LGB120-01614 Nipple Y 2
6 4041001023 组合接头LGB143-01608 Nipple Y 7
7 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 8
8 4041000678 软管LGB127-004170 Hose Y 1
9 4041002506 软管LGB124-004188 Hose assembly Y 1
10 29120015081 接头 Nipple Y 2
11 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
12 29120016021 固定板 Anchor plate Y 1
13 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
14 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4
15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6
16 4041001959 软管LGB124-004039 Hose assembly Y 1
17 4041001956 软管LGB128-004029 Hose assembly Y 1
18 4041001961 软管LGB127-004132 Hose assembly Y 1
19 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1
20 4041000774 螺塞LGB135-01422 Plug Y 3
21 4041001521 组合接头LGB143-11608 Nipple Y 1
22 29120007651 接头 Nipple Y 1
23 29120014931 垫圈 Washer Y 2
24 4120005063 压力选择阀SF8-D Valve Y 1
25 4011001262 螺栓GB5782-M10*55flZnyc-8.8-480 Bolt Y 2
26 29120007661 接头 Nipple Y 1
27 4041001063 组合接头LGB143-01810 Nipple Y 1
28 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1
29 4041001960 软管LGB164-405088 Hose assembly Y 1
30 4120005031 接头GZ10LCF Nipple Y 1
31 4120003065 梭阀WV-10 Shuttle valve Y 1
32 4190000056 扎丝LG13-ZS3*200 Cable tie Y 3
33 4190001832 扎丝RTGB-200ST Cable tie Y 3
34 4041002020 软管LGB128-404044 Hose assembly Y 1
35 4041000766 直接头LGB120-01818 Nipple Y 1
36 4041000768 O形圈LGB168-11524 O-ring Y 1
37 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
