Description

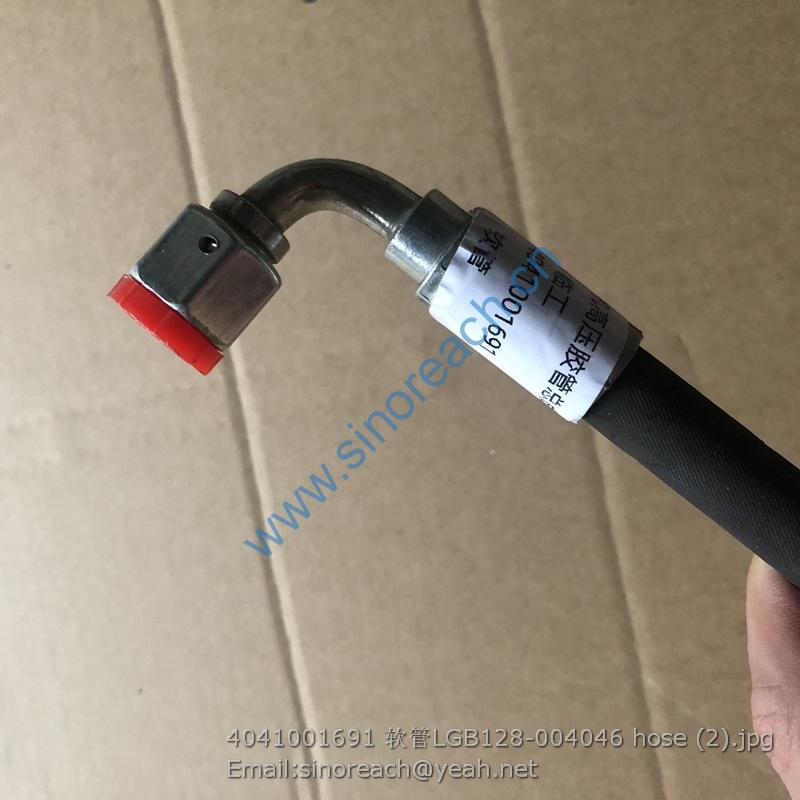

4041001691 LGB128-004046 hose SDLG
31 29220016661 直接头 Nipple Y 1
32 4120003758 气制动阀LY60E Brake valve Y 1
33 4120003757 制动灯开关YK209KLA Pressure switch Y 1
34 29220017601 直接头 Nipple Y 3
35 4041002476 软管LGB146-206175 Hose assembly Y 1
36 4041002424 软管LGB145-202150 Hose assembly Y 1
37 4190001839 扎丝LG13-ZS4*160 Cable tie Y 2
38 29220019881 直接头M10-M12 Nipple Y 1
39 29220009121 垫圈 Washer Y 3
40 4120000741 开关阀LG09-KGF Valve Y 1
41 4014000088 螺钉GB818-M5*16EpZn-4.8 Screw Y 2
42 29220009111 螺栓 Bolt Y 1
43 4041001043 软管LGB145-002136 Hose assembly Y 1
44 29220008451 直接头 Nipple Y 2
45 29220020871 软管 Hose assembly Y 1
46 29220020461 干燥器模块 Airer assembly N 1
47 4041001234 软管LGB146-205086 Hose assembly Y 1
48 29220018641 压块 Block Y 2
49 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4
50 29220017701 加力泵至后桥油管 Hose Y 1
51 29220017521 钢管 Brake pipe Y 1
52 29220020171 后桥右油管 Brake pipe Y 1
1 4120006350001 密封件包 Sealing ring kit Y 1
2 4120006350001 密封件包 Sealing ring kit Y 2
3 4120006350001 密封件包 Sealing ring kit Y 1
4 4120006350001 密封件包 Sealing ring kit Y 1
5 4120006350001 密封件包 Sealing ring kit Y 1
6 4120006350002 油杯LG40B-06 Cup Y 1
7 4120006350003 回位弹簧LG40A-04 Return spring Y 1
4120006350
1 4120001985006 塑料堵盖HP3.5-40-41 M12*1.2 Plastic plug Y 1
2 4120000675503 端盖 HP3.5-90C-03 Cover Y 1
3 4120000675504 密封件包 Sealing kit Y 1
4 4120000675505 油缸 HP3.5-90C-01B Cylinder Y 1
5 4014000055 螺钉GB70.1-M12*30EpZn-8.8 Screw Y 1
6 4120000675506 油缸活塞头 HP3.5-90C-02A-02 Brake piston Y 1
7 4120001985010 阀杆 HP3.5-40-04 Valve rod Y 1
8 4120001985011 阀门 HP3.5-40-05 Valve Y 1
9 4120001985012 进油接头HP3.5-40-11 Nipple Y 1
10 4120001985013 进油阀衬套 HP3.5-40-08A Bushing Y 1
11 4120001985014 进油阀弹簧HP3.5-40-06 Spring Y 1
12 4120001985015 进油阀弹簧座HP3.5-40-07 Spring seat Y 1
13 4015000282 垫圈GB93-3-65Mn Washer Y 1
14 4014000581 P-螺钉GB818-M3*5EpZn-4.8 Screw Y 1
15 4120001985016 油杯滤网HP3.5-40-16B Strainer Y 1
16 4120001985017 油杯膜片HP3.5-40-14 Diaphragm Y 1
17 4120001985018 油杯盖HP3.5-40-15A M85*2 Cover Y 1
18 4120001985019 螺母M27*1.5 Nut Y 1
19 4120000675504 密封件包 Sealing kit Y 2
20 4120001985020 油杯体HP3.5-40-17FT Cup Y 1
21 4120000675507 连接圈HP3.5-90-04D Attaching frame Y 1
22 4120001985027 呼吸螺栓总成HP.FC-00 Bolt Y 1
23 4120000675508 汽缸体HP3.5-90-07 Cylinder block Y 1
24 4015000485 P-垫圈GB7244-8 Washer Y 6
25 4011000632 螺栓GB5783-M8*16-8.8 Bolt Y 6
26 4120000675504 密封件包 Sealing kit Y 1
27 4016000377 P-销GB119.2-3*8 Pin Y 1
28 4013000428 P-螺母GB810-M45*1.5EpZn-8 Nut Y 1
29 4120000675509 汽缸回位弹簧HP3.5-90-05D Spring Y 1
30 4120000675504 密封件包 Sealing kit Y 1
