Description

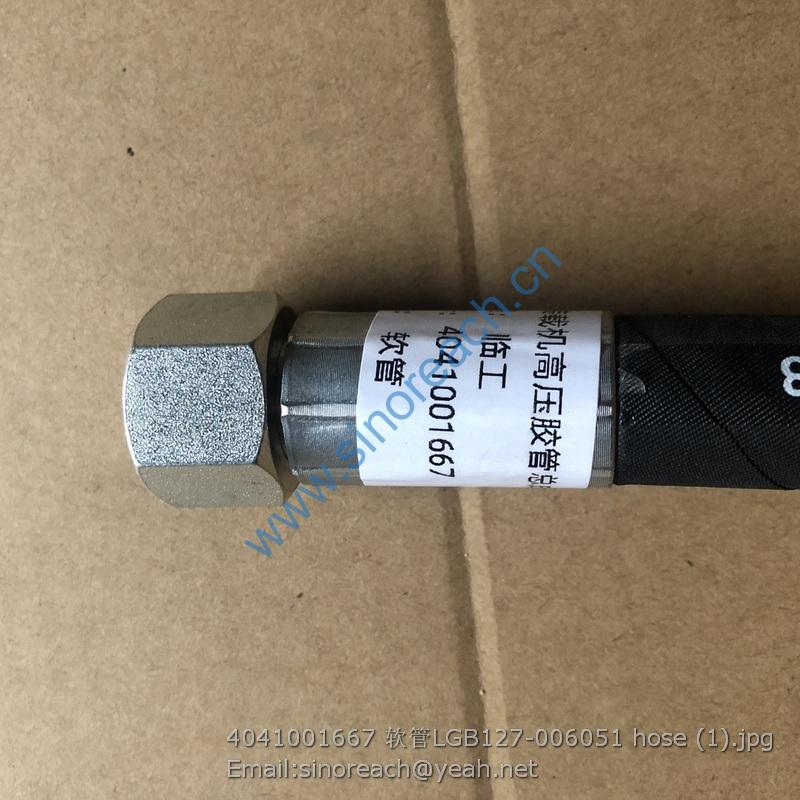

4041001667 LGB127-006051 hose SDLG
1 4120005995 左转向油缸HSGL-90*50*480-870C Steering cylinder Y 1
2 4120005996 右转向油缸HSGL-90*50*480-870C Steering cylinder Y 1
3 29210010181 转向缸小腔进油胶管 Hose assembly Y 2
4 29210010191 转向缸大腔进油胶管 Hose assembly Y 2
5 4041000143 直接头LGB120-02222 Nipple Y 6
6 4041000771 O形圈LGB168-11924 O-ring Y 6
7 29210010211 分流块 Block Y 1
8 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
9 4041000508 螺塞LGB135-01824 Plug Y 4
10 4041000768 O形圈LGB168-11524 O-ring Y 4
11 4041002511 软管LGB127-006048 Hose assembly Y 1
12 4041001667 软管LGB127-006051 Hose Y 1
1 4120005995001 缸筒总成-左24A139110 Cylinder tube Y 1
2 4120005995002 活塞杆总成24A114170 Piston rod Y 1
3 4120006629003 缸盖24C105110 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120006629008 挡圈-U形圈24E005025 Retaining ring Y 1
9 4120005996005 密封件-防尘24D205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120005996006 O形圈24K10850A Sealing ring N 1
12 4120005996007 挡圈-O形圈24M10900D Sealing ring N 1
13 4120006118013 O形圈24K309001 Sealing ring N 1
14 4120006629010 活塞24C106100 Piston Y 1
15 4120006118016 密封件-活塞24P209002 Sealing ring N 1
16 4120005996008 O形圈24K10500A Sealing ring N 1
17 4120005996009 挡圈-O型圈24M30550A Sealing ring N 1
18 4120006118017 支承环24G209041 Sealing ring N 2
19 4120006603018 钢球24U004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120005995003 密封件包 Sealing kit Y 1
1 29220009021 接头块 Block Y 8
2 4030000552 O形圈 O-ring Y 16
3 29220001251 制动器管接头 Nipple Y 4
4 29220020451 桥油管 Brake pipe Y 4
5 29220009011 管接头 Nipple Y 4
6 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 1
7 29220020151 后桥左油管 Brake pipe Y 1
8 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 3
9 29220000821 三通管 Three-way nipple Y 1
10 29010000041 螺栓 Screw Y 2
11 29220000811 垫圈 Washer Y 10
12 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 4
13 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4
14 29220019831 储气罐 Air reservoir Y 1
15 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8
16 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 4
17 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4
18 4120006350 加力泵LG22-JLB-A Air cylinder N 2
19 29220001241 加力泵接头块 Nipple Y 2
20 29220001231 加力泵管接头 Bolt Y 2
21 4030000551 O形圈 O-ring Y 4
22 4041001945 软管LGB153-202370 Hose Y 1
23 29010000031 管夹 Clamp Y 3
24 29220020111 前桥左油管 Brake pipe Y 1
25 29220011131 固定板 Anchor plate Y 1
26 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1
27 29220009031 三通接头 Three-way nipple Y 2
28 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 6
29 29220020131 前桥右油管 Brake pipe Y 1
30 4041001232 软管LGB145-205200 Hose assembly Y 1
