Description

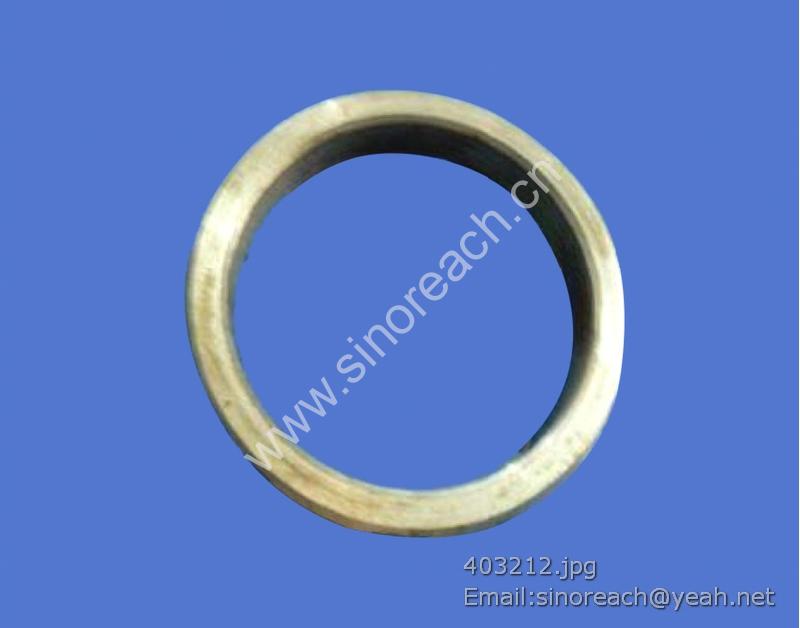

403212 LG853.03.01.02-002 Adjusting washer for LONKING spare part

LG30F.10Ⅰ-006 端盖 End cover 1 310008D
GB/T5782 螺栓M20×30 Bolt M20×30 1
GB/T93 垫圈20 Washer 20 1
GB/T5782 螺栓M12×25 Bolt M12×25 4
LG30F.10Ⅰ-007 下铰接销 Lower articulating pin 1 310009D
GB/T297 轴承32212 Bearing 32212 4 GB297-84 7512E
LG30F.10Ⅰ-008 调整垫 Adjusting shim 1set 310011D
LG30F.10Ⅰ-009 轴套 Shaft sleeve 1 310012D
LG853.10-014 卡板 Retainer 2
LG853.10-015 转向销 Steering pin 4 410007A
LG30F.10Ⅰ.06 上铰接销 Upper articulating pin 1 310013-014D
LG30F.10Ⅰ-010 调整垫 Adjusting shim 2sets 310016D
LG30F.10Ⅰ-011 轴承盖 Bearing cover 2 310017D
HG4-692-67 油封80×70×12 Oil seal 80×70×12 2

LG30F.11.04 摇臂 Tilt arm 1 311400D
LG30F.11.03 动臂 Lift arm 1 311300D
LG30F.11.02 拉杆 Poll rod 1 311200D
LG30F.11.01 铲斗 Bucket 1 LG30F.11100A
GB/T5783 螺栓M12×35 Bolt M12×35 32
GB/T93 垫圈12 Washer 12 32
GB/T1152-79 油杯M10×1 Oil cup M10×1 8
LG30F.11.05 铲斗下销轴 Bucket lower pin 2 511004-005
LG843.11-007 动臂下轴套 Lift arm lower shaft sleeve 4 511003
LG843.11-005 摇臂支承轴套 Tilt arm support shaft sleeve 2 311011D
LG30F.11.06 摇臂支承轴 Tilt arm support shaft 1 311010D
LG843.11-004 摇臂隔离套 Tilt arm separating sleeve 1 311013D
LG30F.11-001 动臂缸上销轴 Lift cylinder upper pin 2 511006-07
LG853.10-012 套 Sleeve 2
LG30F.11.07 摇臂端销轴 Tilt arm end pin 3 311003D
LG843.11-002 拉杆轴套 Pull rod shaft sleeve 2 311009D
